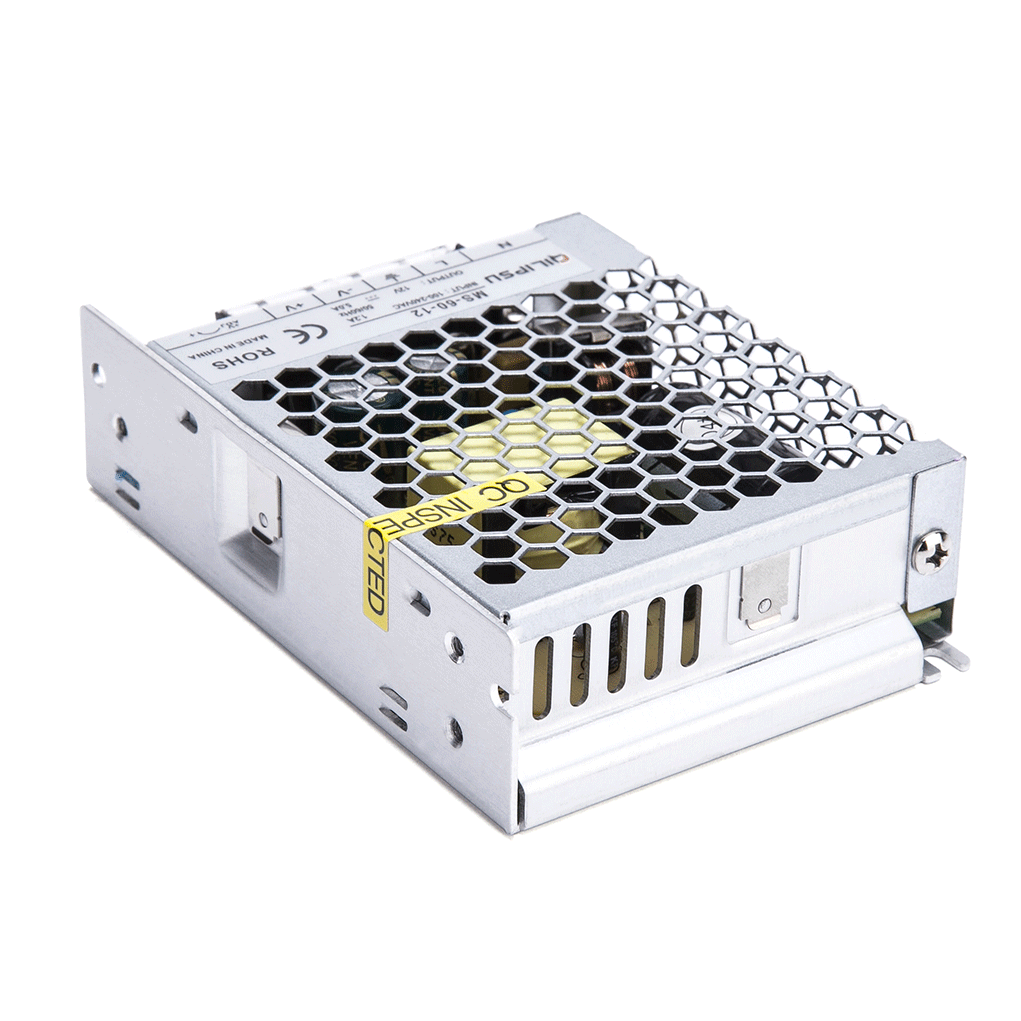

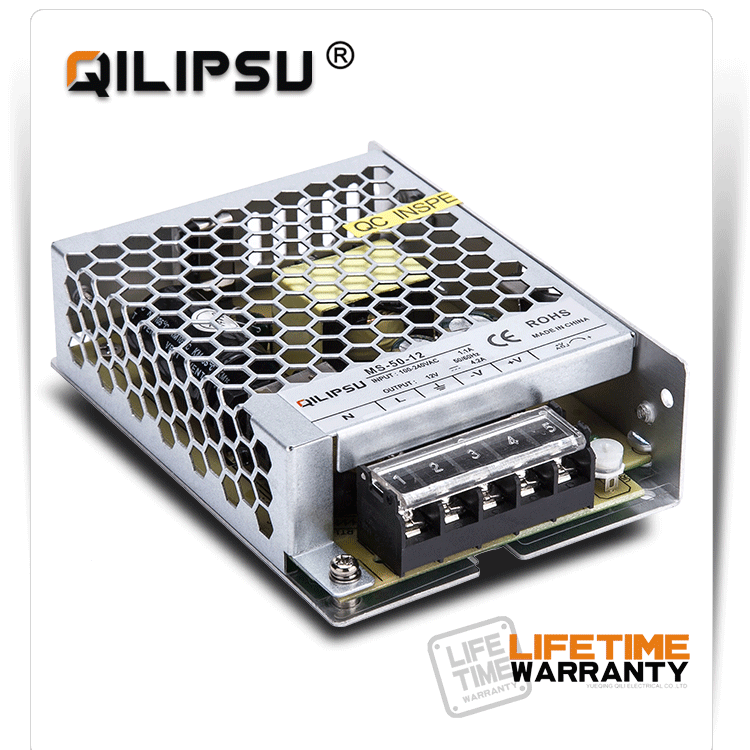

| Name: | MS-50-12 12V 4.2A 50W MINI POWER SUPPLY |
|---|---|
| Output Power | 50W |
| Output Voltage | 12V |
| Output AMP | 4.2A |
| AC Input Voltage range | 90~265VAC 47~63Hz |
| Warranty | Lifetime Warranty |
| Certificate | CE LVD EMC ROHS |
| Protection | Over Load |
Product Description
DOWNLOAD
LIFETIME WARRANTY 220v ac to dc 12v 4.2a 50w CCTV
switching power supply 24v 2.1a LED power supply SMPS
| MODEL | MS-50-5 | MS-50-12 | MS-50-24 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 24V |
| VOLTAGE TOLERANCE | ±2% | ±2% | ±2% | |
| RATED CURRENT | 10A | 4.2A | 2.1A | |
| CURRENT RANGE | 0-10A | 0~4.2A | 0~2.1A | |
| RATED POWER | 50W | 50.4W | 50.4W | |
| RIPPLE & NOISE | 100mVp-p | 120mVp-p | 180mVp-p | |
| DC VOLTAGE ADJ. RANGE | ±10% | ±10% | ±10% | |
| SETUP, RISE, HOLD TIME | 800ms,30ms,20ms/230VAC,1200ms,30ms,20ms/115VAC | |||
| INPUT | VOLTAGE RANGE | 100~240VAC 47~63Hz,135~373VDC | ||
| AC CURRENT | 1.2A/115VAC 0.6A/230VAC | |||
| EFFICIENCY | 80% | 85% | 86% | |
| INRUSH CURRENT | Cold start 45A/230VAC | |||
| LEAKAGE CURRENT | <1mA/240VAC | |||
| PROTECTION | OVER LOAD | Rated output power110%~135%Start overload protection | ||
| Protection type:hiccup mode,auto-recovery after fault condition is removed | ||||
| ENVIRONMENT | WORKING TEMP, HUMIDITY | -10℃~+50℃;20%~90%RH(Please refer to“derating curve”) | ||
| STORAGE TEMP, HUMIDITY | -25℃~+85℃;10%~95%RH Non-condensing | |||
| WITHSTAND VIBRATION | 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes | |||
| SAFETY | WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |||
| FIT STANDARD | SAFETY STANDARD | Compliance to UL1012,UL60950-1,GB4943 | ||
| EMC STANDARD | Compliance to EN55022,EN61000-3-2,CLASSA | |||
| OTHERS | DIMENSION | 111*78*30(L*W*H) | ||
| WEIGHT | 0.22kg | |||
| MTBF | 355K hrs min. MIL-HDBK-217F(25℃) | |||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. | |||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | ||||
