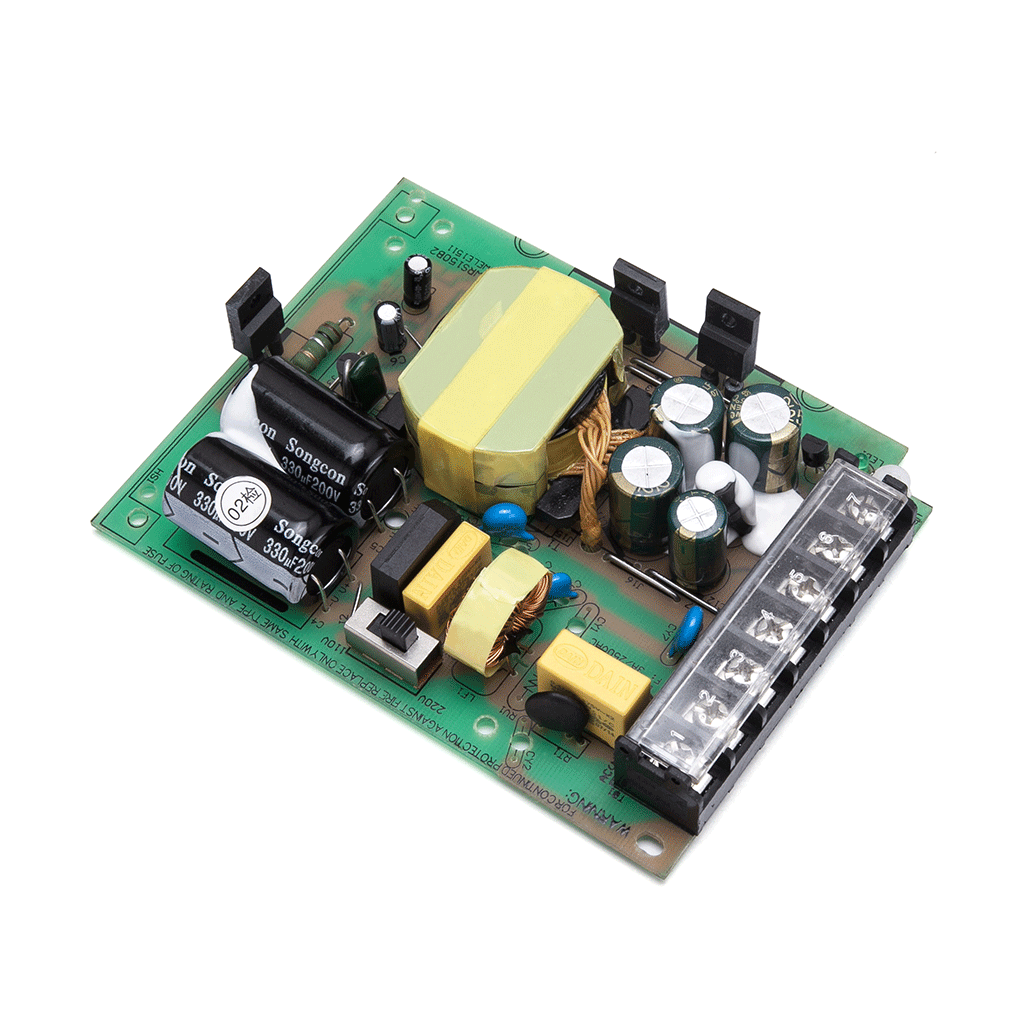

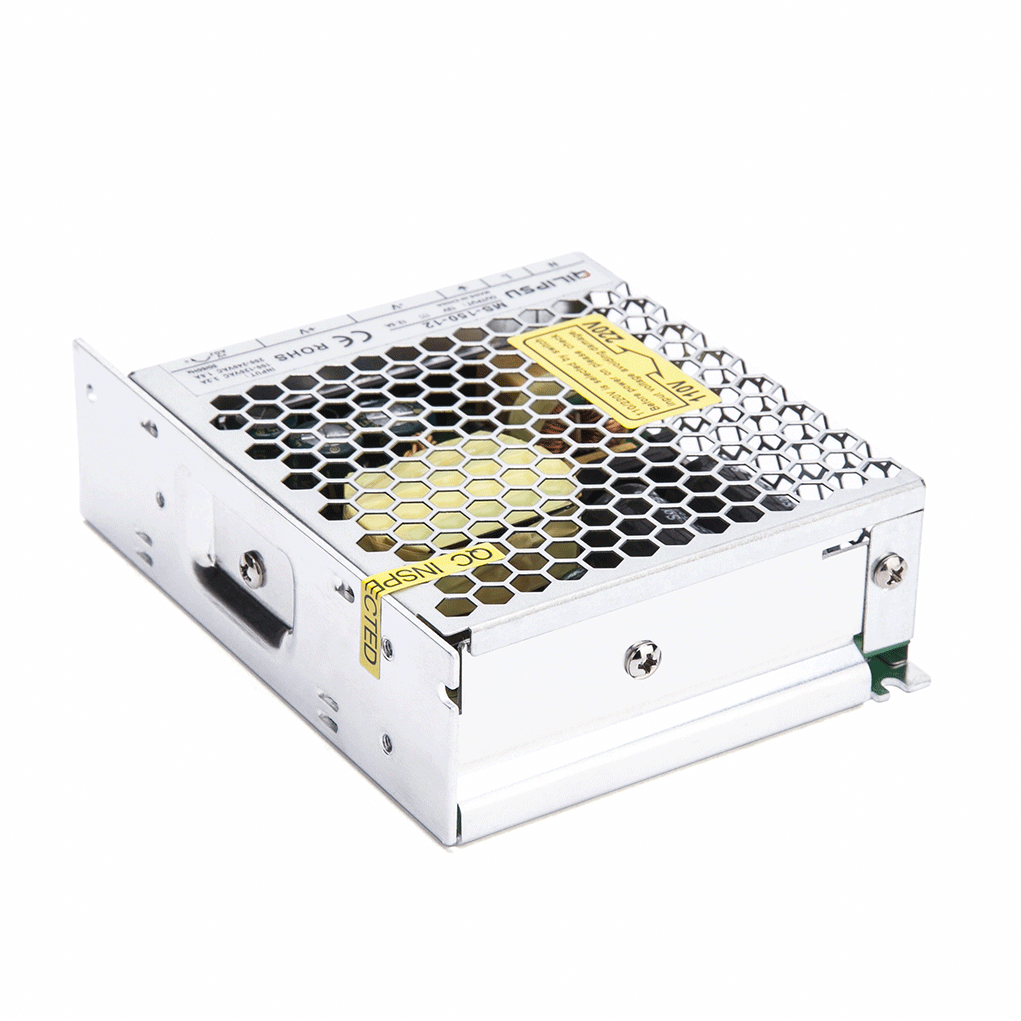

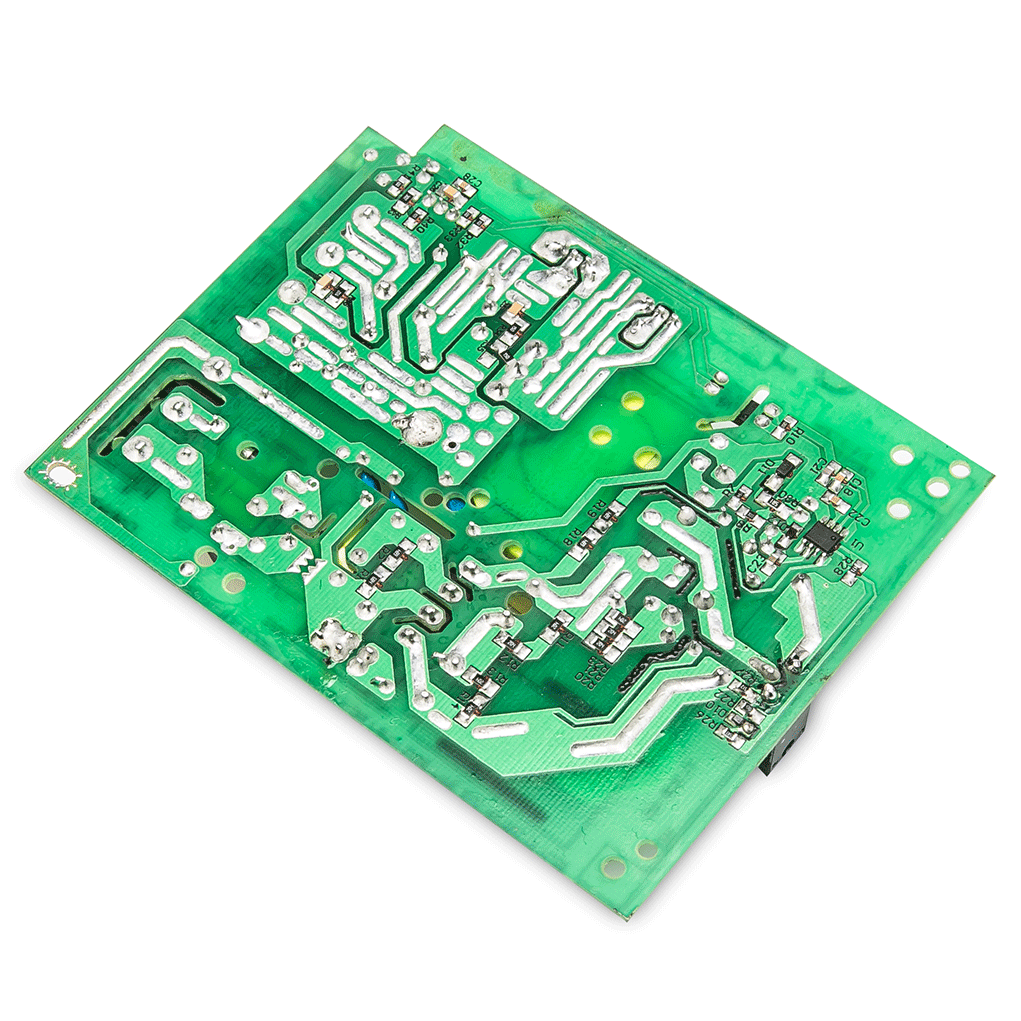

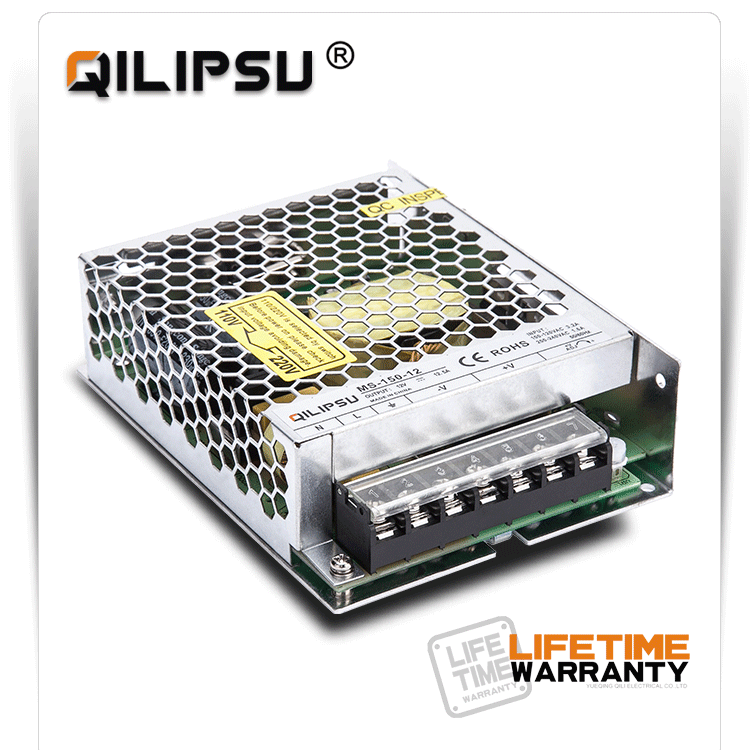

LIFETIME WARRANTY MINI 12V  CCTV switching power supply

150W SMPS 220V ac to 12V dc LED power supply



MODEL		MS-150-5	MS-150-12	MS-150-24
OUTPUT	DC VOLTAGE	5V	12V	24V
	VOLTAGE TOLERANCE	±2%	±2%	±2%
	RATED CURRENT	30A	12.5A	6.3A
	CURRENT RANGE	0-30A	0~12.5A	0~6.3A
	RATED POWER	150W	150W	151.2W
	RIPPLE & NOISE	180mVp-p	180mVp-p	200mVp-p
	DC VOLTAGE ADJ. RANGE	±10%	±10%	±10%
	SETUP, RISE, HOLD TIME	800ms, 30ms, 24ms / 230VAC
INPUT	VOLTAGE RANGE	100~120VAC/200~240VAC(selected by switch) 47~63Hz,255~373VDC
	AC CURRENT	3.2A/115VAC     1.6/230VAC
	EFFICIENCY		86%	87%
	INRUSH CURRENT	Cold start 55A/230VAC
	LEAKAGE CURRENT	<2.0mA/240VAC
PROTECTION	OVER LOAD	Rated output power110%~135%Start overload protection
		Protection type:hiccup mode,auto-recovery after fault condition is removed
ENVIRONMENT	WORKING TEMP, HUMIDITY	-10℃~+50℃;20%~90%RH(Please refer to“derating curve”)
	STORAGE TEMP,  HUMIDITY	-25℃~+85℃;10%~95%RH Non-condensing
	WITHSTAND VIBRATION	10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
FIT STANDARD	SAFETY STANDARD	Compliance to UL1012,UL60950-1,GB4943
	EMC STANDARD	Compliance to EN55022,EN61000-3-2,CLASSA
OTHERS	DIMENSION	129*98*38mm(L*W*H)
	WEIGHT	0.46kg
	MTBF	410K hrs min. MIL-HDBK-217F(25℃)
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
	3. Tolerance : includes set up tolerance, line regulation and load regulation.
