Name:MS-25-12 12V 2.1A 25W MINI POWER SUPPLY
Output Power25W
Output Voltage12V
Output AMP2.1A
AC Input Voltage range100~240VAC 47~63Hz,135~373VDC
WarrantyLifetime Warranty
CertificateCE LVD EMC ROHS
ProtectionOver Load
Product Description

DOWNLOAD






LIFETIME WARRANTY 220v ac to dc 12v 2.1a 25w CCTV switching

 power supply 24v 1.1a LED power supply SMPS



MODEL MS-25-12 MS-25-15 MS-25-24
OUTPUT DC VOLTAGE  12V 15V 24V
VOLTAGE TOLERANCE  ±1% ±1% ±1%
RATED CURRENT 2.1A 1.7A 1.1A
CURRENT RANGE 0-2.1A 0~1.7A 0~1.1A
RATED POWER 24W 25.5W 26.4W
RIPPLE & NOISE 100mVp-p 120mVp-p 150mVp-p
DC VOLTAGE ADJ. RANGE -9%~+10% ±10% ±10%
SETUP, RISE, HOLD TIME 200ms,50ms,20ms/230VAC
INPUT VOLTAGE RANGE 100~240VAC 47~63Hz,135~373VDC
AC CURRENT 0.55A/115VAC 0.35A/230VAC
EFFICIENCY 81% 82% 83%
INRUSH CURRENT Cold start 30A/230VAC
LEAKAGE CURRENT <0.5mA/240VAC
PROTECTION OVER LOAD Rated output power110%~135%Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
ENVIRONMENT WORKING TEMP, HUMIDITY -10℃~+60℃;20%~90%RH(Please refer to“derating curve”)
STORAGE TEMP,  HUMIDITY -20℃~+85℃;10%~95%RH Non-condensing
WITHSTAND VIBRATION 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
FIT STANDARD SAFETY STANDARD Fit UL1012
EMC STANDARD Fit EN55022,CLASSA

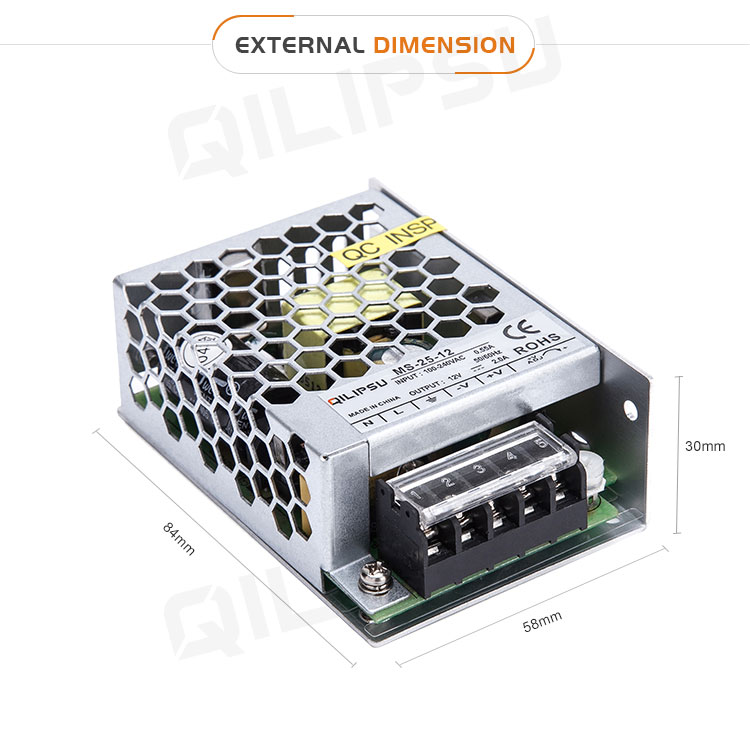

OTHERS DIMENSION 84*58*30(L*W*H)
WEIGHT 0.15kg
MTBF 405K hrs min. MIL-HDBK-217F(25℃)
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
