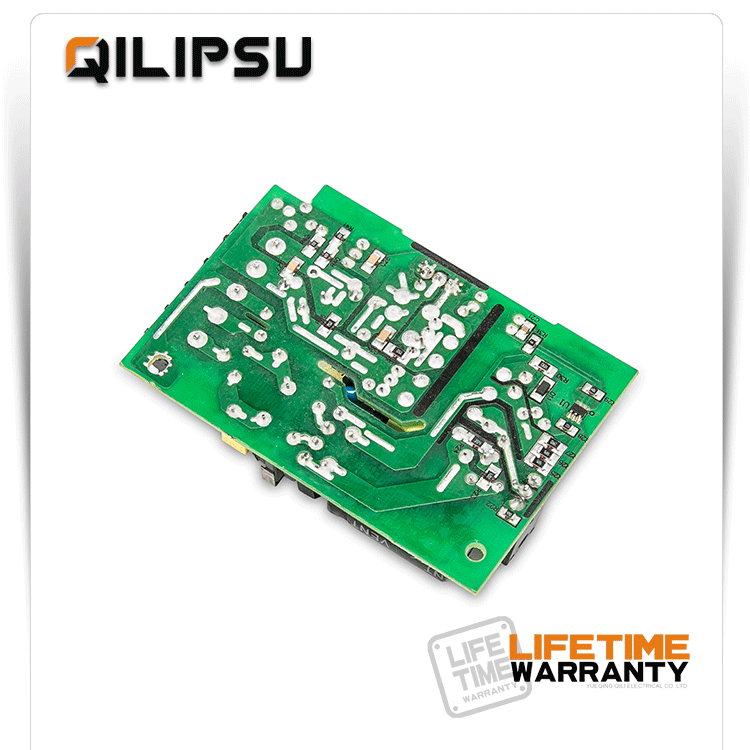

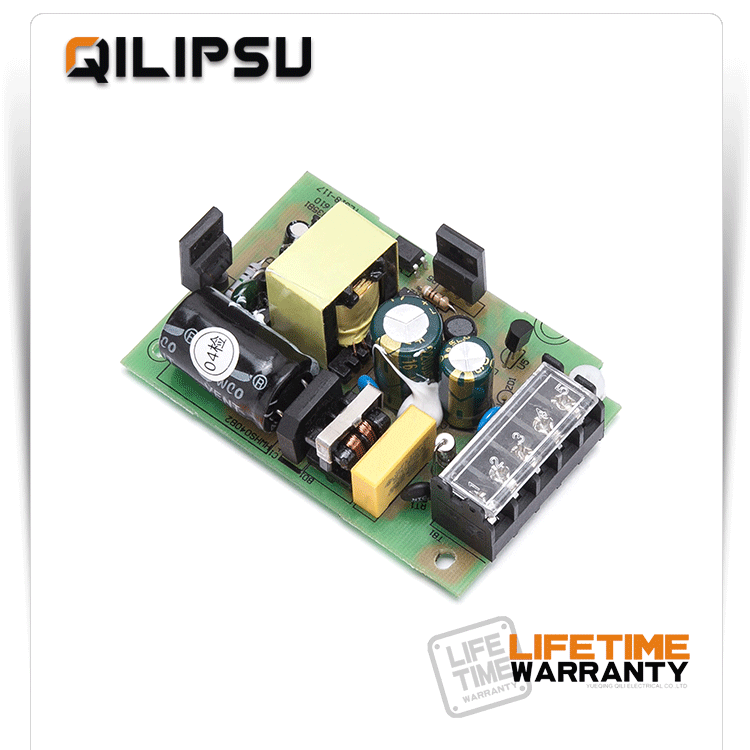

Name:MS-15-24 24V 0.7A 15W MINI POWER SUPPLY
Output Power15W
Output Voltage24V
Output AMP0.7A
AC Input Voltage range100~240VAC 47~63Hz,135~373VDC
WarrantyLifetime Warranty
CertificateCE LVD EMC ROHS
ProtectionOver Load
Product Description

DOWNLOAD






LIFETIME WARRANTY 220V AC to DC 24V  0.7A 15W CCTV switching

 power supply,LED power supply SMPS



MODEL MS-15-5 MS-15-12 MS-15-24
OUTPUT DC VOLTAGE  5V 12V 24V
VOLTAGE TOLERANCE  ±1% ±1% ±1%
RATED CURRENT 3A 1.3A 0.7A
CURRENT RANGE 0-3A 0~1.3A 0~0.7A
RATED POWER 15W 15.6W 16.8W
RIPPLE & NOISE 80mVp-p 120mVp-p 150mVp-p
DC VOLTAGE ADJ. RANGE -9%~+10% ±10% ±10%
SETUP, RISE, HOLD TIME 200ms,50ms,20ms/230VAC
INPUT VOLTAGE RANGE 100~240VAC 47~63Hz,135~373VDC
AC CURRENT 0.45A/115VAC 0.25A/230VAC
EFFICIENCY 78% 81% 83%
INRUSH CURRENT Cold start 30A/230VAC
LEAKAGE CURRENT <0.5mA/240VAC
PROTECTION OVER LOAD Rated output power115%~150%Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
ENVIRONMENT WORKING TEMP, HUMIDITY -10℃~+60℃;20%~90%RH(Please refer to“derating curve”)
STORAGE TEMP,  HUMIDITY -20℃~+85℃;10%~95%RH Non-condensing
WITHSTAND VIBRATION 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
FIT STANDARD SAFETY STANDARD Fit UL1012
EMC STANDARD Fit EN55022,CLASSA
OTHERS DIMENSION 84*58*30(L*W*H)
WEIGHT 0.15kg
MTBF 550K hrs min. MIL-HDBK-217F(25℃)
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
