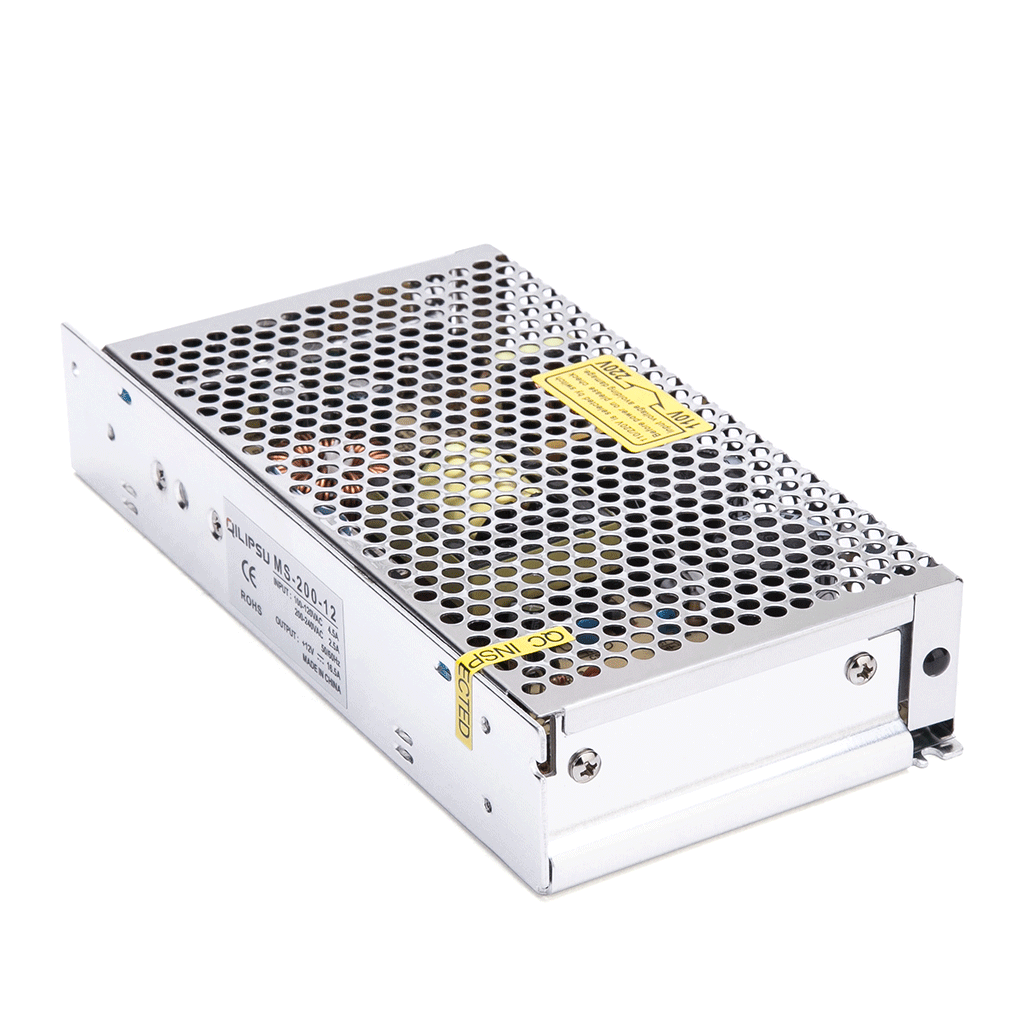

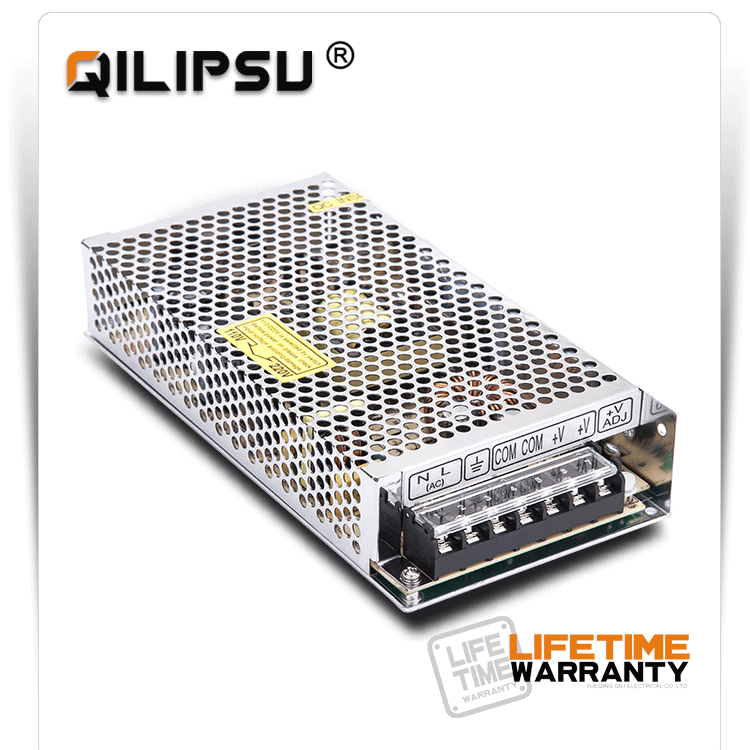

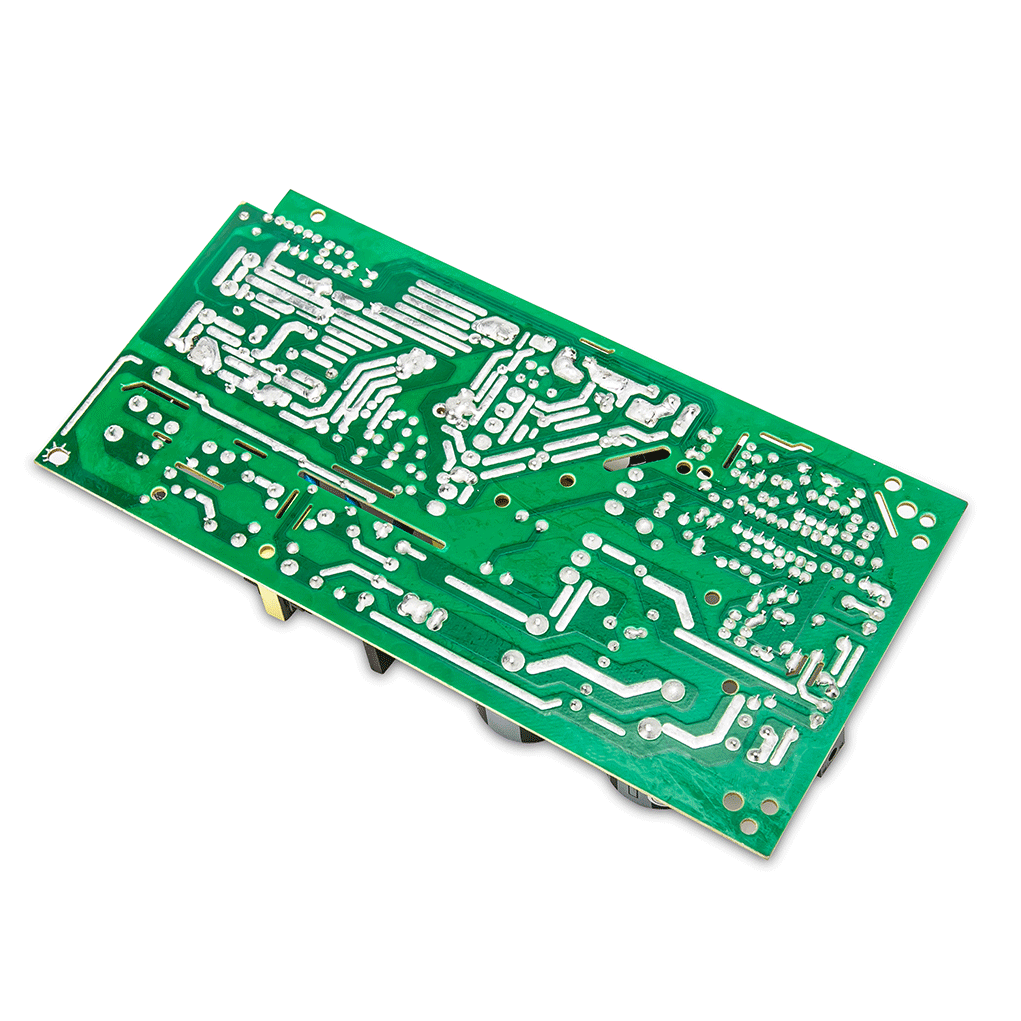

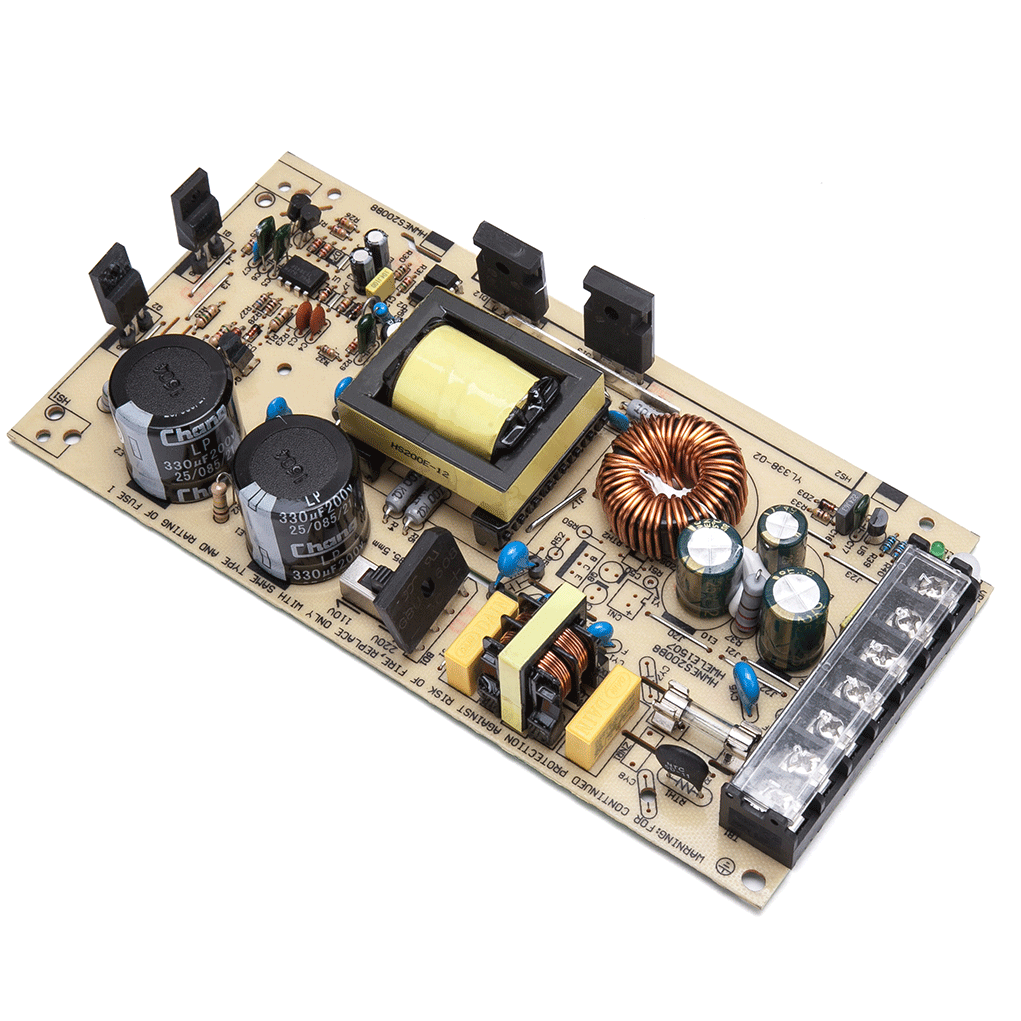

 LIFETIME WARRANTY MINI 24V 8.3A CCTV switching power supply

200W SMPS 220V ac to 24V dc LED power supply





MODEL		MS-200-5	MS-200-12	MS-200-24
OUTPUT	DC VOLTAGE	5V	12V	24V
	VOLTAGE TOLERANCE	±1%	±1%	±1%
	RATED CURRENT	30A	16.6A	8.3A
	CURRENT RANGE	0-30A	0~16.6A	0~8.3A
	RATED POWER	150W	199.2W	199.2W
	RIPPLE & NOISE	150mVp-p	180mVp-p	200mVp-p
	DC VOLTAGE ADJ. RANGE	±10%	±10%	±10%
	SETUP, RISE, HOLD TIME	1000ms,100ms,30ms/230VAC.
INPUT	VOLTAGE RANGE	100~120VAC/200~240VAC(Selected by switch) 47~63Hz,255~373VDC
	AC CURRENT	4.0A/115V  2.0A/230VAC
	EFFICIENCY	80%	83%	85%
	INRUSH CURRENT	Cold start 18A/115V  36A/230VAC
	LEAKAGE CURRENT	<3.5mA/240VAC
PROTECTION	OVER LOAD	Rated output power115%~150%Start overload protection
		Protection type:hiccup mode,auto-recovery after fault condition is removed
	Over voltage	Rated output power115%~135%Start overload protection
		Protection type:hiccup mode,auto-recovery after fault condition is removed
	Over temperature	≥85℃±5℃(TSW1detect on heatsink of power transistor)
		Protection mode:cutoff output,auto-recovery after temperature become normal
ENVIRONMENT	WORKING TEMP, HUMIDITY	-10℃~+60℃;20%~90%RH(Please refer to“derating curve”)
	STORAGE TEMP,  HUMIDITY	-20℃~+85℃;10%~95%RH Non-condensing
	WITHSTAND VIBRATION	10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
FIT STANDARD	SAFETY STANDARD	Fit UL1012
	EMC STANDARD	Fit EN55022,CLASSA
OTHERS	DIMENSION	199*98*38mm(L*W*H)
	WEIGHT	0.6kg
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
	3. Tolerance : includes set up tolerance, line regulation and load regulation.
