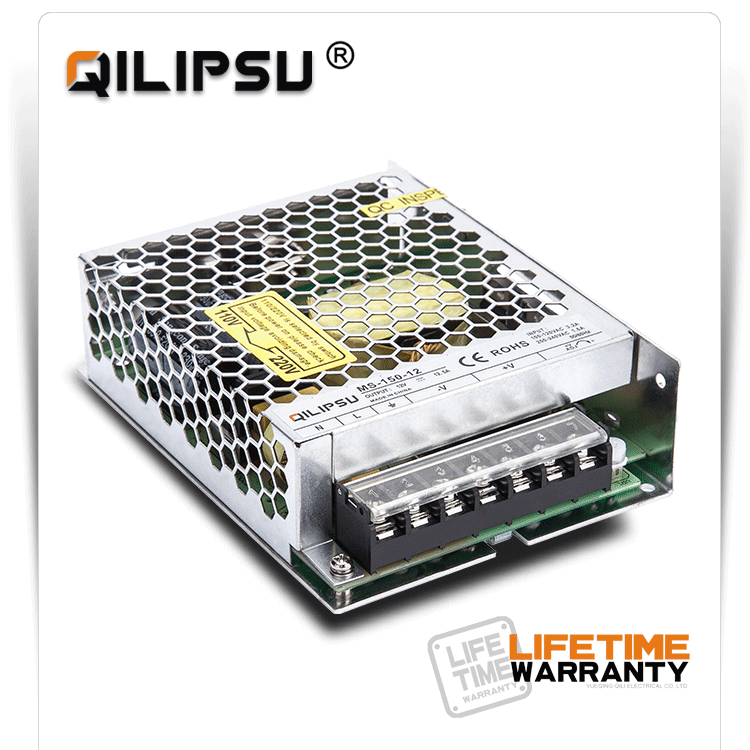

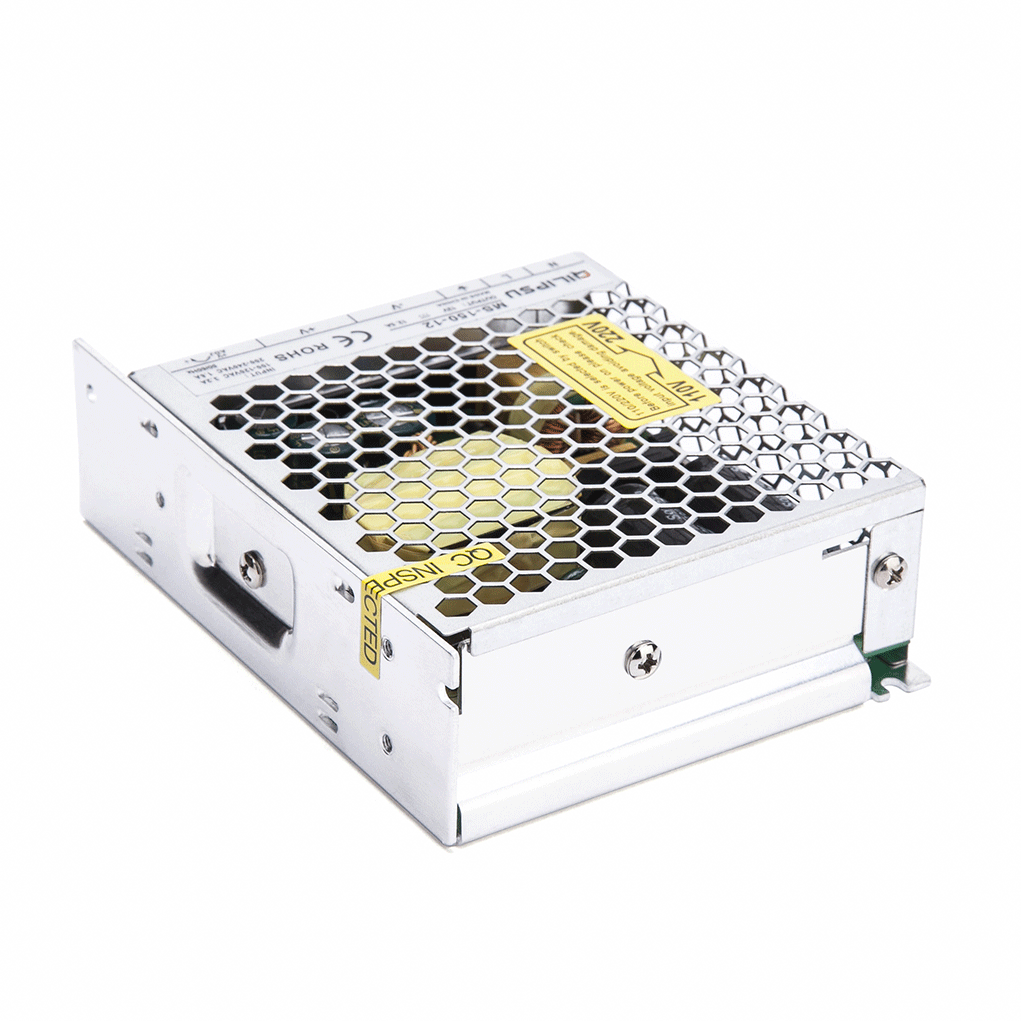

Name:MS-150-5 5V 30A 150W MINI POWER SUPPLY
Output Power150W
Output Voltage5V
Output AMP30A
AC Input Voltage range100~120VAC/200~240VAC(selected by switch) 47~63Hz,255~373VDC
WarrantyLifetime Warranty
CertificateCE LVD EMC ROHS
ProtectionOver Load
Product Description

DOWNLOAD








LIFETIME WARRANTY MINI 5V 30A CCTV switching power supply

150W SMPS 220V ac to 5V dc LED power supply



MODEL MS-150-5 MS-150-12 MS-150-24
OUTPUT DC VOLTAGE  5V 12V 24V
VOLTAGE TOLERANCE  ±2% ±2% ±2%
RATED CURRENT 30A 12.5A 6.3A
CURRENT RANGE 0-30A 0~12.5A 0~6.3A
RATED POWER 150W 150W 151.2W
RIPPLE & NOISE 180mVp-p 180mVp-p 200mVp-p
DC VOLTAGE ADJ. RANGE ±10% ±10% ±10%
SETUP, RISE, HOLD TIME 800ms, 30ms, 24ms / 230VAC
INPUT VOLTAGE RANGE 100~120VAC/200~240VAC(selected by switch) 47~63Hz,255~373VDC
AC CURRENT 3.2A/115VAC     1.6/230VAC
EFFICIENCY   86% 87%
INRUSH CURRENT Cold start 55A/230VAC
LEAKAGE CURRENT <2.0mA/240VAC
PROTECTION OVER LOAD Rated output power110%~135%Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
ENVIRONMENT WORKING TEMP, HUMIDITY -10℃~+50℃;20%~90%RH(Please refer to“derating curve”)
STORAGE TEMP,  HUMIDITY -25℃~+85℃;10%~95%RH Non-condensing
WITHSTAND VIBRATION 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
FIT STANDARD SAFETY STANDARD Compliance to UL1012,UL60950-1,GB4943
EMC STANDARD Compliance to EN55022,EN61000-3-2,CLASSA
OTHERS DIMENSION 129*98*38mm(L*W*H)
WEIGHT 0.46kg
MTBF 410K hrs min. MIL-HDBK-217F(25℃)
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
