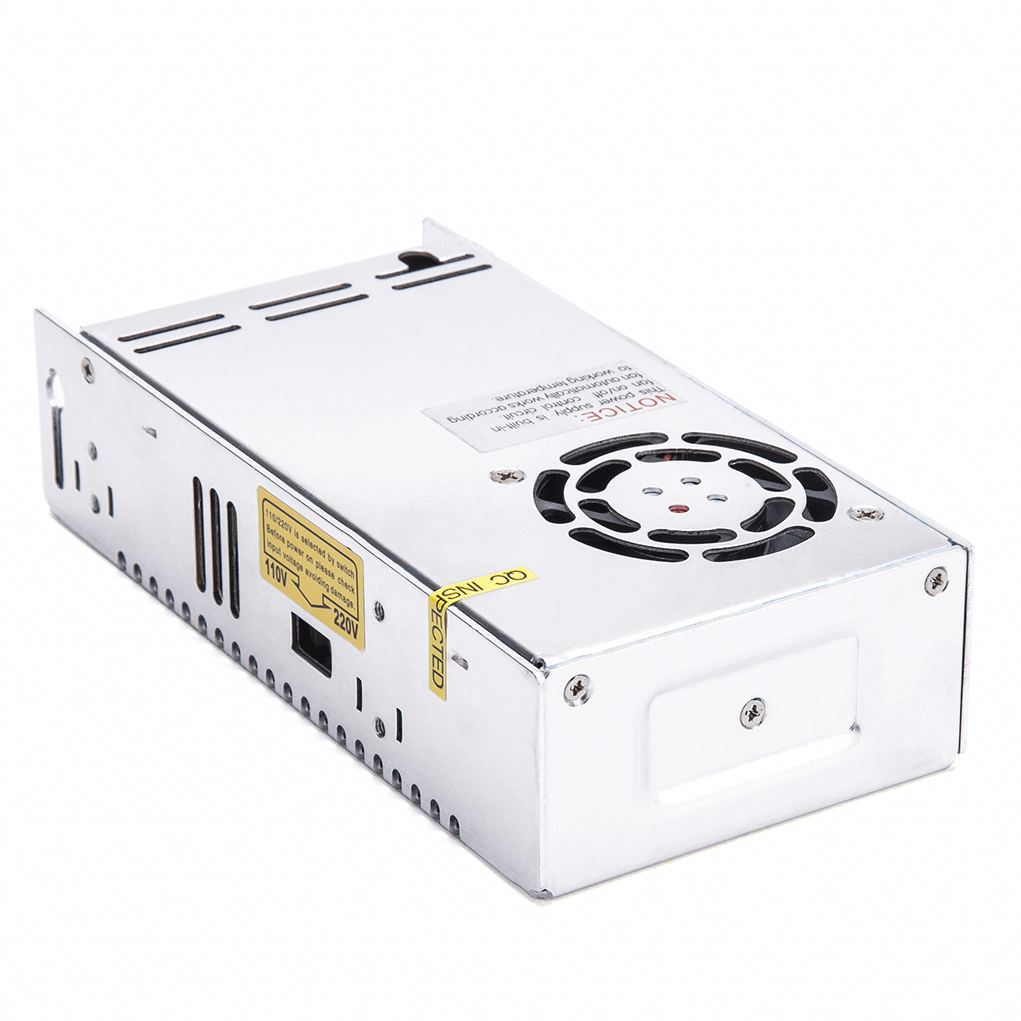

Name:MS-350-24 24V 14.6A 350W MINI POWER SUPPLY
Output Power350W
Output Voltage24V
Output AMP14.6A
AC Input Voltage range100~120VAC/200~240VAC(Selected by switch) 47~63Hz,255~373VDC
WarrantyLifetime Warranty
CertificateCE LVD EMC ROHS
ProtectionOver Load
Product Description

DOWNLOAD








LIFETIME WARRANTY MINI  CCTV switching power supply 24V 14.6A

350W SMPS 220V ac to dc LED power supply



MODEL MS-350-5 MS-350-12 MS-350-24
OUTPUT DC VOLTAGE  5V 12V 24V
VOLTAGE TOLERANCE  ±1% ±1% ±1%
RATED CURRENT 50A 29A 14.6A
CURRENT RANGE 0~50A 0~29A 0~14.6A
RATED POWER 250W 348W 350.4W
RIPPLE & NOISE 150mVp-p 150mVp-p 200mVp-p
DC VOLTAGE ADJ. RANGE ±10% ±10% ±10%
SETUP, RISE, HOLD TIME 1000ms, 100ms, 30ms / 230VAC
INPUT VOLTAGE RANGE 100~120VAC/200~240VAC(Selected by switch) 47~63Hz,255~373VDC
AC CURRENT 6.5A/115V 4A/230VAC
EFFICIENCY 80% 82% 84%
INRUSH CURRENT Cold start 25A/115V 50A/230VAC
LEAKAGE CURRENT <3.5mA/240VAC
PROTECTION OVER LOAD Rated output power110%~135%Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
OVER VOLTAGE Rated output power115%~135%Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
OVER TEMPERATURE ≥85℃±5℃(TSW1detect on heatsink of power transistor)
Protection mode:cutoff output,auto-recovery after temperature become normal
ENVIRONMENT WORKING TEMP, HUMIDITY -10℃~+60℃;20%~90%RH(Please refer to“derating curve”)
STORAGE TEMP,  HUMIDITY -20℃~+85℃;10%~95%RH Non-condensing
WITHSTAND VIBRATION 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
FIT STANDARD SAFETY STANDARD Compliance to UL1012,UL60950-1,GB4943
EMC STANDARD Compliance to EN55022,EN61000-3-2,CLASSA
OTHERS DIMENSION 199*99*48mm(L*W*H)
WEIGHT 0.75kg
MTBF 550K hrs min. MIL-HDBK-217F(25℃)
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
