| Name: | QL-130807PT Junction Box With Mounting Plate and Clear Cover |
|---|---|
| Color | Grey |
| Material: | ABS plastic |
| Certificate | IP67,CE, RoHS |
| Dimensions | 130x80x70mm |
| Package Include | 1 x Junction box, 4 x Plastic screws ,1 x Mounting plate, 2 x Metal screws |
Product Description
Junction Box with Mounting Plate,Clear Cover Plastic box, DIY Case Enclosure Gray IP67 130x80x70mm (5.1"x3.1"x2.8")
Product description
Size:5.1‘'x3.1’'x2.8'‘
Description
* Effectively prevent electric leakage
* Plastic material screw, no rust problem

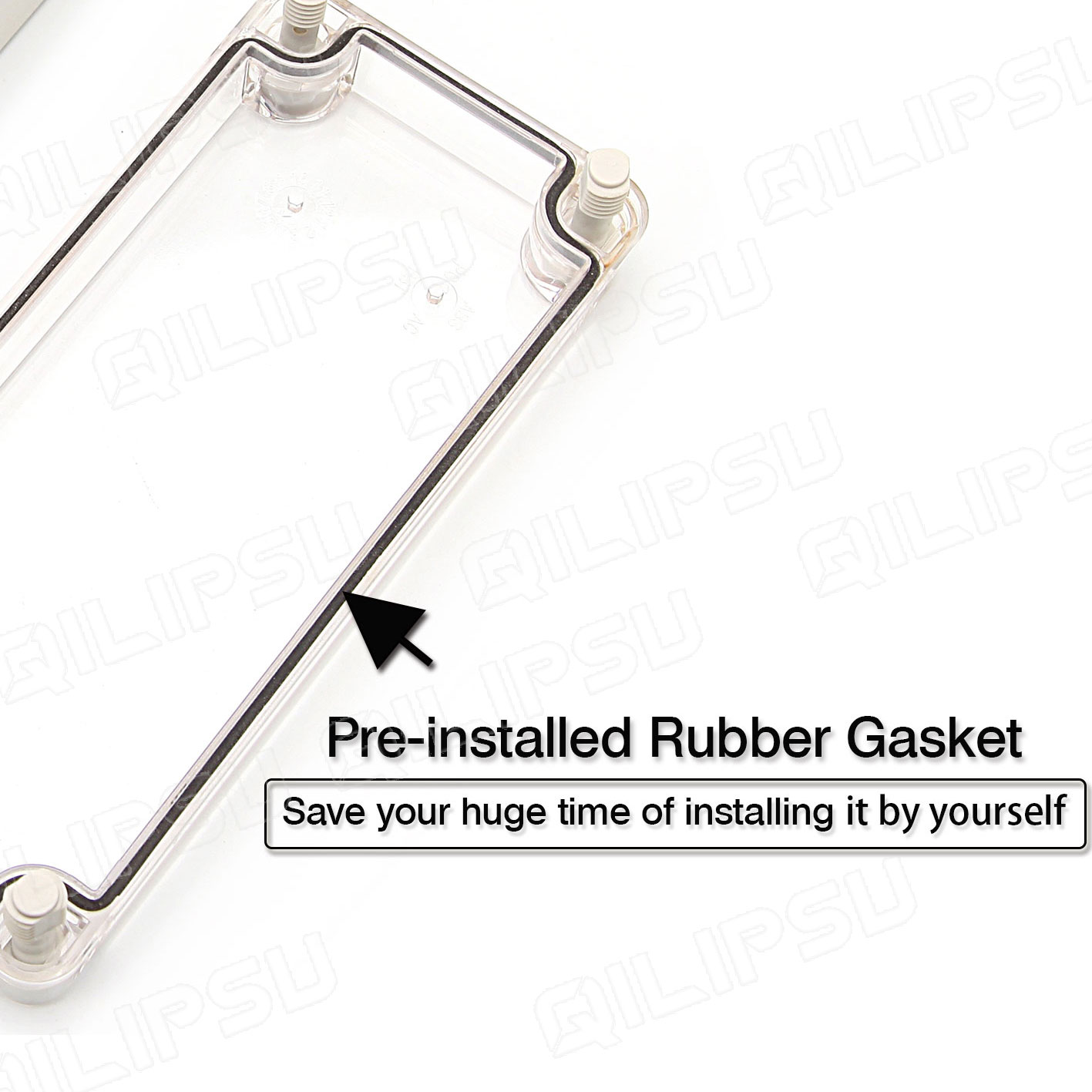

* Rubber sealing ring prevent dirt, dust, oil and water
* Erection column, it can installs more parts such like terminal and rail

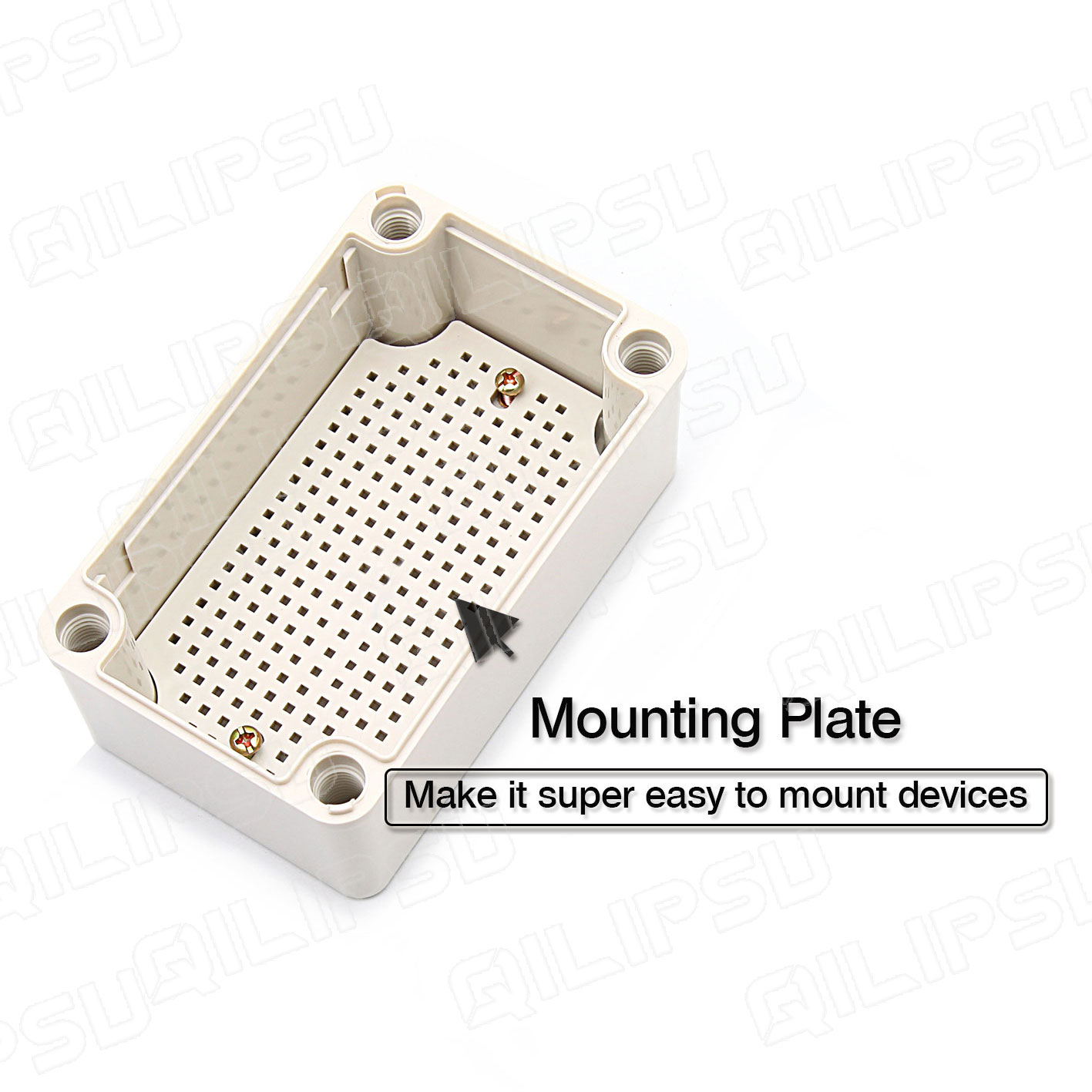

* More mounting post on the bottom, can easily and firmly mount rail and PCB board
* Designed to insulate and protect controls and components in both indoor & outdoor applications
Specifications
* Color: Grey
* Material: ABS plastic
* Certificate: CE, RoHS
* Waterproof Rating: IP67

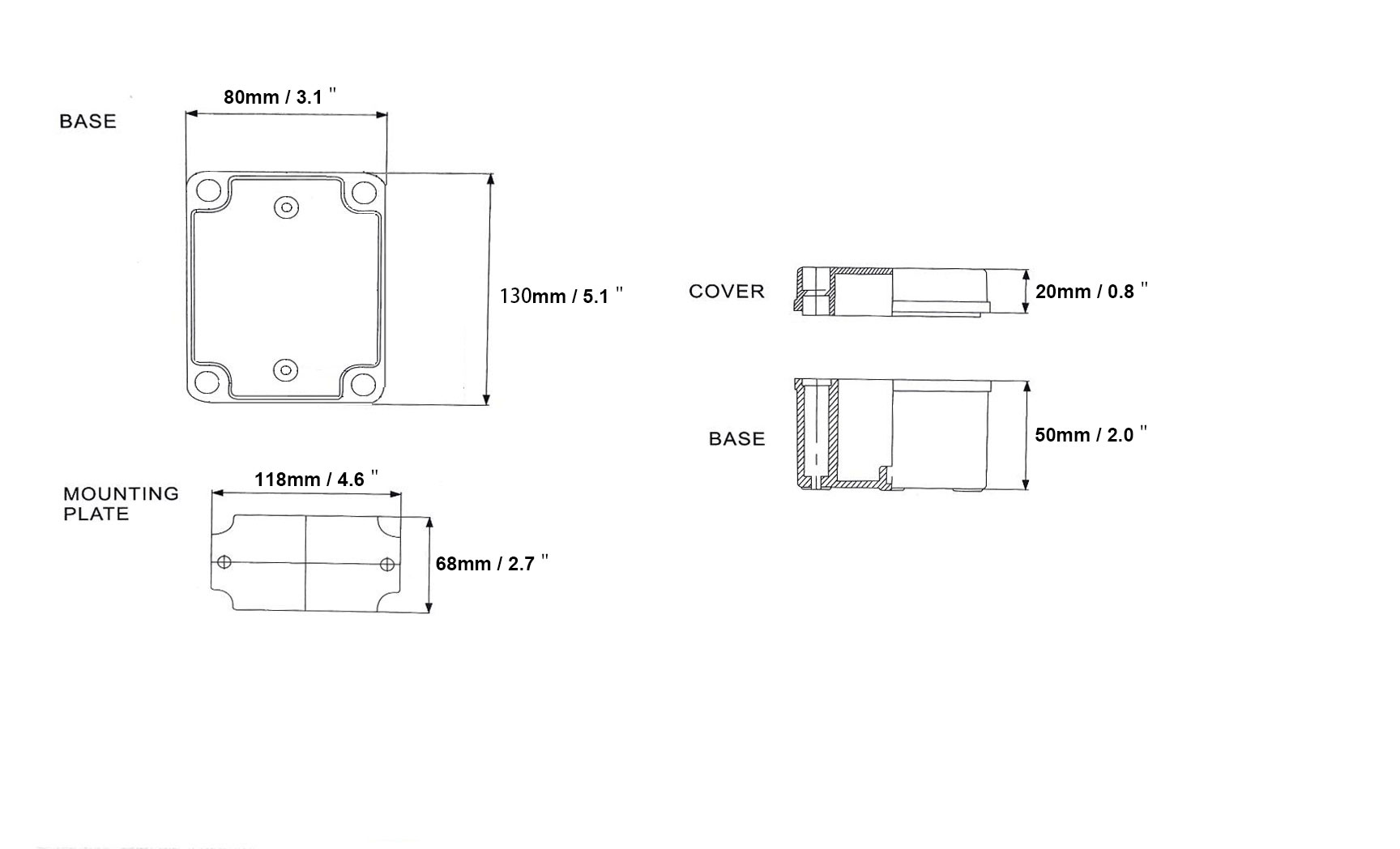

* Dimensions: 130x80x70mm(5.1"x3.1"x2.8")

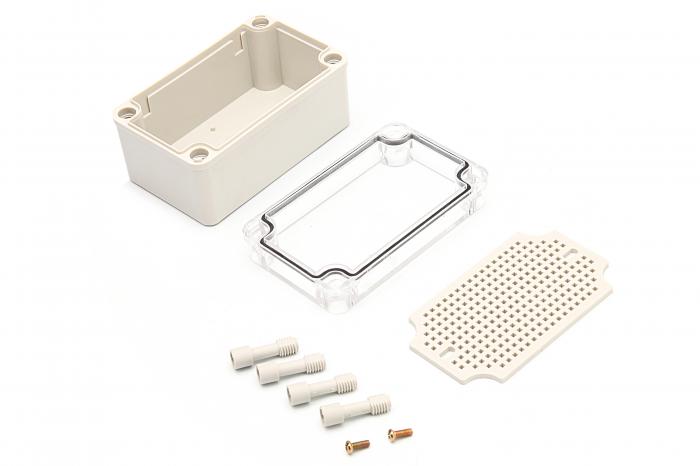

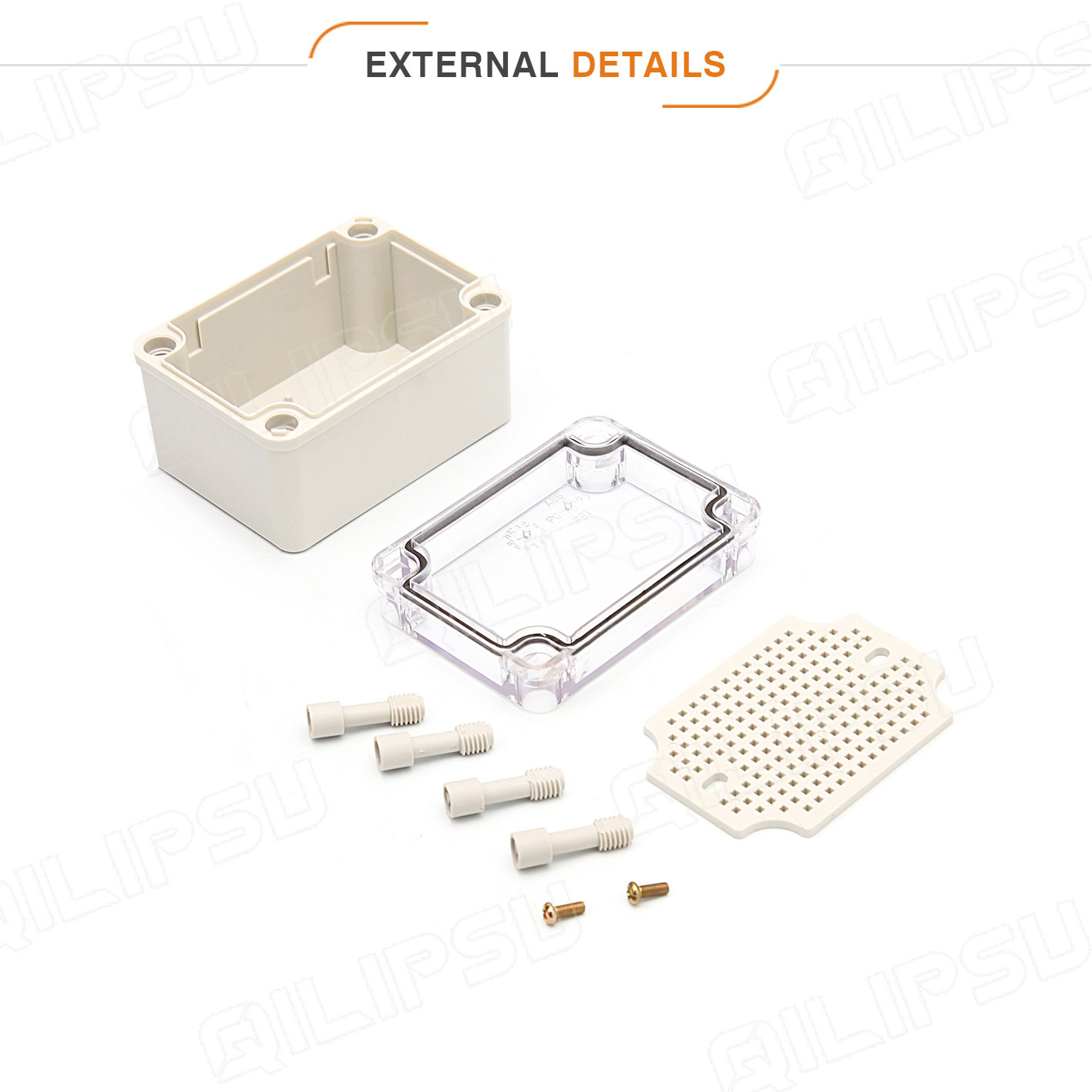

Package Include
* 1 x Junction box
* 4 x Plastic screws
* 1 x Mounting plate
* 2 x Metal screws for mounting plate
