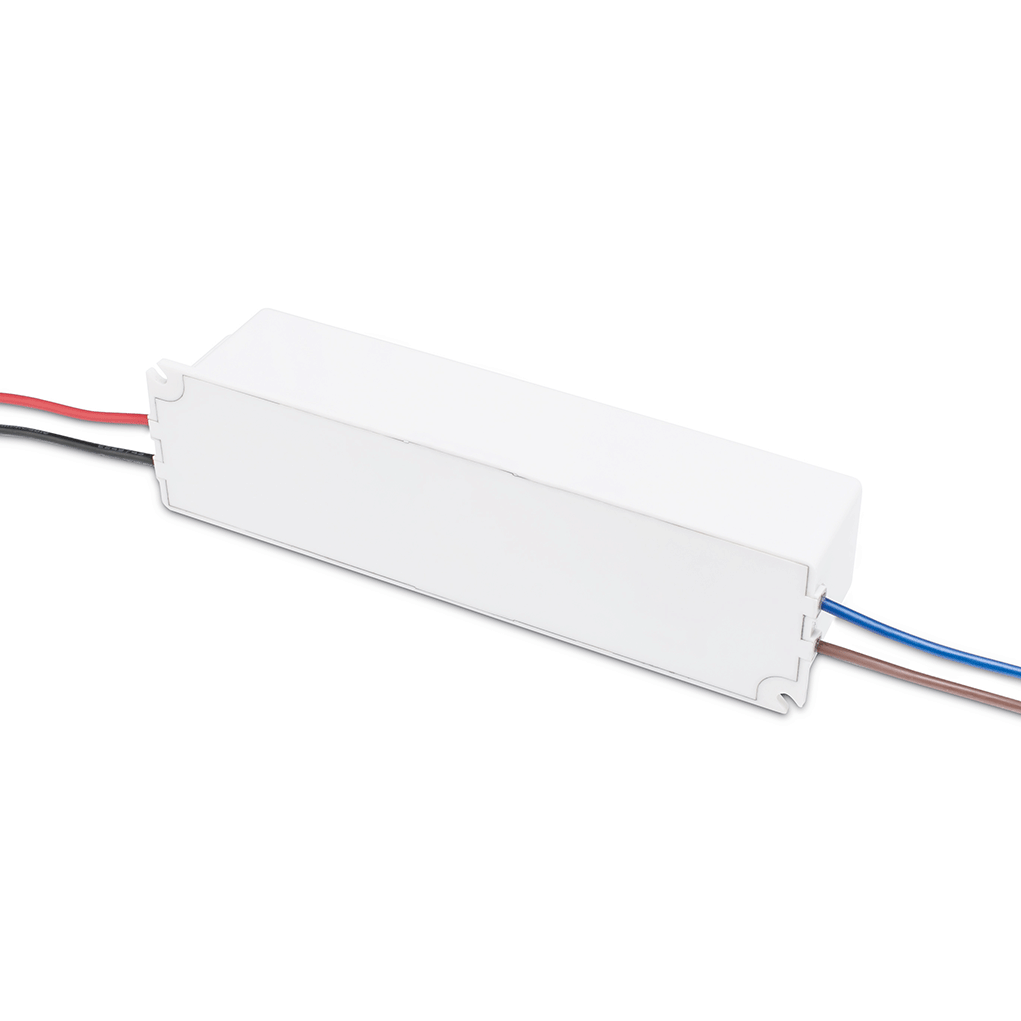

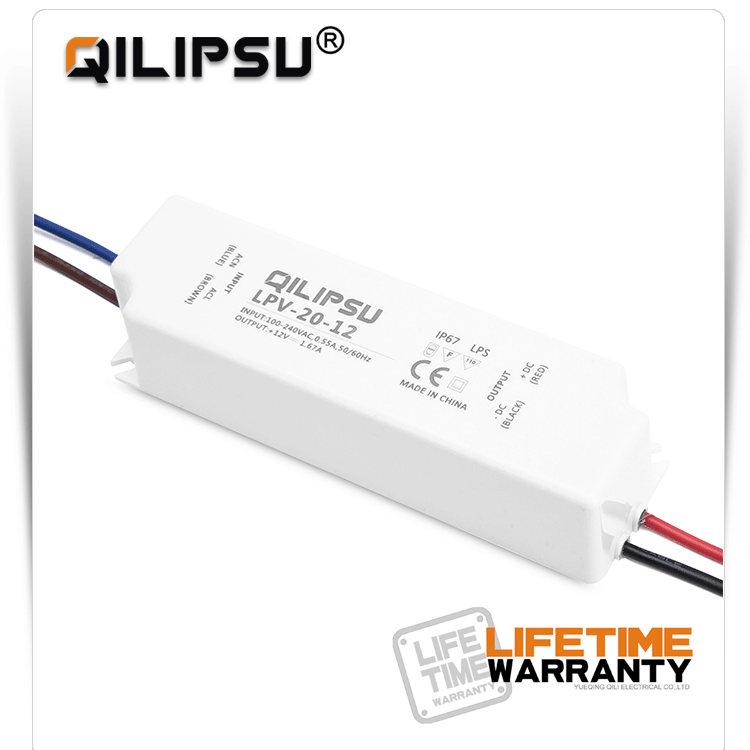

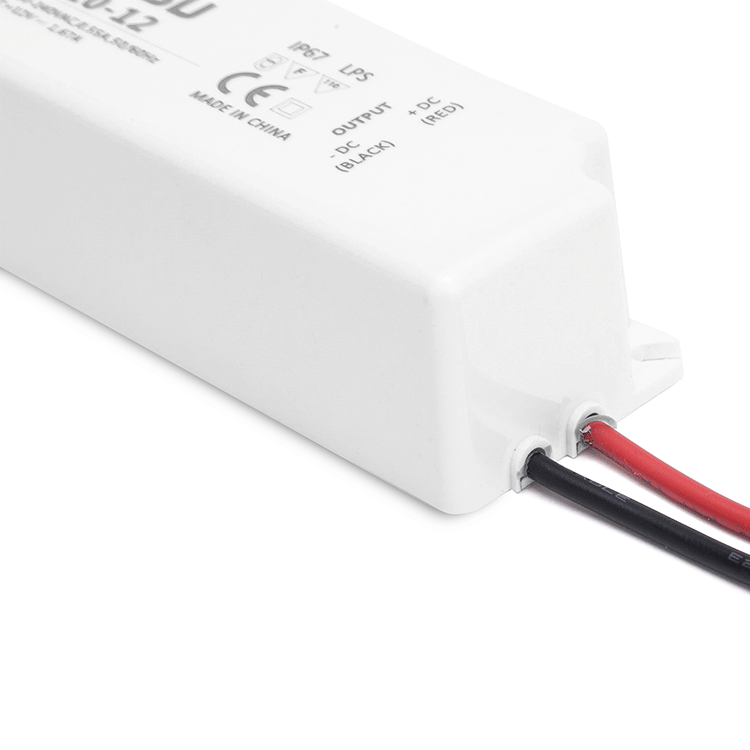

Name:LPV-20-12 12V 1.67A 20W Plastic LED driver IP67
Output Power20W
Output Voltage12V
Output AMP1.67A
AC Input Voltage range100~240VAC 47~63Hz,135~373VDC
Waterproof degreeIP67
WarrantyLifetime Warramty
CertificateCE LVD EMC ROHS
Product Description





LIFETIME WARRANTY plastic 12V 1.67A 20W IP67 110V/20V ac to dc waterproof LED driver





MODEL LPV-20-12 LPV-20-24
OUTPUT DC VOLTAGE  12V 24V
RATED CURRENT 1.67A 0.84A
CURRENT RANGE 0-1.67A 0~0.84A
RATED POWER 20W 20.2W
RIPPLE & NOISE 120mVp-p 150mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.0%
SETUP, RISE, TIME 500ms,30ms/230VAC   500ms,20ms/115VACat full load
HOLD UP TIME 50ms/230VAC     16ms/115VAC at full load
INPUT VOLTAGE RANGE 100~240VAC 47~63Hz,254~373VDC
AC CURRENT 0.55A/115VAC 0.35A/230VAC
EFFICIENCY 81% 83%
INRUSH CURRENT Cold start  70A/230VAC  (twidth=215μs measured at 50% Ipeak)
LEAKAGE CURRENT <0.25mA/240VAC
PROTECTION OVER LOAD 110~150% rated output power  Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
Over VOLTAGE 13.8~16.2V 27.6~32.4V
Protection type:shut off output voltage,clamping by zener diode
ENVIRONMENT WORKING TEMPERATURE -30℃~+70℃(Please refer to“derating curve”)
WORKING HUMIDITY 20%~90%RH Non-condensing
STORAGE TEMP,HUMIDITY -40℃~+80℃;10%~95%RH
TEMP.COEFFICIENT ±0.03%/℃(0~50℃)
VIBRATION 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY&EMC SAFETY STANDARD UL879,UL1310,CSA C22.2 NO.207-M89,CAN/CSA C22.2 NO.223-M91,IP67 approved;design refer to TUV EN 60950-1
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms/500VDC/25℃/70%RH
EMC EMISSION Compliance to EN55022(CISPR22)Class B,EN61000-3-2 Class A,EN61000-3-3
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level,criteria A
OTHERS MTBF 680K hrs min.         MIL-HDBK-217F(25℃)
DIMENSION 118*35*26mm(L*W*H)
WEIGHT 0.2kg
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
