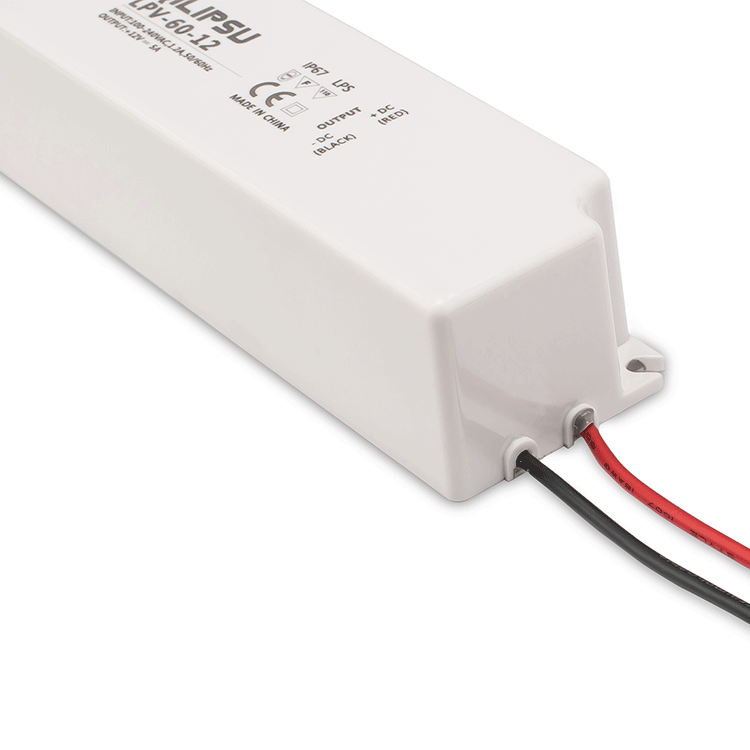

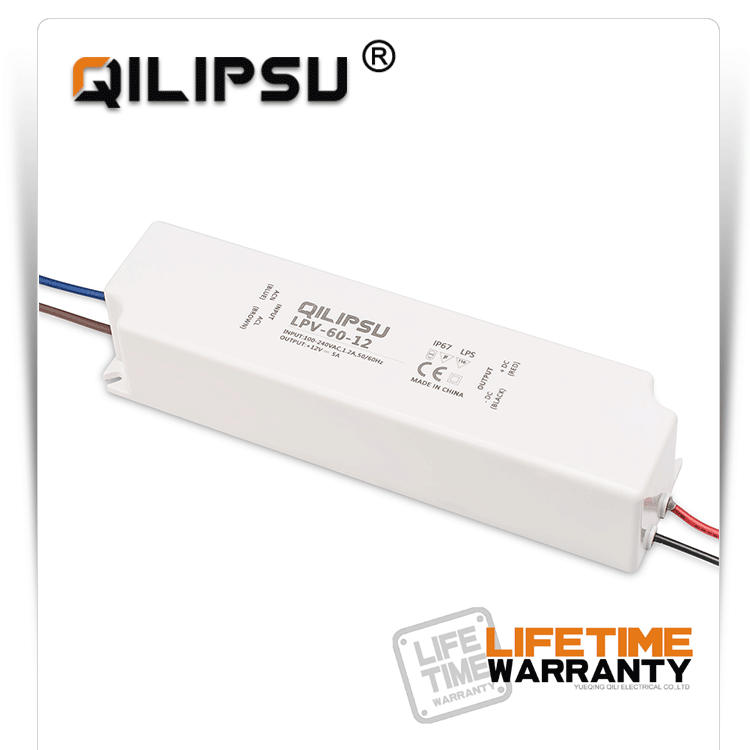

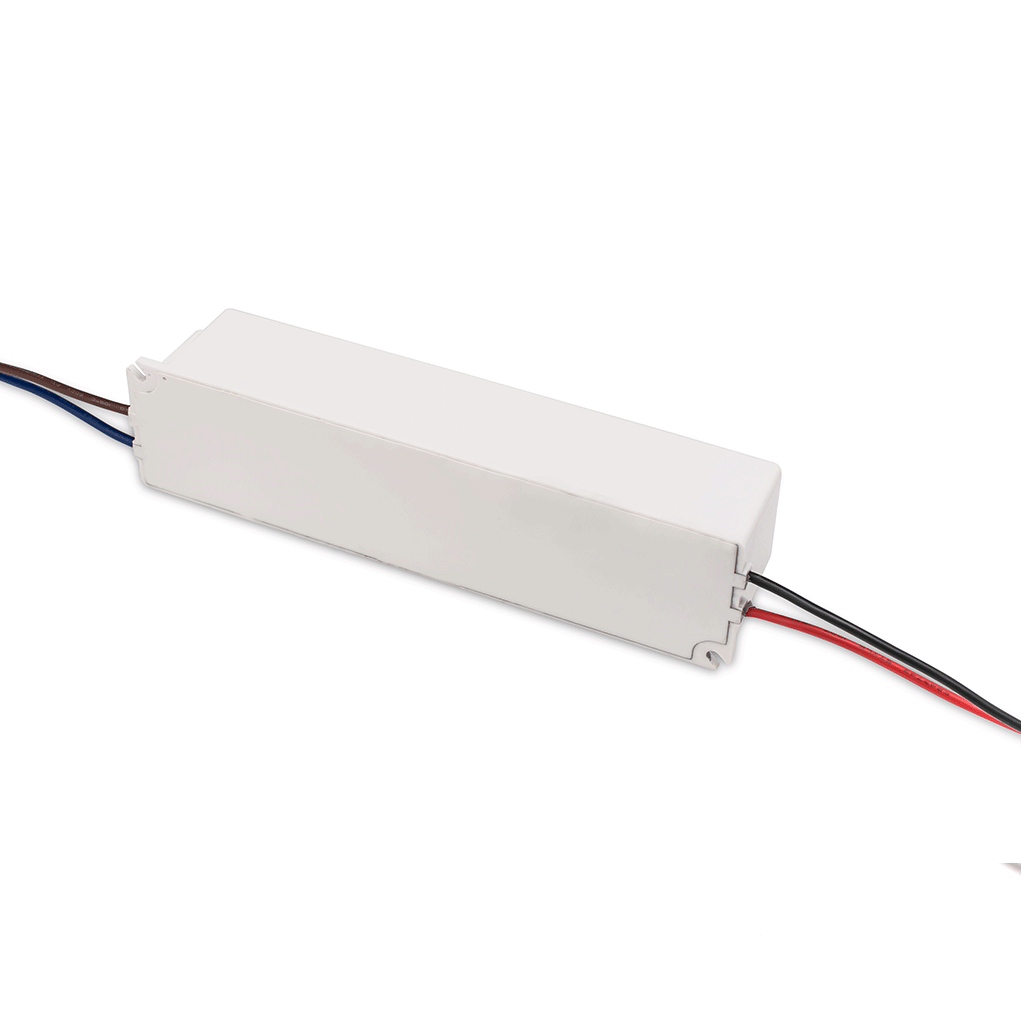

Name:LPV-60-12 12V 5A 60W Plastic LED driver IP67
Output Power60W
Output Voltage12V
Output AMP5A
AC Input Voltage range100~240VAC 47~63Hz,135~373VDC
Waterproof degreeIP67
WarrantyLifetime Warramty
CertificateCE LVD EMC ROHS
Product Description





12V 5A 60W LIFETIME WARRANTY plastic IP67 110V/220V ac to dc waterproof LED driver





MODEL LPV-60-12 LPV-60-24
OUTPUT DC VOLTAGE  12V 24V
RATED CURRENT 5A 2.5A
CURRENT RANGE 0-5A 0~2.5A
RATED POWER 60W 60W
RIPPLE & NOISE 120mVp-p 150mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.0%
SETUP, RISE, TIME 500ms,30ms/230VAC   500ms,20ms/115VACat full load
HOLD UP TIME 50ms/230VAC     16ms/115VAC at full load
INPUT VOLTAGE RANGE 100~240VAC 47~63Hz,127~373VDC
AC CURRENT 1.2A/115VAC 1.0A/230VAC
EFFICIENCY 83% 86%
INRUSH CURRENT Cold start 60A/230VAC  (twidth=525μs measured at 50% Ipeak)
LEAKAGE CURRENT <0.25mA/240VAC
PROTECTION OVER LOAD 110~150% rated output power  Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
Over VOLTAGE 13.8~16.2V 27.6~32.4V
Protection type:Shut down output voltage,re-power on to  recover
ENVIRONMENT WORKING TEMPERATURE -30℃~+70℃(Please refer to“derating curve”)
WORKING HUMIDITY 20%~90%RH Non-condensing
STORAGE TEMP,HUMIDITY -40℃~+80℃;10%~95%RH
TEMP.COEFFICIENT ±0.03%/℃(0~50℃)
VIBRATION 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY&EMC SAFETY STANDARD UL879,UL1310,CSAC22.2NO.207-M89,CAN/CSA C22.2 NO.223-M91,IP67 approved;design refer to TUV EN 60950-1
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms/500VDC/25℃/70%RH
EMC EMISSION Compliance to EN55022(CISPR22)Class B,EN61000-3-2 Class A,EN61000-3-3
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level,criteria A
OTHERS MTBF 705K hrs min.         MIL-HDBK-217F(25℃)
DIMENSION 164*42*33 mm(L*W*H)
WEIGHT 0.41kg
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
