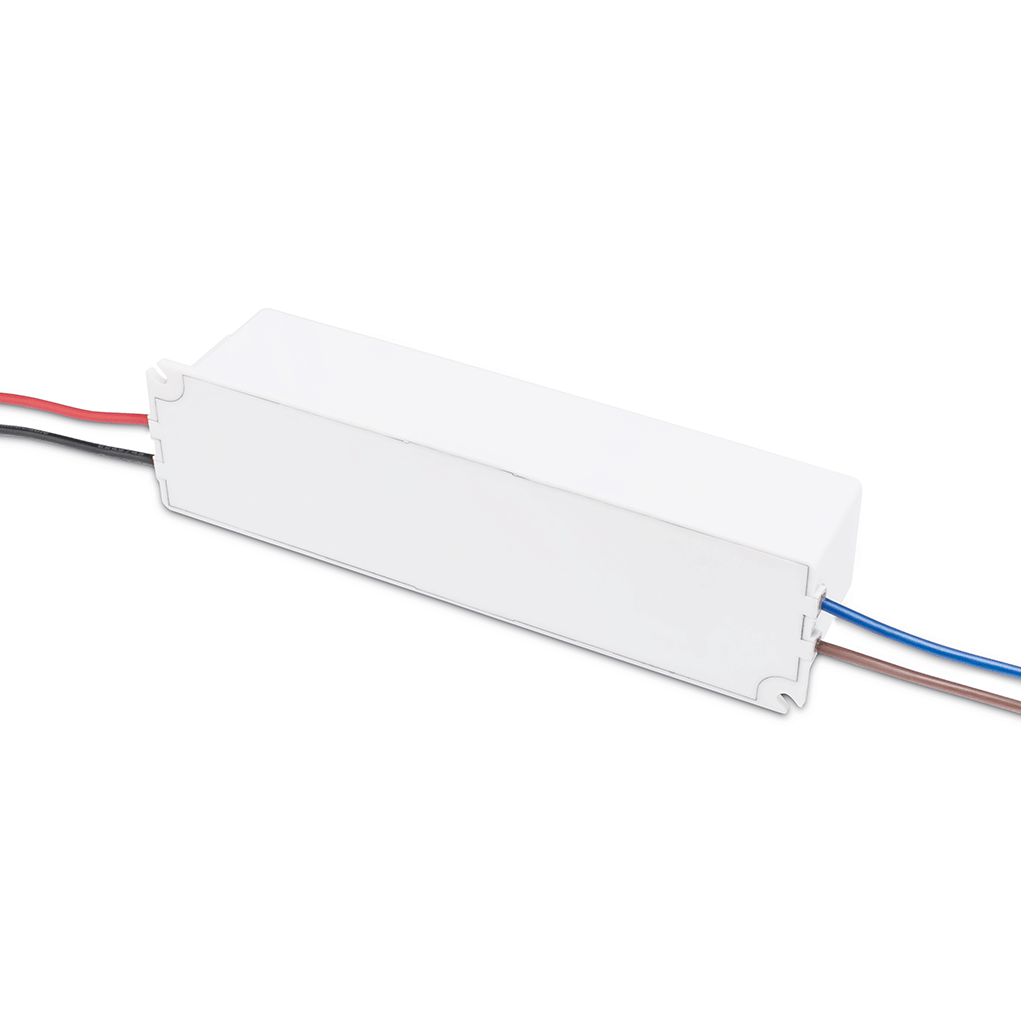

| Name: | LPV-35-24 24V 1.5A 35W Plastic LED driver IP67 |
|---|---|
| Output Power | 35W |
| Output Voltage | 24V |
| Output AMP | 1.5A |
| AC Input Voltage range | 100~240VAC 47~63Hz,135~373VDC |
| Waterproof degree | IP67 |
| Warranty | Lifetime Warramty |
| Certificate | CE LVD EMC ROHS |
Product Description
24V 1.5A 35W LIFETIME WARRANTY plastic IP67 110V/220V ac to dc waterproof LED driver
| MODEL | LPV-35-12 | LPV-35-24 | |
| OUTPUT | DC VOLTAGE | 12V | 24V |
| RATED CURRENT | 3A | 1.5A | |
| CURRENT RANGE | 0-3A | 0~1.5A | |
| RATED POWER | 36W | 36W | |
| RIPPLE & NOISE | 120mVp-p | 150mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ||
| LINE REGULATION | ±1.0% | ||
| LOAD REGULATION | ±2.0% | ||
| SETUP, RISE, TIME | 500ms,30ms/230VAC 500ms,20ms/115VACat full load | ||
| HOLD UP TIME | 50ms/230VAC 16ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 100~240VAC 47~63Hz,127~373VDC | |
| AC CURRENT | 1.1A/115VAC 0.7A/230VAC | ||
| EFFICIENCY | 84% | 85% | |
| INRUSH CURRENT | Cold start 55A/230VAC (twidth=510μs measured at 50% Ipeak) | ||
| LEAKAGE CURRENT | <0.25mA/240VAC | ||
| PROTECTION | OVER LOAD | 110~150% rated output power Start overload protection | |
| Protection type:hiccup mode,auto-recovery after fault condition is removed | |||
| Over VOLTAGE | 13.8~16.2V | 27.6~32.4V | |
| Protection type:Shut down output voltage,re-power on to recover | |||
| ENVIRONMENT | WORKING TEMPERATURE | -30℃~+65℃(Please refer to“derating curve”) | |
| WORKING HUMIDITY | 20%~90%RH Non-condensing | ||
| STORAGE TEMP,HUMIDITY | -40℃~+80℃;10%~95%RH | ||
| TEMP.COEFFICIENT | ±0.03%/℃(0~50℃) | ||
| VIBRATION | 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes | ||
| SAFETY&EMC | SAFETY STANDARD | UL1310,CAN/CSA C22.2 NO.223-M91,IP67 approved;design refer to TUV EN 60950-1 | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms/500VDC/25℃/70%RH | ||
| EMC EMISSION | Compliance to EN55022(CISPR22)Class B,EN61000-3-2 Class A,EN61000-3-3 | ||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level,criteria A | ||
| OTHERS | MTBF | 710K hrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 148*40*30 mm(L*W*H) | ||
| WEIGHT | 0.32kg | ||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. | ||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||
