Name:WP-200-24 24V 8.3A 200W LED DRIVER IP67
Output Power200W
Output Voltage24V
Output AMP8.3A
AC Input Voltage range100~120VAC or 200~240VAC 47~63Hz,255~373VDC
Waterproof degreeIP67
Warrantylifetime
CertificateCE LVD EMC ROHS
Product Description

DOWNLOAD






LIFETIME WARRANTY constant voltage 220v ac to dc IP67 24V 8.3A

 200W waterproof LED driver



MODEL WP-200-12 WP-200-24
OUTPUT DC VOLTAGE  12V 24V
VOLTAGE TOLERANCE  ±3% ±2%
RATED CURRENT 16.5A 8.3A
CURRENT RANGE 0-16.5A 0~8.3A
RATED POWER 198W 199W
RIPPLE & NOISE 150mVp-p 200mVp-p
SETUP, RISE, HOLD TIME 200ms,20ms,30ms/230VAC
INPUT VOLTAGE RANGE 100~120VAC or 200~240VAC 47~63Hz,255~373VDC
AC CURRENT 2.5A/230VAC
EFFICIENCY 83% 85%
INRUSH CURRENT Cold start 50A/230VAC
LEAKAGE CURRENT <2mA/240VAC
PROTECTION OVER LOAD Rated output power105%~135%Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
Over temperature Case  temp≥85℃±5℃,Start over temp protection
Protection mode:cutoff output,auto-recovery after temperature become normal
ENVIRONMENT WORKING TEMP, HUMIDITY -10℃~+60℃;20%~90%RH(Please refer to“derating curve”)
STORAGE TEMP,  HUMIDITY -20℃~+85℃;10%~95%RH Non-condensing
WITHSTAND VIBRATION 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY WITHSTAND VOLTAGE I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC
FIT STANDARD SAFETY STANDARD Fit UL1012,TUV EN60950-1,  IP67
EMC STANDARD Fit EN55022,EN55024,CLASSA

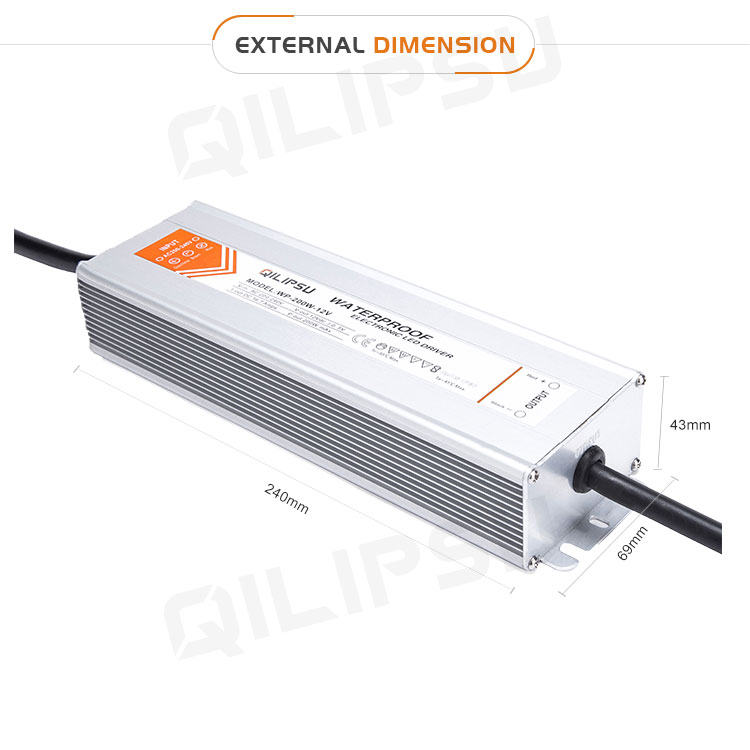

OTHERS DIMENSION 240*69*43mm(L*W*H)
WEIGHT 1.12kg
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
