| Name: | WP-60-12 12V 5A 60W LED DRIVER IP67 |
|---|---|
| Output Power | 60W |
| Output Voltage | 12V |
| Output AMP | 5A |
| AC Input Voltage range | 100~240VAC 47~63Hz,235~373VDC |
| Waterproof degree | IP67 |
| Warranty | lifetime |
| Certificate | CE LVD EMC ROHS |
Product Description
DOWNLOAD

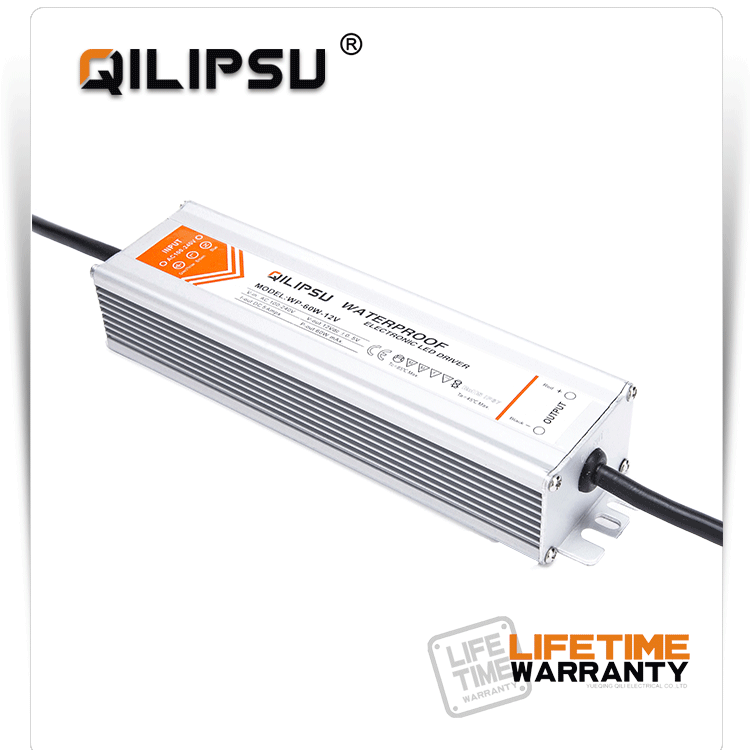

LIFETIME WARRANTY slim 220v ac to dc IP67 12v 5a 60w waterproof
LED driver / LED power supply IP67
| MODEL | WP-60-12 | WP-60-24 | |
| OUTPUT | DC VOLTAGE | 12V | 24V |
| VOLTAGE TOLERANCE | ±2% | ±2% | |
| RATED CURRENT | 5A | 2.5A | |
| CURRENT RANGE | 0-5A | 0~2.5A | |
| RATED POWER | 60W | 60W | |
| RIPPLE & NOISE | 100mVp-p | 120mVp-p | |
| SETUP, RISE, HOLD TIME | 800ms,20ms,24ms/230VAC | ||
| INPUT | VOLTAGE RANGE | 100~240VAC 47~63Hz,235~373VDC | |
| AC CURRENT | 0.42A/230VAC | ||
| EFFICIENCY | 83% | 84% | |
| INRUSH CURRENT | Cold start 30A/230VAC | ||
| LEAKAGE CURRENT | <0.5mA/240VAC | ||
| PROTECTION | OVER LOAD | Rated output power115%~150%Start overload protection | |
| Protection type:hiccup mode,auto-recovery after fault condition is removed | |||
| Over temperature | When temperature of transistor inner node is over 150℃±10℃,Start over temp protection | ||
| Protection mode:cutoff output,auto-recovery after temperature become normal | |||
| ENVIRONMENT | WORKING TEMP, HUMIDITY | -20℃~+60℃;20%~90%RH(Please refer to“derating curve”) | |
| STORAGE TEMP, HUMIDITY | -40℃~+85℃;10%~95%RH Non-condensing | ||
| WITHSTAND VIBRATION | 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes | ||
| SAFETY | WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms/500VDC | ||
| FIT STANDARD | SAFETY STANDARD | Fit UL1012,TUV EN60950-1, IP67 | |
| EMC STANDARD | Fit EN55022,EN55024,CLASSA | ||
| OTHERS | DIMENSION | 222*30*20mm(L*W*H) | |
| WEIGHT | 0.27kg | ||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. | ||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||
