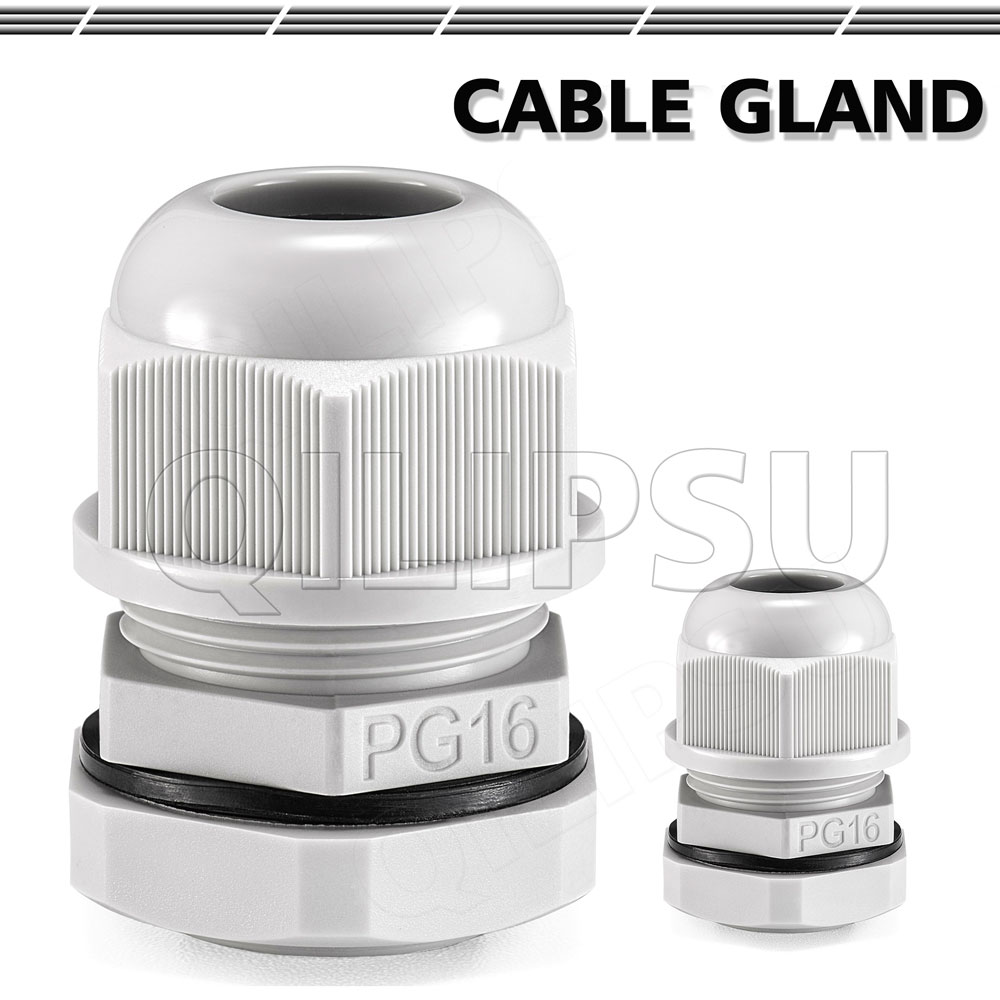

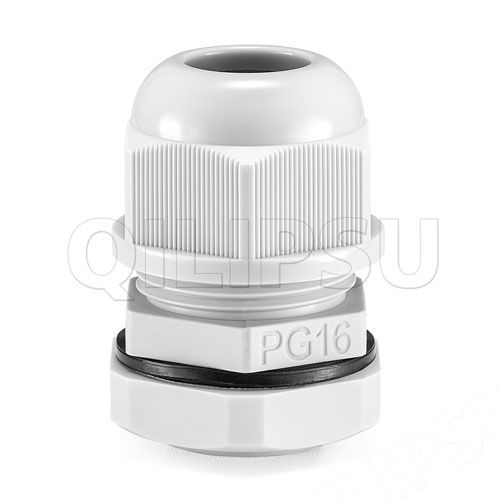

Name:PG16 White
Protection classIP68-10 Bar
Working temperature-40℃ to 100℃(In static state)
Cable Range8.5-14mm(0.34-0.55inch)
Thread O.D.22.5mm(0.89inch)
Thread length10.8mm(0.43inch)
MaterialsNylon PA66(Flammability UL94V-2)
Product Description







QILIPSU Cable Gland, Waterproof IP68 Adjustable Locknut for 4-8mm Cable Diameter (PG9, 20pcs, White)

Product description

Size:PG16  |  Color:White

Thread type: PG
Protection class: IP68-10 Bar
Working temperature: -40℃ to 100℃(In static state)
Cable Range: 8.5-14mm(0.34-0.55inch)
Thread O.D.: 22.5mm(0.89inch)
Thread length: 10.8mm(0.43inch)
Materials: Nylon PA66(Flammability UL94V-2)
* Please don't be hesitate to contact us for any customized size and type

  • Made of high-quality Polyamide PA66, designed with anti-looseness structure ensures reliable connection and long service life
  • IP68 protection class, resistant to salt water, weak acid, alcohol, oil, grease and common solvency
  • EPDM rubber gasket for sealing parts, as an excellent source for gaskets with ten years of quality assurance, it can reach to the Shore hardness more than 80 to make better waterproof performance
  • Applicable for Cable range 8.5-14mm(0.33-0.55inch), package includes 10 pcs cable glands with gaskets
  • Demand of customized size and type are welcome to contact us!
