Name:QL-171210AG Junction Box With Mounting Plate
ColorGrey
Material:ABS plastic
CertificateIP67,CE, RoHS
Dimensions175x125x100mm
Package Include1 x Junction box, 4 x Plastic screws ,1 x Mounting plate, 2 x Metal screws
Product Description

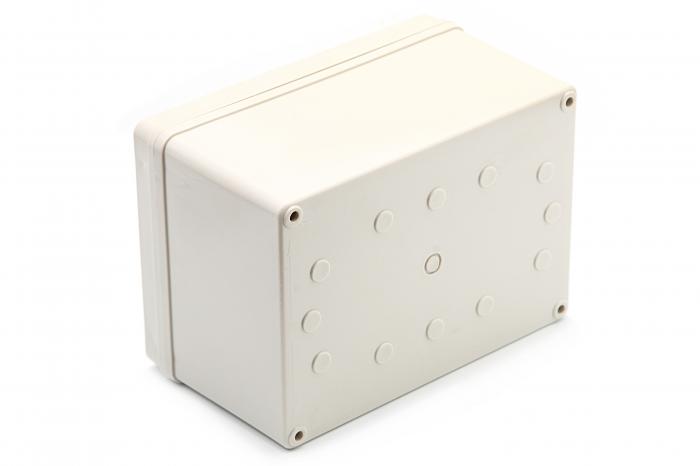

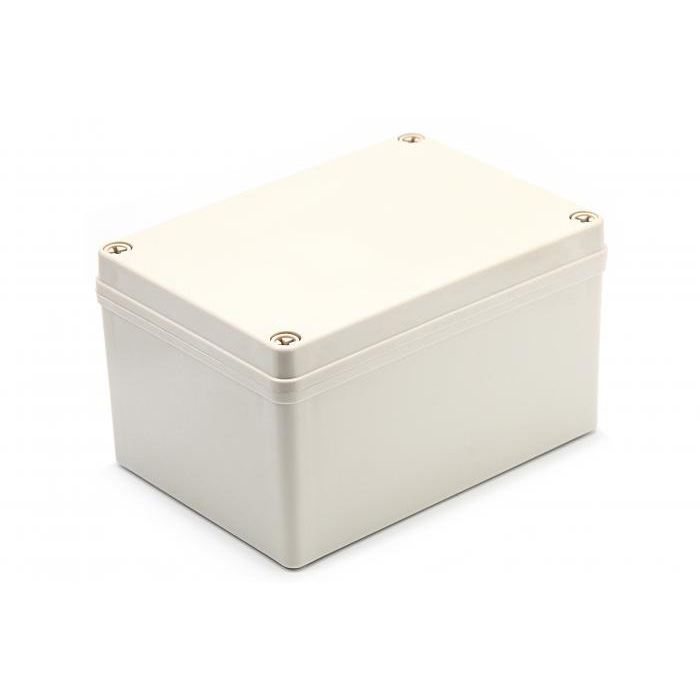

Junction Box ABS Plastic DIY Electrical Project Case IP67 Waterproof Dustproof Enclosure Grey 175x125x100mm(6.9"x4.9"x3.9")





Product description

Size:5.1‘'x3.1’'x2.8'‘

Description

* Effectively prevent electric leakage
* Plastic material screw, no rust problem

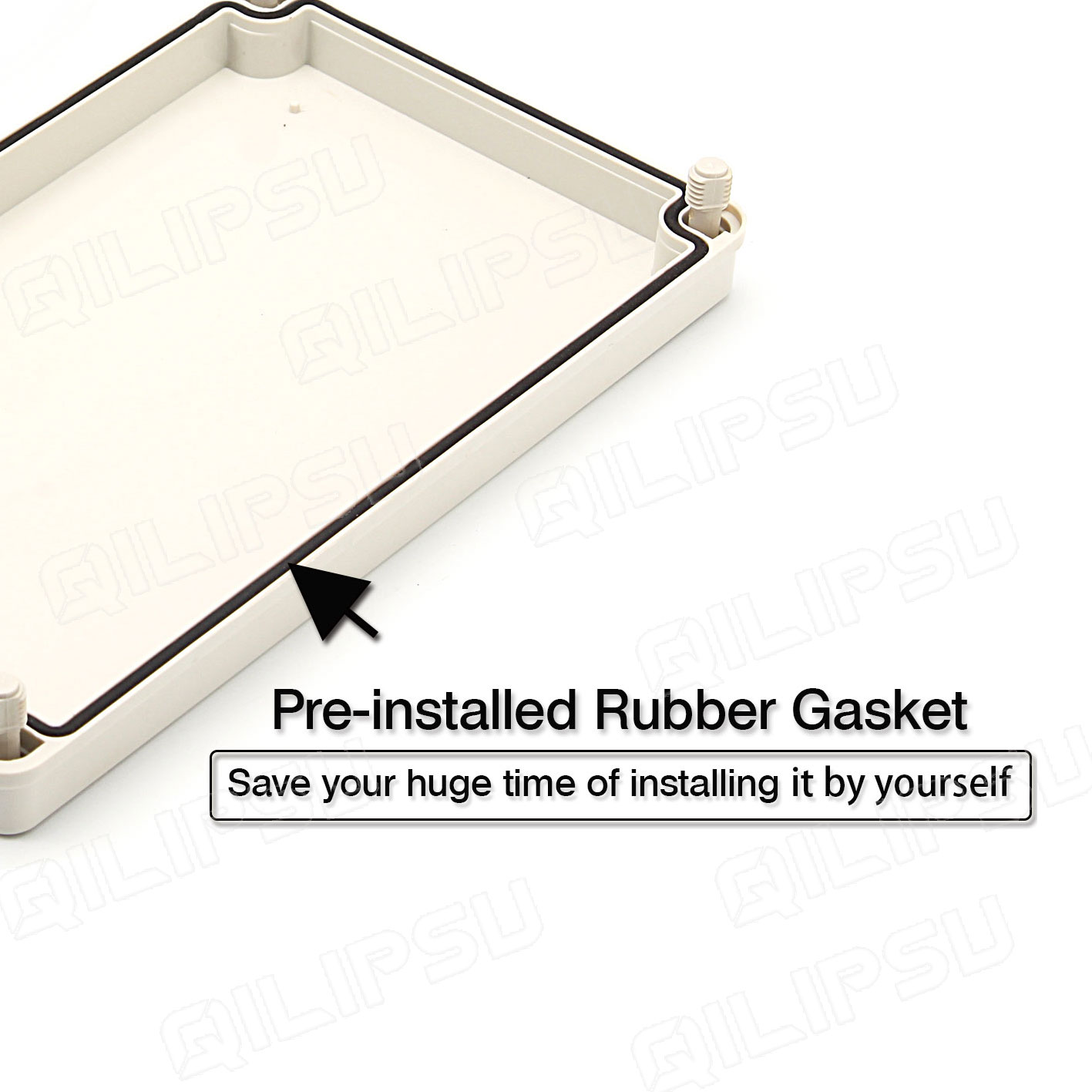

* Rubber sealing ring prevent dirt, dust, oil and water
* Erection column, it can installs more parts such like terminal and rail

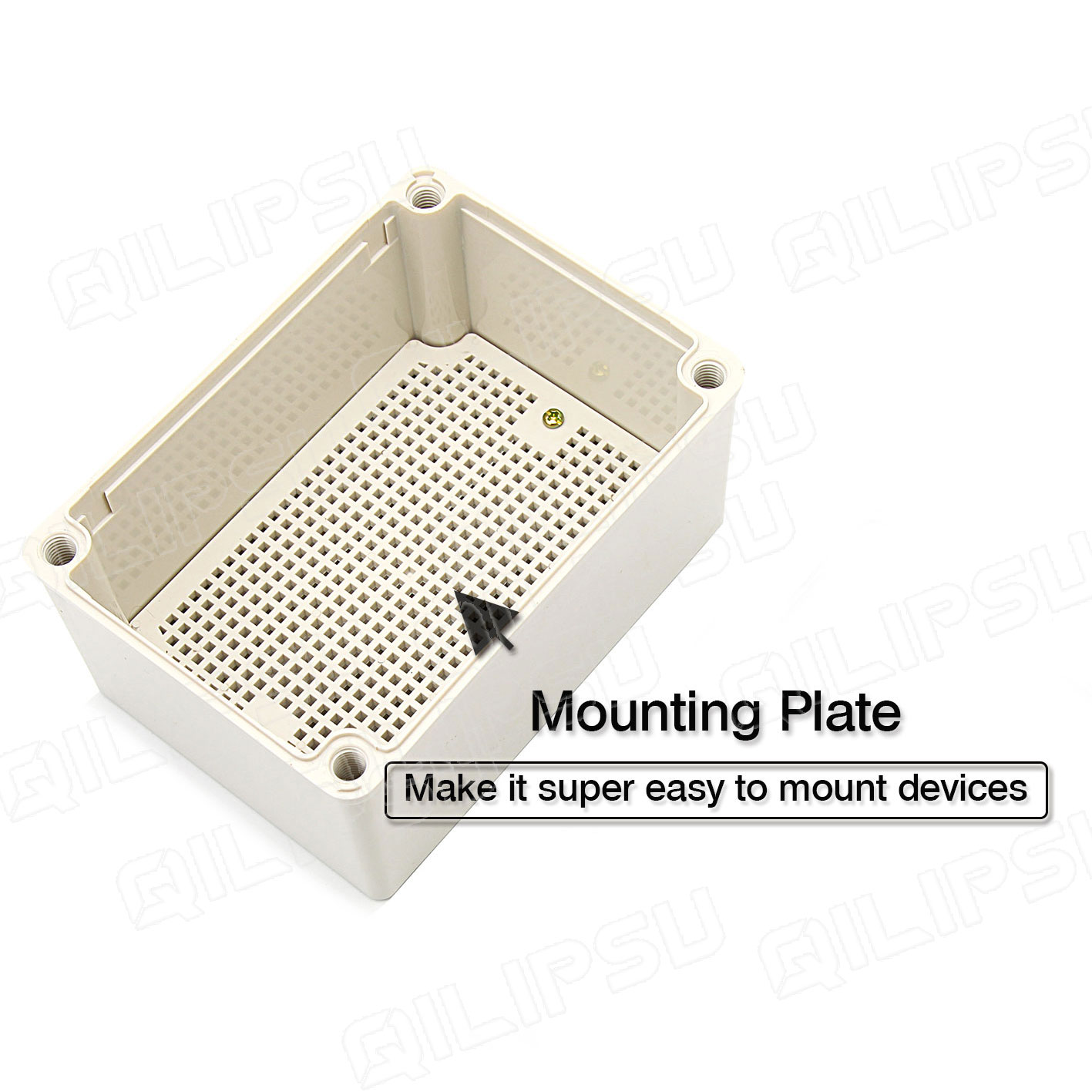

* More mounting post on the bottom, can easily and firmly mount rail and PCB board
* Designed to insulate and protect controls and components in both indoor & outdoor applications

Specifications

* Color: Grey
* Material: ABS plastic

* Certificate: CE, RoHS
* Waterproof Rating: IP67

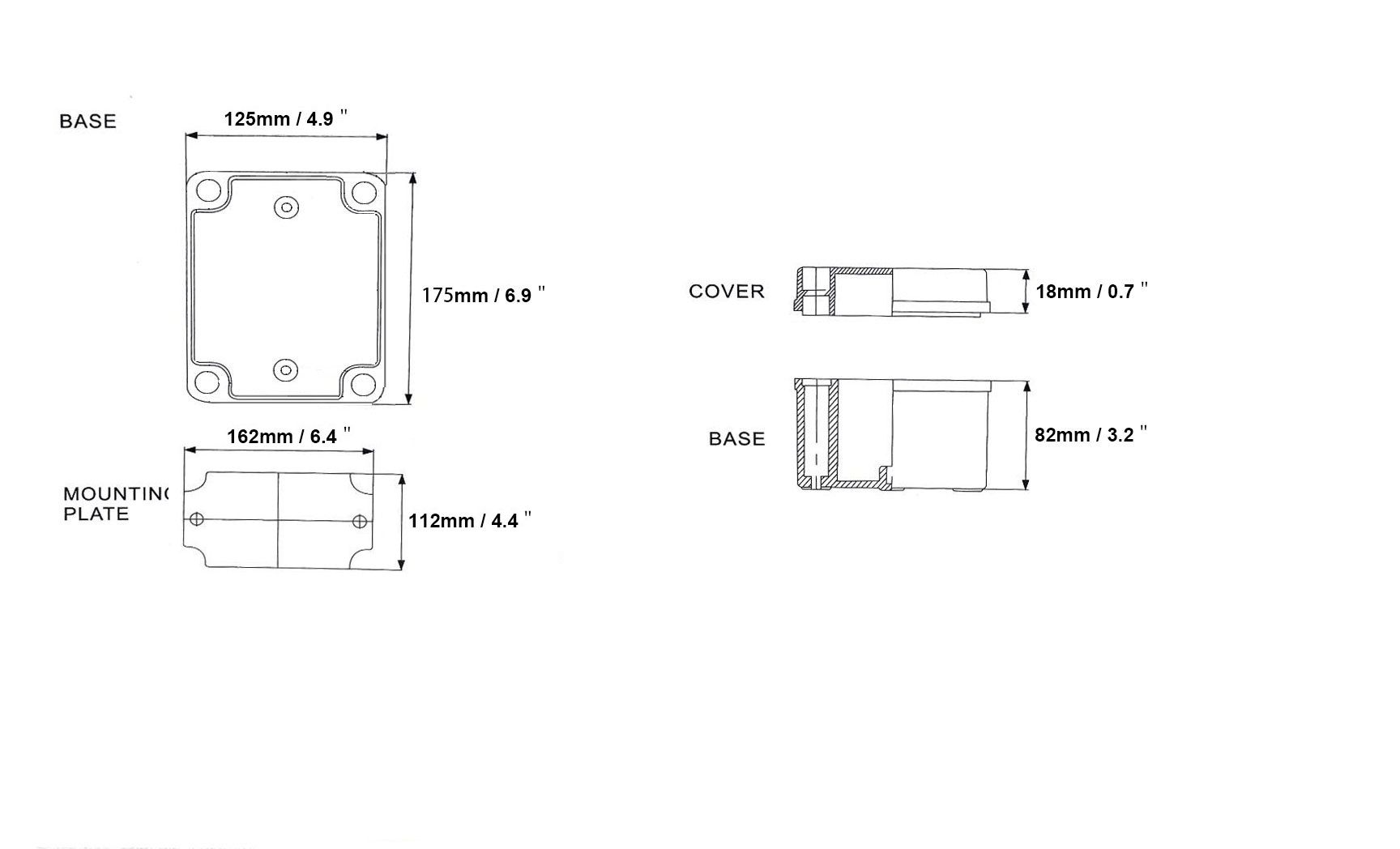

* Dimensions: 175x125x100mm(6.9"x4.9"x3.9")

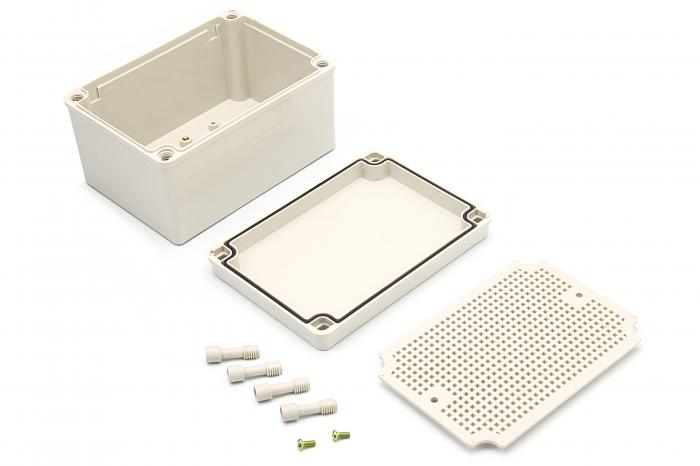

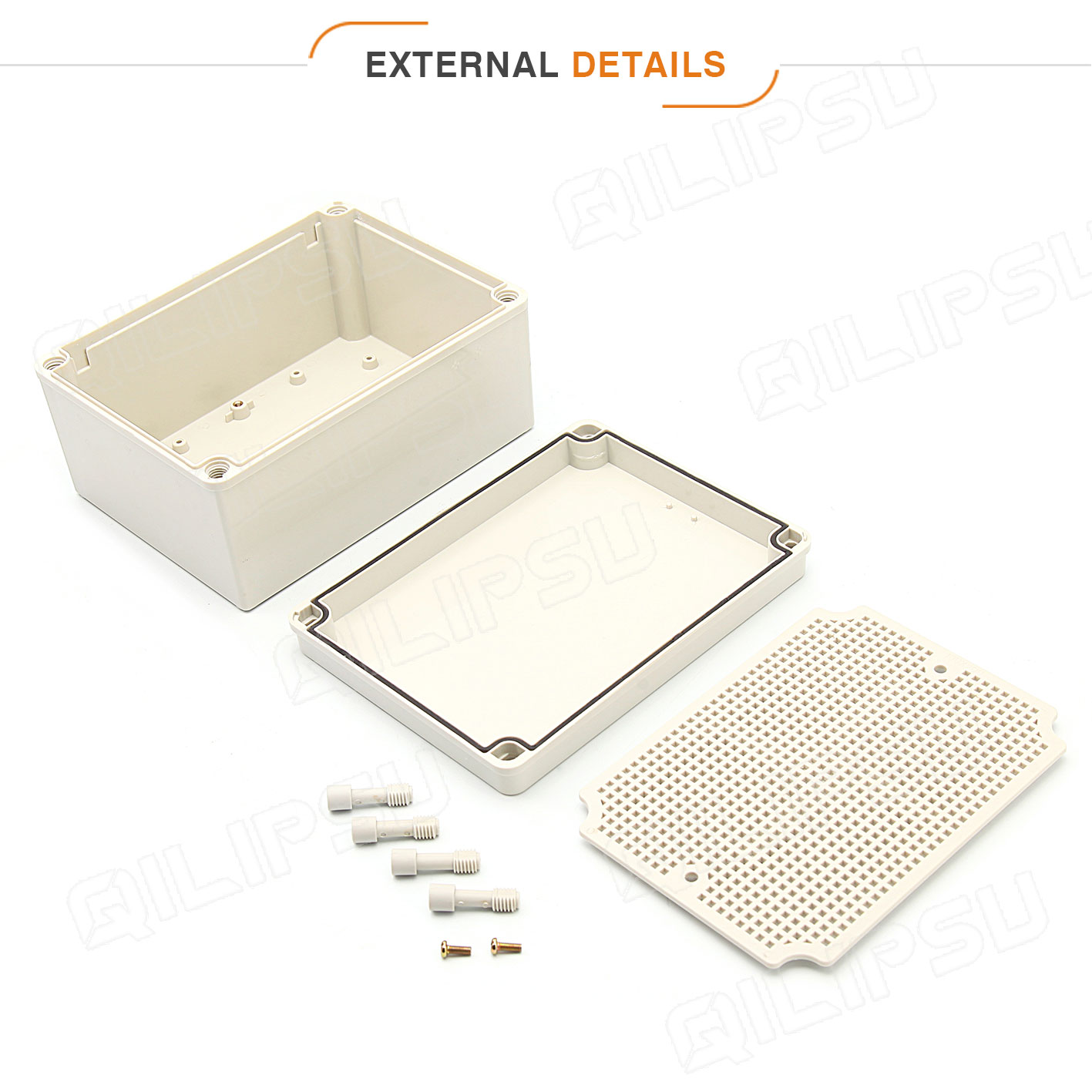

Package Include

* 1 x Junction box
* 4 x Plastic screws
* 1 x Mounting plate
* 2 x Metal screws for mounting plate
