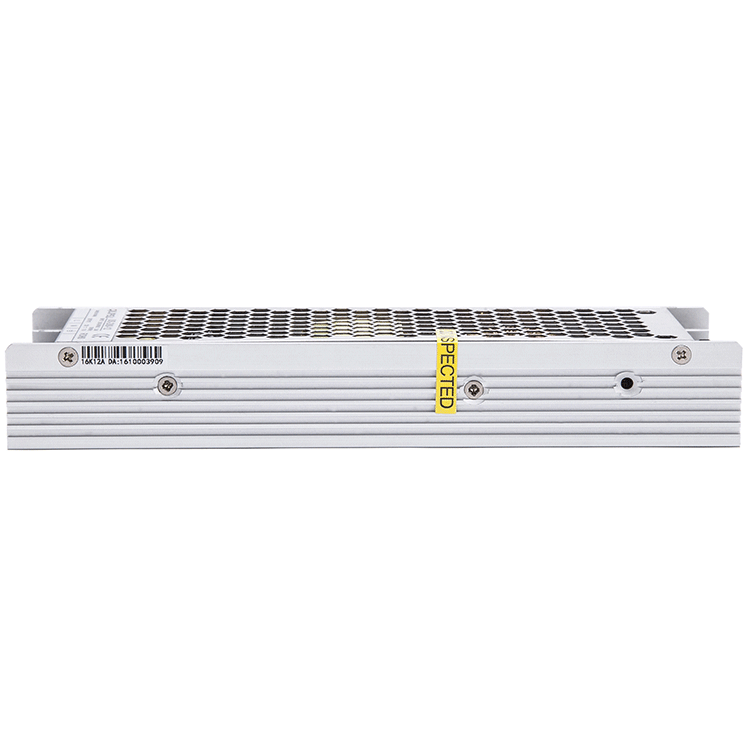

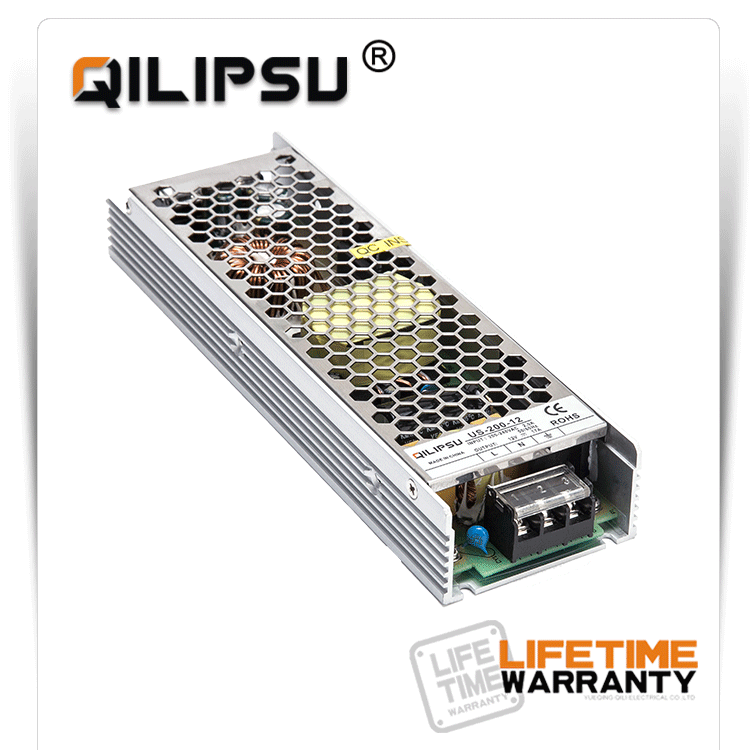

| Name: | US-200-24 24V 8.5A 200W ULTRA SLIM POWER SUPPLY |
|---|---|
| Output Power | 200W |
| Output Voltage | 24V |
| Output AMP | 8.5A |
| AC Input Voltage range | 220VAC 47~63Hz,254~373VDC |
| Warranty | Lifetime Warranty |
| Certificate | CE LVD EMC ROHS |
| Protection | OVER LOAD,OVER VOLTAGE |
Product Description
LIFETIME WARRANTY ULTRA SLIM 24V 8.5A CCTV switching power supply 200W SMPS 220V ac to 24V dc LED power supply
| MODEL | US-200-12 | US-200-24 | |
| OUTPUT | DC VOLTAGE | 12V | 24V |
| VOLTAGE TOLERANCE | ±2% | ±2% | |
| RATED CURRENT | 16.5A | 8.5A | |
| CURRENT RANGE | 0-16.5A | 0~8.5A | |
| RATED POWER | 198W | 204W | |
| RIPPLE & NOISE | 180mVp-p | 200mVp-p | |
| DC VOLTAGE ADJ. RANGE | ±10% | ±10% | |
| SETUP, RISE, HOLD TIME | 800ms,20ms,24ms/230VAC | ||
| INPUT | VOLTAGE RANGE | 220VAC 47~63Hz,254~373VDC | |
| AC CURRENT | 2.5A/230VAC | ||
| EFFICIENCY | 87% | 90% | |
| INRUSH CURRENT | Cold start 45A/230VAC | ||
| LEAKAGE CURRENT | <2.0mA/240VAC | ||
| PROTECTION | OVER LOAD | Rated output power110%~150%Start overload protection | |
| Protection type:hiccup mode,auto-recovery after fault condition is removed | |||
| ENVIRONMENT | WORKING TEMP, HUMIDITY | -20℃~+50℃;20%~90%RH(Please refer to“derating curve”) | |
| STORAGE TEMP, HUMIDITY | -40℃~+85℃;10%~95%RH Non-condensing | ||
| WITHSTAND VIBRATION | 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes | ||
| SAFETY | WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC | ||
| FIT STANDARD | SAFETY STANDARD | Compliance to UL1012,UL60950-1,GB4943 | |
| EMC STANDARD | Compliance to EN55022,EN61000-3-2,CLASSA | ||
| OTHERS | DIMENSION | 210*62*31mm(L*W*H) | |
| WEIGHT | 0.4kg | ||
| MTBF | 230K hrs min. MIL-HDBK-217F(25℃) | ||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. | ||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||
