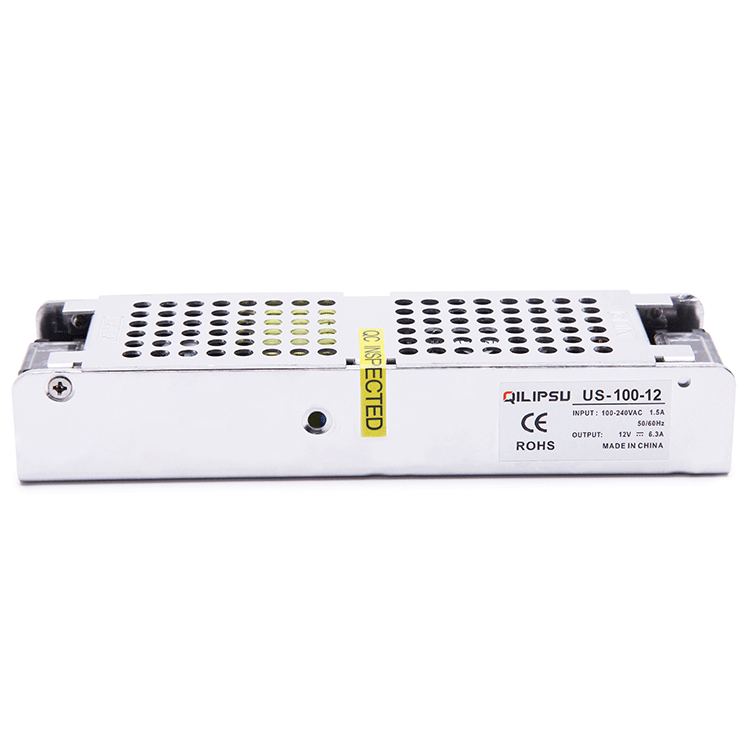

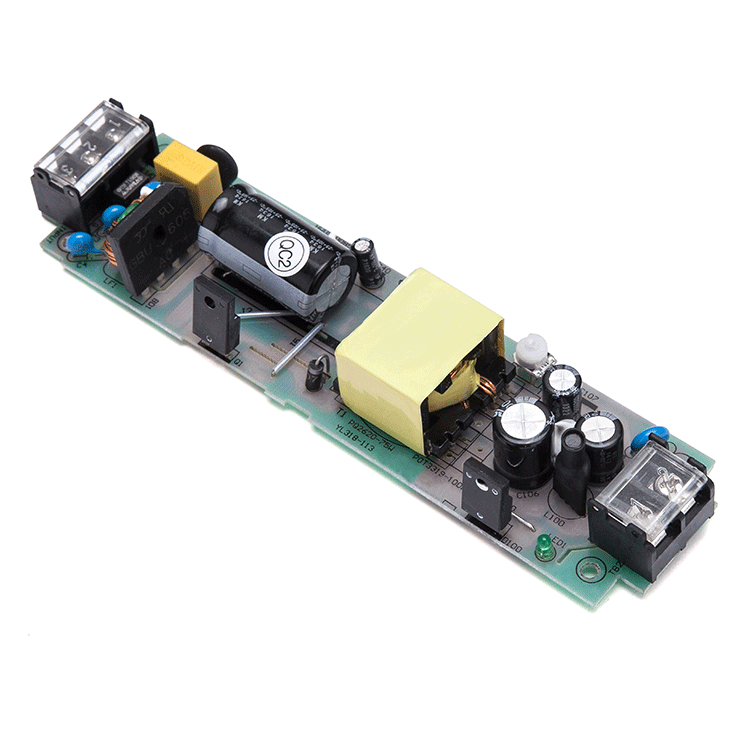

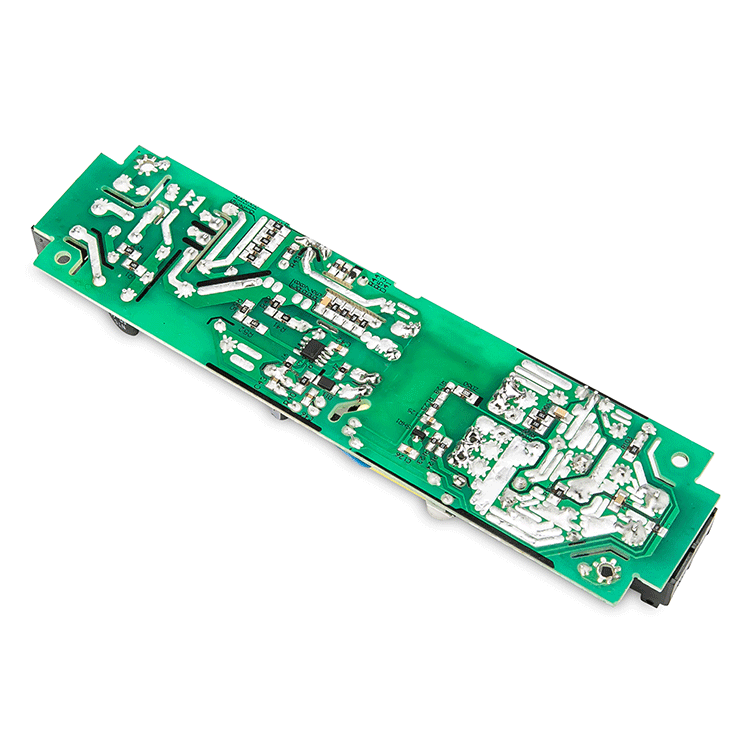

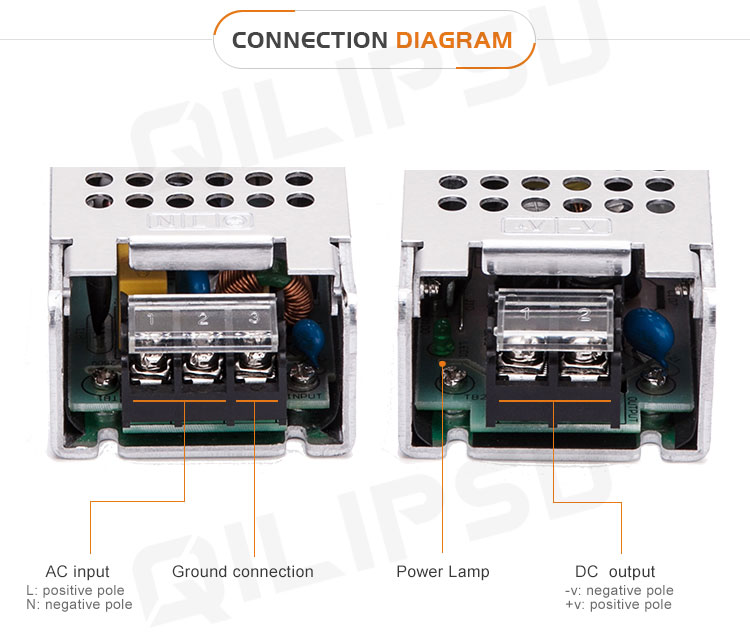

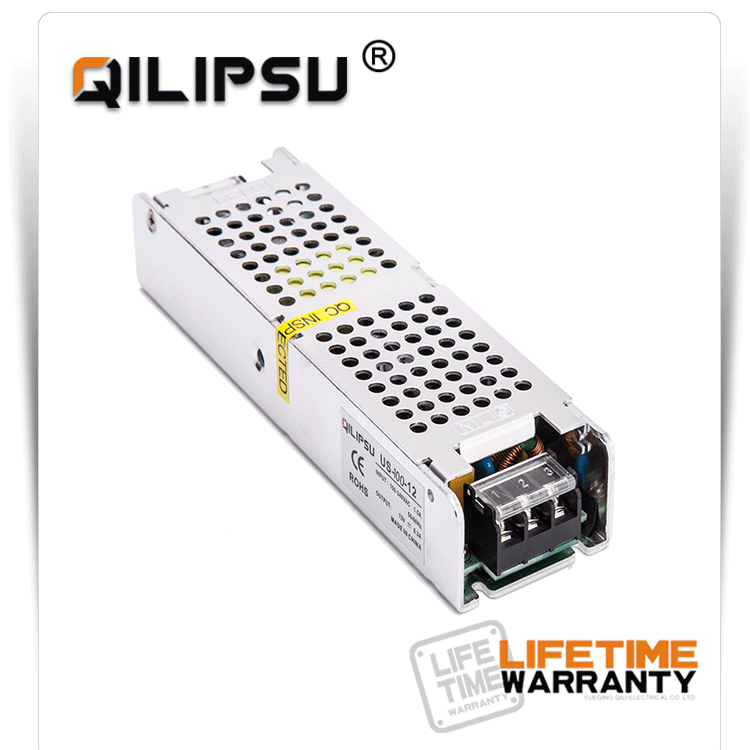

LIFETIME WARRANTY ULTRA SLIM  CCTV switching power supply

12V 8.3A  100W SMPS  ac to dc LED power supply



MODEL		US-100-12	US-100-24
OUTPUT	DC VOLTAGE	12V	24V
	VOLTAGE TOLERANCE	±2%	±2%
	RATED CURRENT	8.3A	4.2A
	CURRENT RANGE	0-8.3A	0~4.2A
	RATED POWER	99.6W	100.8W
	RIPPLE & NOISE	150mVp-p	180mVp-p
	DC VOLTAGE ADJ. RANGE	±10%	±10%
	SETUP, RISE, HOLD TIME	800ms,30ms,24ms/230VAC,1200ms,30ms,20ms/115VAC
INPUT	VOLTAGE RANGE	100~240VAC 47~63Hz,135~373VDC
	AC CURRENT	2.0A/115VAC  1.0A/230VAC
	EFFICIENCY	86%	88%
	INRUSH CURRENT	Cold start  45A/230VAC
	LEAKAGE CURRENT	<2.0mA/240VAC
PROTECTION	OVER LOAD	Rated output power110%~150%Start overload protection
		Protection type:hiccup mode,auto-recovery after fault condition is removed
ENVIRONMENT	WORKING TEMP, HUMIDITY	-20℃~+50℃;20%~90%RH(Please refer to“derating curve”)
	STORAGE TEMP,  HUMIDITY	-40℃~+85℃;10%~95%RH Non-condensing
	WITHSTAND VIBRATION	10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC
FIT STANDARD	SAFETY STANDARD	Compliance to UL1012,UL60950-1,GB4943
	EMC STANDARD	Compliance to EN55022,EN61000-3-2,CLASSA

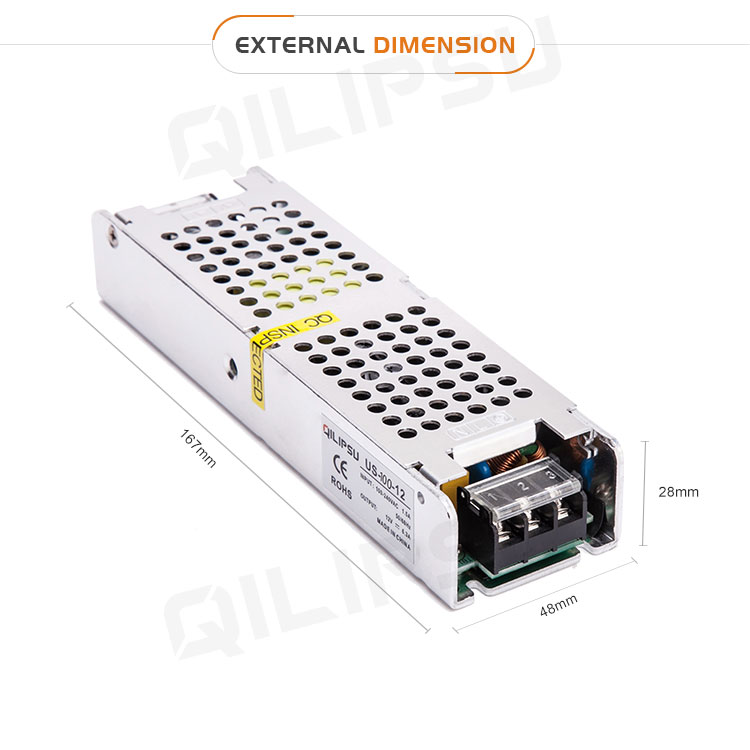

OTHERS	DIMENSION	167*48*28mm(L*W*H)
	WEIGHT	0.3kg
	MTBF	290K hrs min. MIL-HDBK-217F(25℃)
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
	3. Tolerance : includes set up tolerance, line regulation and load regulation.
