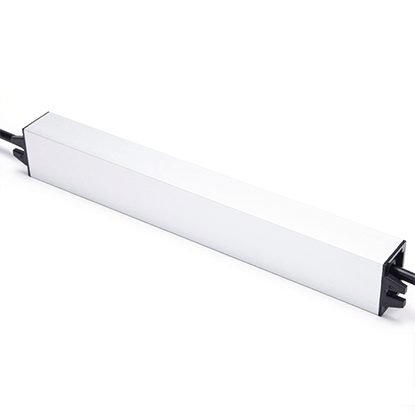

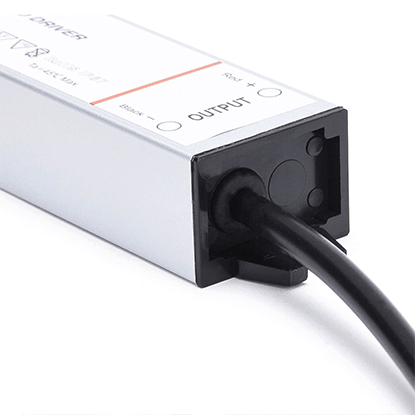

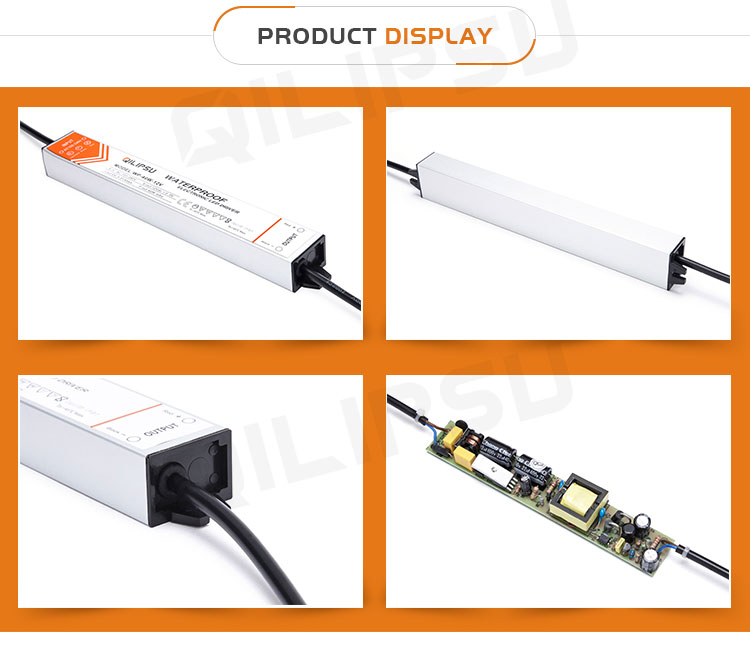

Name:WP-40-24 24V 1.66A 40W LED DRIVER IP67
Output Power40W
Output Voltage24V
Output AMP1.66A
AC Input Voltage range100~240VAC 47~63Hz,235~373VDC
Waterproof degreeIP67
Warrantylifetime
CertificateCE LVD EMC ROHS
Product Description

DOWNLOAD









LIFETIME WARRANTY constant voltage 220v ac to dc  24v 1.66a

40w waterproof LED driver IP67



MODEL WP-40-12 WP-40-24
OUTPUT DC VOLTAGE  12V 24V
VOLTAGE TOLERANCE  ±2% ±2%
RATED CURRENT 3.3A 1.66A
CURRENT RANGE 0-3.3A 0~1.66A
RATED POWER 40W 40W
RIPPLE & NOISE 100mVp-p 100mVp-p
SETUP, RISE, HOLD TIME 800ms,20ms,24ms/230VAC
INPUT VOLTAGE RANGE 100~240VAC 47~63Hz,235~373VDC
AC CURRENT 0.42A/230VAC
EFFICIENCY 81% 83%
INRUSH CURRENT Cold start  30A/230VAC
LEAKAGE CURRENT <0.5mA/240VAC
PROTECTION OVER LOAD Rated output power115%~150%Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
Over temperature When temperature of transistor inner node is over 150℃±10℃,Start over temp protection
Protection mode:cutoff output,auto-recovery after temperature become normal
ENVIRONMENT WORKING TEMP, HUMIDITY -20℃~+60℃;20%~90%RH(Please refer to“derating curve”)
STORAGE TEMP,  HUMIDITY -40℃~+85℃;10%~95%RH Non-condensing
WITHSTAND VIBRATION 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY WITHSTAND VOLTAGE I/P-O/P:1.5KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms/500VDC
FIT STANDARD SAFETY STANDARD Fit UL1012,TUV EN60950-1,  IP67
EMC STANDARD Fit EN55022,EN55024,CLASSA

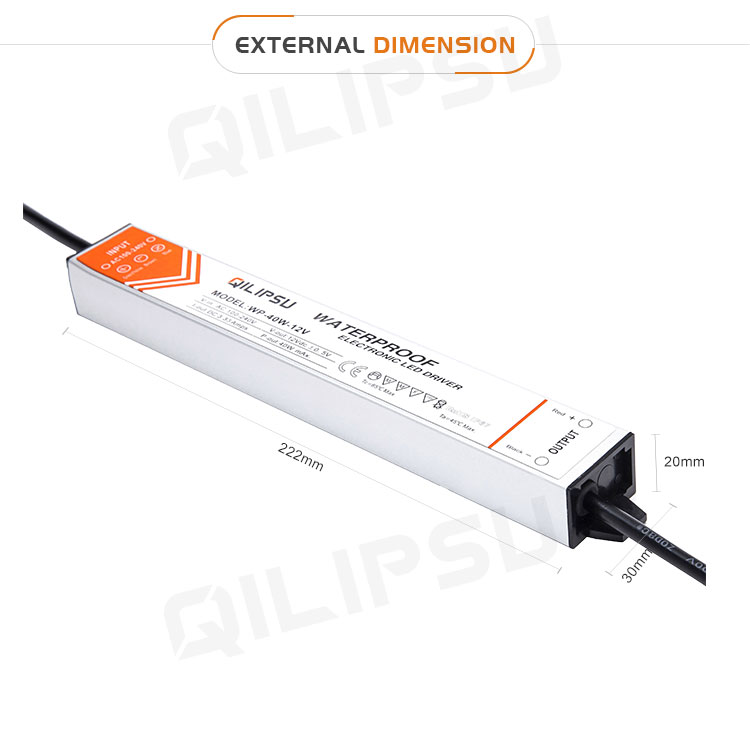

OTHERS DIMENSION 222*30*20mm(L*W*H)
WEIGHT 0.25kg
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
