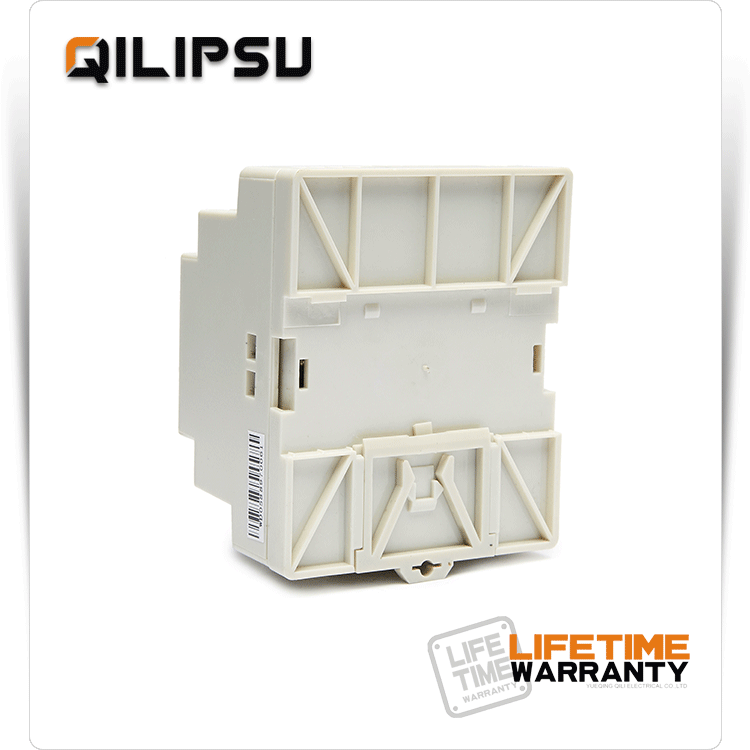

| Name: | DR-60-24 24V 2.5A 60W DIN RAIL POWER SUPPLY |
|---|---|
| Output Power | 60W |
| Output Voltage | 24V |
| Output AMP | 2.5A |
| AC Input Voltage range | 85~264VAC |
| Warranty | Lifetime Warranty |
| Certificate | CE LVD EMC ROHS |
| Protection | OVER LOAD,OVER VOLTAGE |
Product Description
LIFETIME WARRANTY 24V 2.5A 60W DIN RAIL power supply 220V ac to 24V dc DR power supply
| Model | DR-60-12 | DR-60-24 | |
| OUTPUT | DC voltage | 12V | 24V |
| Rated output current | 5A | 2.5A | |
| Output current range | 0-5A | 0-2.5A | |
| DC power | 60W | 60W | |
| Ripple and noise | 100mVp-p | 120mVp-p | |
| VOLTAGE ADJ. RANGE | 10.8 ~ 13.2V | 21.6 ~ 26.4V | |
| Voltage tolerance | ±1% | ±1% | |
| line regulation | ±1% | ±1% | |
| Load regulation | ±1% | ±1% | |
| Setup,rise time | 800ms,60ms/230VAC 1000MS,30MS/115VAC at full load | ||
| Hold up time | 50ms/230VAC 20ms/115VAC at full load | ||
| INPUT | AC voltage range | 85~264VAC | |
| Frequency range | 47-63Hz | ||
| Efficiency | 83% | 85% | |
| AC current | 1.5A/115VAC 0.75A/230VAC | ||
| Inrush current | COLD START 30A/115VAC 60A/230VAC | ||
| Leakage current | <1mA/240VAC | ||
| PROTECTION | Overload | Above 105% rated output power | |
| Protection type:Hiccup mode,recovers automatically after fault condition is removed | |||
| Over-voltage | 13.8-16.2V | 27.6-32.4V | |
| protection type:Shut down o/p voltage,re-power on torecover | |||
| ENVIRONMENT | Working temp. | -10~+60℃ | |
| Working humidity | 20~90% RH non-condensing | ||
| store temp.,humidity | -20~+85℃,10~95% RH | ||
| Temp. coefficient | ±0.03%/°C (0~50°C ) | ||
| OTHER | Overall dimension | 78*93*56 mm | |
| Weight | 0.27Kg | ||
| CERTIFICATE | CE EMC Authenticate | EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008 | |
| EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009 | |||
| CE LVD Authenticate | EN61347-1:2008T A1:2001 EN61347-2-13:2006 | ||
| EN60950-1:2006+A11:2009+A1:2010+A12:2001 | |||
| ROHS Authenticate | EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996 | ||
| EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008 | |||
