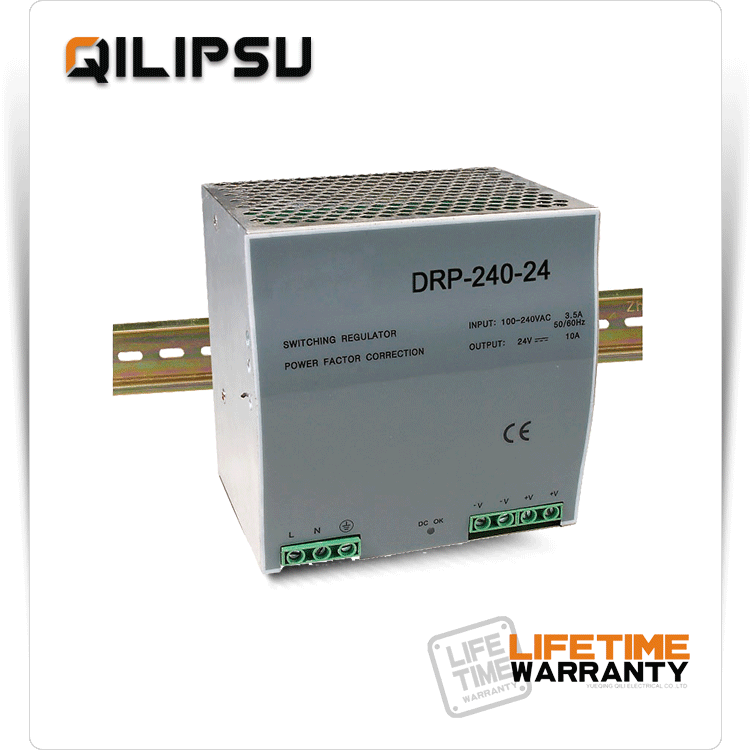

Name:DR-240-24 24V 10A 240W DIN RAIL POWER SUPPLY
Output Power240W
Output Voltage24V
Output AMP10A
AC Input Voltage range100~240VAC,135~373VDC
WarrantyLifetime Warranty
CertificateCE LVD EMC ROHS
Product Description


LIFETIME WARRANTY 24V 10A 240W DIN RAIL power supply 220V ac to 24V dc DR power supply



Model DR-240-24 DR-240-48
OUTPUT DC  voltage 24V 48V
Rated output current 10A 5A
Output current range 0-10A 0-5A
DC power 240W 240W
Ripple and noise 120mVp-p 150mVp-p
VOLTAGE ADJ. RANGE 21.6 ~ 26.4V 43.2 ~ 52.8V
Voltage tolerance   ±1% ±1%
line regulation ±1% ±1%
Load regulation ±1% ±1%
Setup,rise time 800ms,60ms/230VAC   1000MS,30MS/115VAC at full load
Hold up time 50ms/230VAC   20ms/115VAC at full load
INPUT AC voltage range 100-240VAC,135~373VDC
Frequency range 47-63Hz
Efficiency 85% 86%
AC current 3.5A/115VAC  1.8A/230VAC
Inrush current COLD START 30A/115VAC   60A/230VAC
Leakage current <3.5mA/240VAC
PROTECTION Overload Above 105% rated output power
Protection type:Hiccup mode,recovers automatically after fault condition is removed
Over-voltage 27.6-32.4V 55.2-64.81V
protection type:Shut down o/p voltage,re-power on torecover
ENVIRONMENT Working temp.  -10~+60℃
Working humidity 20~90% RH non-condensing
store temp.,humidity  -20~+85℃,10~95% RH
Temp. coefficient  ±0.03%/°C (0~50°C )

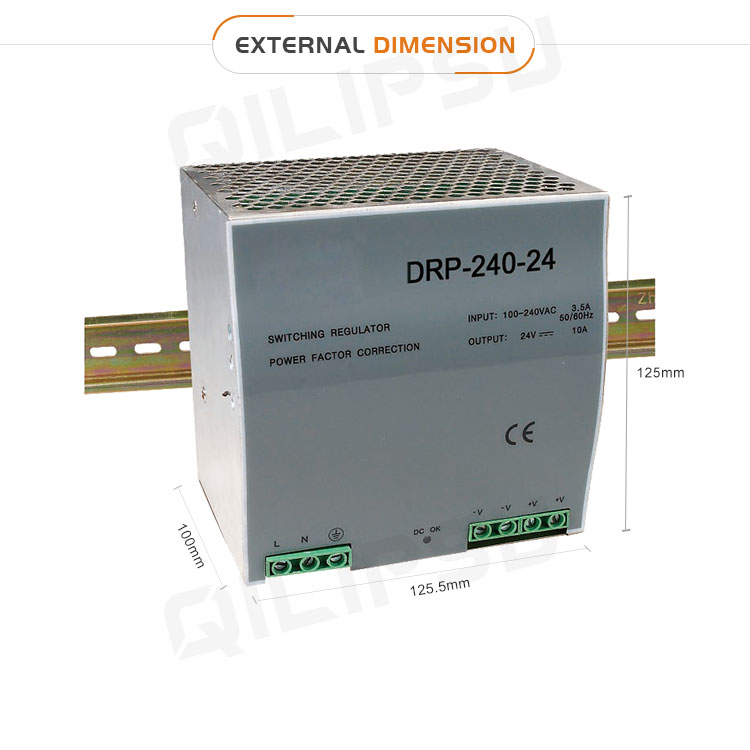

OTHER  Overall dimension 125.5*125*100 mm
Weight 1.15Kg
CERTIFICATE CE EMC Authenticate EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009
CE LVD Authenticate EN61347-1:2008T A1:2001 EN61347-2-13:2006
ROHS Authenticate EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996
EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008
