Name:DR-120-12 12V 10A 120W DIN RAIL POWER SUPPLY
Output Power120W
Output Voltage12V
Output AMP10A
AC Input Voltage range100~240VAC,135~373VDC
WarrantyLifetime Warranty
CertificateCE LVD EMC ROHS
ProtectionOVER LOAD,OVER VOLTAGE
Product Description








LIFETIME WARRANTY 12V 10A 120W DIN RAIL power supply

220V ac to 12V dc DR power supply





Model DR-120-12 DR-120-24
OUTPUT DC  voltage 12V 24V
Rated output current 10A 5A
Output current range 0-10A 0-5A
DC power 120W 120W
Ripple and noise 100mVp-p 120mVp-p
VOLTAGE ADJ. RANGE 10.8 ~ 13.2V 21.6 ~ 26.4V
Voltage tolerance   ±1% ±1%
line regulation ±1% ±1%
Load regulation ±1% ±1%
Setup,rise time 800ms,60ms/230VAC   1000MS,30MS/115VAC at full load
Hold up time 50ms/230VAC   20ms/115VAC at full load
INPUT AC voltage range 100-240VAC,135~373VDC
Frequency range 47-63Hz
Efficiency 79% 81%
AC current 3.3A/115VAC    2A/230VAC
Inrush current COLD START 30A/115VAC   60A/230VAC
Leakage current <1mA/240VAC
PROTECTION Overload Above 105% rated output power
Protection type:Hiccup mode,recovers automatically after fault condition is removed
Over-voltage 13.8-16.2V 27.6-32.4V
protection type:Shut down o/p voltage,re-power on torecover
ENVIRONMENT Working temp.  -10~+60℃
Working humidity 20~90% RH non-condensing
store temp.,humidity  -20~+85℃,10~95% RH
Temp. coefficient  ±0.03%/°C (0~50°C )

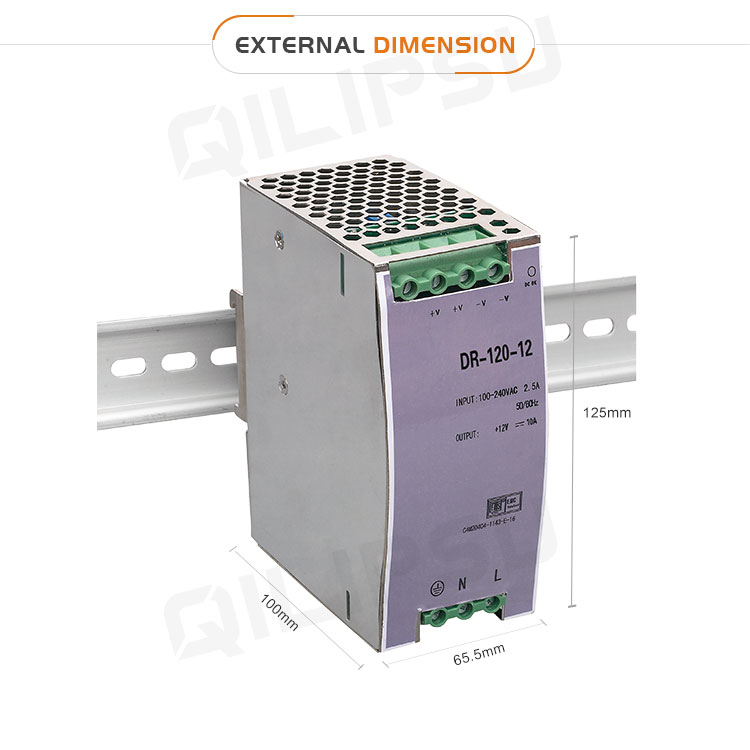

OTHER  Overall dimension 65.5*125*100 mm
Weight 0.8Kg
CERTIFICATE CE EMC Authenticate EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009
CE LVD Authenticate EN61347-1:2008T A1:2001 EN61347-2-13:2006
EN60950-1:2006+A11:2009+A1:2010+A12:2001
ROHS Authenticate EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996
EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008
