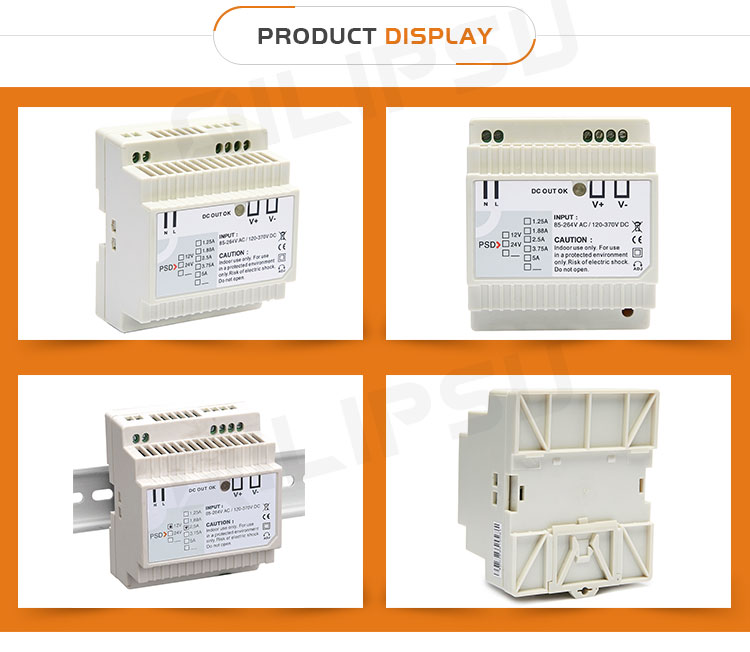

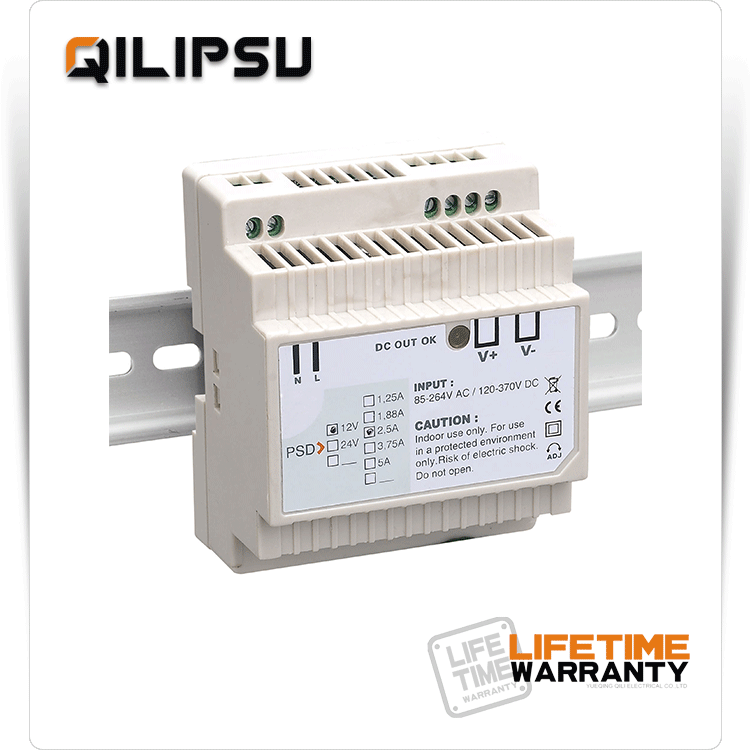

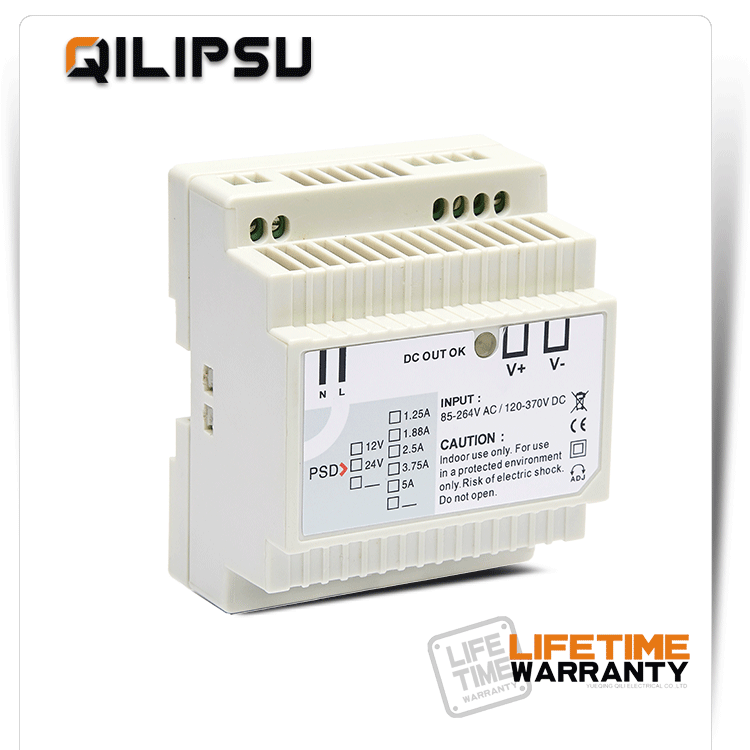

Name:DR-30-12 12V 2.5A DIN RAIL POWER SUPPLY
Output Power30W
Output Voltage12V
Output AMP2.5A
AC Input Voltage range85~264VAC
WarrantyLifetime Warranty
CertificateCE LVD EMC ROHS
ProtectionOVER LOAD,OVER VOLTAGE
Product Description









LIFETIME WARRANTY 12V 2.5A 30W DIN RAIL power supply ,LED DRIVER



Model DR-30-12 DR-30-24
OUTPUT DC  voltage 12V 24V
Rated output current 2.5A 1.25A
Output current range 0-2.5A 0-1.25A
DC power 30W 30W
Ripple and noise 120mVp-p 150mVp-p
VOLTAGE ADJ. RANGE 10.8 ~ 13.2V 21.6 ~ 26.4V
Voltage tolerance   ±1% ±1%
line regulation ±1% ±1%
Load regulation ±1% ±1%
Setup,rise time 800ms,60ms/230VAC   1000MS,30MS/115VAC at full load
Hold up time 50ms/230VAC   20ms/115VAC at full load
INPUT AC voltage range 85~264VAC
Frequency range 47-63Hz
Efficiency 83% 85%
AC current 1.5A/115VAC    0.75A/230VAC
Inrush current COLD START 30A/115VAC   60A/230VAC
Leakage current <1mA/240VAC
PROTECTION Overload Above 105% rated output power
Protection type:Hiccup mode,recovers automatically after fault condition is removed
Over-voltage 13.8-16.2V 27.6-32.4V
protection type:Shut down o/p voltage,re-power on torecover
ENVIRONMENT Working temp.  -10~+60℃
Working humidity 20~90% RH non-condensing
store temp.,humidity  -20~+85℃,10~95% RH
Temp. coefficient  ±0.03%/°C (0~50°C )
OTHER  Overall dimension 78*93*56 mm
Weight 0.27Kg
CERTIFICATE CE EMC Authenticate EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009
CE LVD Authenticate EN61347-1:2008T A1:2001 EN61347-2-13:2006
EN60950-1:2006+A11:2009+A1:2010+A12:2001
ROHS Authenticate EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996
EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008
