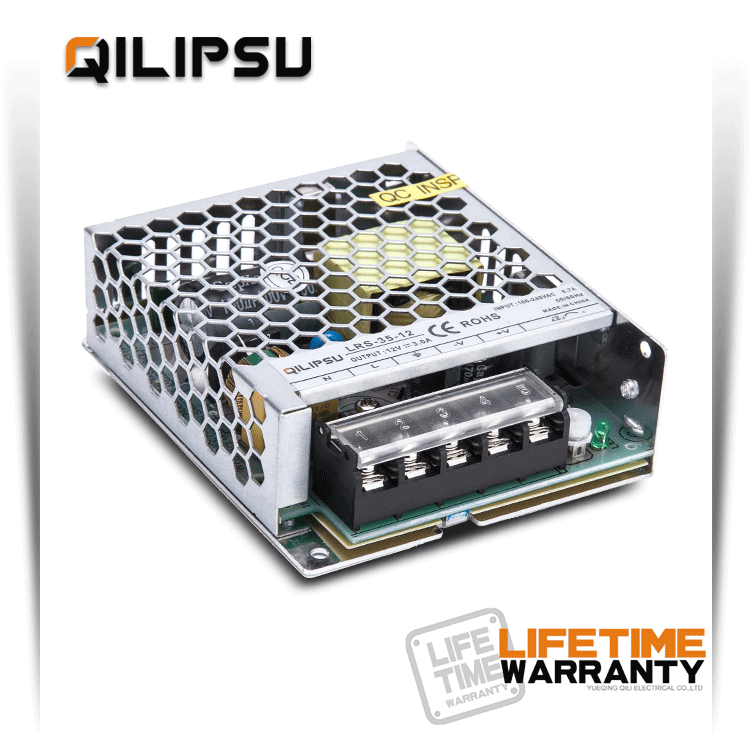

Name:LRS-35-12 12V 3A 35W LRS POWER SUPPLY
Output Power35W
Output Voltage12V
Output AMP3A
AC Input Voltage range100~240VAC ,127~373VDC(Withstand 300VAC surge input for 5 second)
WarrantyLifetime Warranty
CertificateCE LVD EMC ROHS
ProtectionOver Load
Product Description










LIFETIME WARRANTY LRS series 12V 3A CCTV switching power supply

35W SMPS 220V ac to 12V dc LED power supply



MODEL LRS-35-5 LRS-35-12 LRS-35-24
OUTPUT DC VOLTAGE  5V 12V 24V
RATED CURRENT 7A 3A 1.5A
CURRENT RANGE 0-7A 0~3A 0~1.5A
RATED POWER 35W 36W 36W
RIPPLE & NOISE 100mVp-p 120mVp-p 150mVp-p
DC VOLTAGE ADJ. RANGE ±10% ±10% ±10%
VOLTAGE TOLERANCE ±3% ±2% ±1%
LINE REGULATION ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±2% ±0.5% ±0.5%
SETUP, RISE, HOLD TIME 800ms,30ms,30ms/230VAC(full load)
INPUT VOLTAGE RANGE 100~240VAC ,127~373VDC(Withstand 300VAC surge input for 5 second)
FREQUENCY RANGE 47~63Hz
AC CURRENT 0.7A/115VAC 0.42A/230VAC
EFFICIENCY 83% 86% 88%
INRUSH CURRENT Cold start 45A/230VAC
LEAKAGE CURRENT <0.75mA/240VAC
PROTECTION OVER LOAD Rated output power110%~150% Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
OVER VOLTAGE Rated output power115%~135% Start over voltage protection
Protection type:cut off the output,auto-recovery after fault condition is removed
ENVIRONMENT WORKING TEMPERATURE -30℃~+70℃(Please refer to“derating curve”)
WORKING HUMIDITY 20%~90%RH Non-condensing
STORAGE TEMP,  HUMIDITY -40℃~+85℃;10%~95%RH Non-condensing
WITHSTAND VIBRATION 10~500Hz,3G 10min./1Cycle,Period for 60min,Each axes
SAFETY WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25℃/70%RH
FIT STANDARD SAFETY STANDARD Compliance to UL60950-1,TUV EN60950-1,GB4973
EMC STANDARD Compliance to EN55022(CISPR22)Class B,GB9254 Class B,EN55014,EN61000-3-2,3
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024,EN61000-6-1

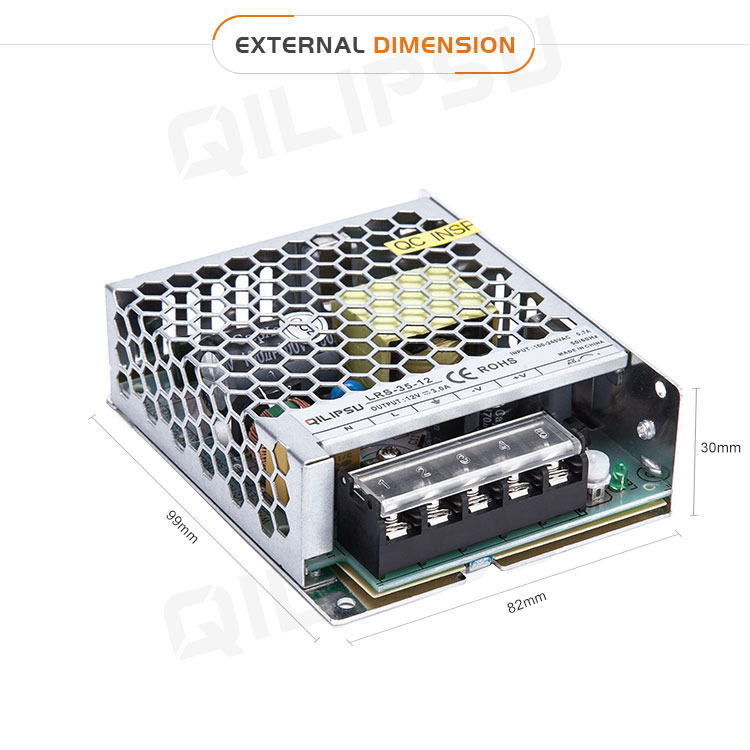

OTHERS DIMENSION 99*82*30(L*W*H)
WEIGHT 0.23kg
MTBF ≥720K hrs min. MIL-HDBK-217F(25℃)
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
