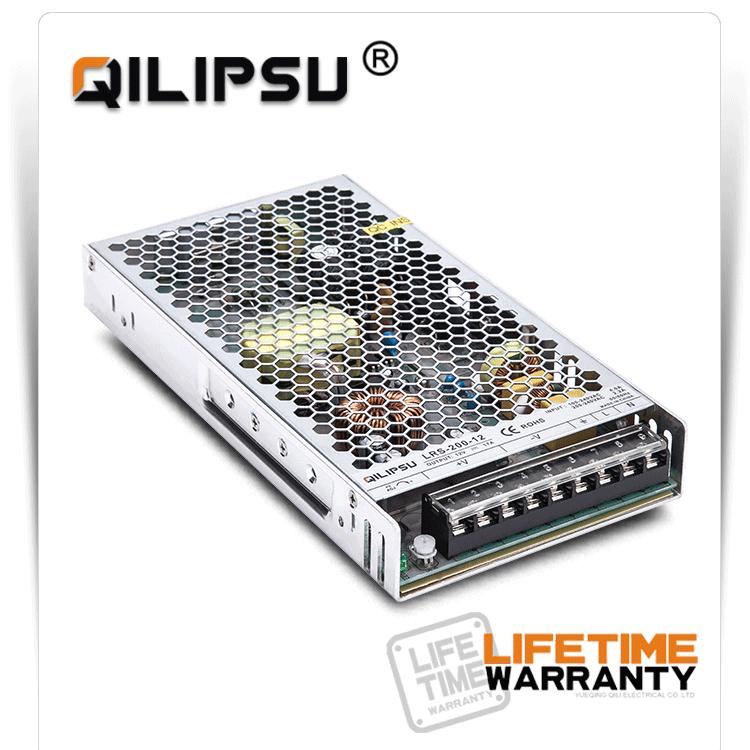

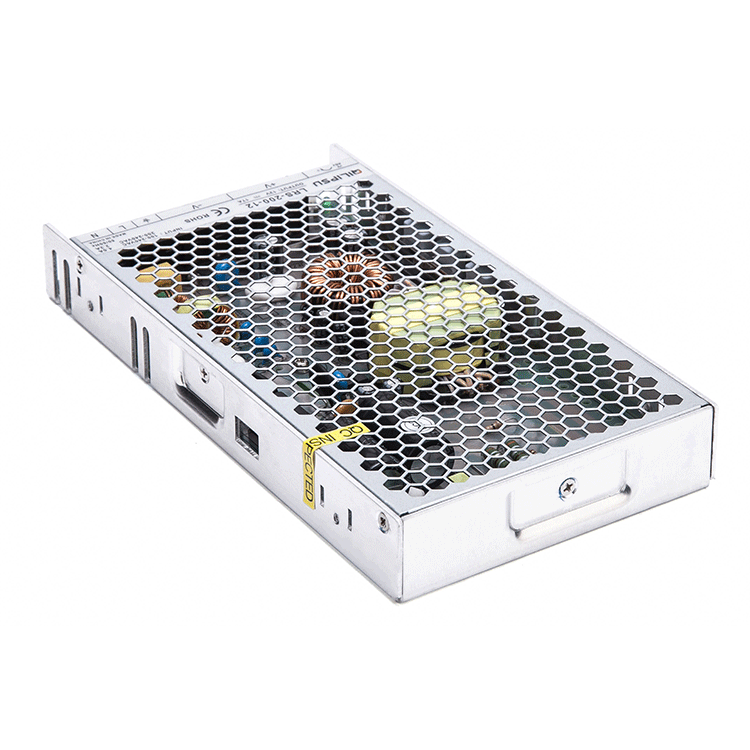

Name:LRS-200-12 12V 17A 200W LRS POWER SUPPLY
Output Power200W
Output Voltage12V
Output AMP17A
AC Input Voltage range90~132VAC/180~264VAC(selected by switch) ,240~373VDC
WarrantyLifetime Warranty
CertificateCE LVD EMC ROHS
ProtectionOVER LOAD,OVER VOLTAGE
Product Description









LIFETIME WARRANTY LRS series  CCTV switching power supply

200W 12V 17A  SMPS LED power supply





MODEL LRS-200-5 LRS-200-12 LRS-200-24
OUTPUT DC VOLTAGE  5V 12V 24V
RATED CURRENT 40A 17A 8.8A
CURRENT RANGE 0-40A 0~17A 0~8.8A
RATED POWER 200W 204W 211.2W
RIPPLE & NOISE 150mVp-p 150mVp-p 150mVp-p
DC VOLTAGE ADJ. RANGE ±10% ±10% ±10%
VOLTAGE TOLERANCE ±3% ±2% ±1%
LINE REGULATION ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±2% ±1% ±0.5%
SETUP, RISE, HOLD TIME 800ms,50ms,16ms/230VAC(full load)
INPUT VOLTAGE RANGE 90~132VAC/180~264VAC(selected by switch) ,240~373VDC( Withstand 300VAC surge input for 5 second)
FREQUENCY RANGE 47~63Hz
AC CURRENT 4.0A/115VAC 2.2A/230VAC
EFFICIENCY 85% 87% 89%
INRUSH CURRENT Cold start55A/230VAC
LEAKAGE CURRENT <2mA/240VAC
PROTECTION OVER LOAD Rated output power110%~140% Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
OVER VOLTAGE Rated output power115%~135% Start over voltage protection
Protection type:cut off the output,auto-recovery after fault condition is removed
OVER TEMPERATURE 100℃±10℃(RTH3 detect beside magnetic core)
Protection type:cut off the output,auto-recovery after the temperature become normal
ENVIRONMENT WORKING TEMPERATURE -25℃~+70℃(Please refer to“derating curve”)
WORKING HUMIDITY 20%~90%RH Non-condensing
STORAGE TEMP,  HUMIDITY -40℃~+85℃;10%~95%RH Non-condensing
WITHSTAND VIBRATION 10~500Hz,3G 10min./1Cycle,Period for 60min,Each axes
SAFETY WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25℃/70%RH
FIT STANDARD SAFETY STANDARD Compliance to UL60950-1,TUV EN60950-1,GB4973
EMC STANDARD Compliance to EN55022(CISPR22)Class B,GB9254 Class B,EN55014,EN61000-3-2,3
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024,EN61000-6-1

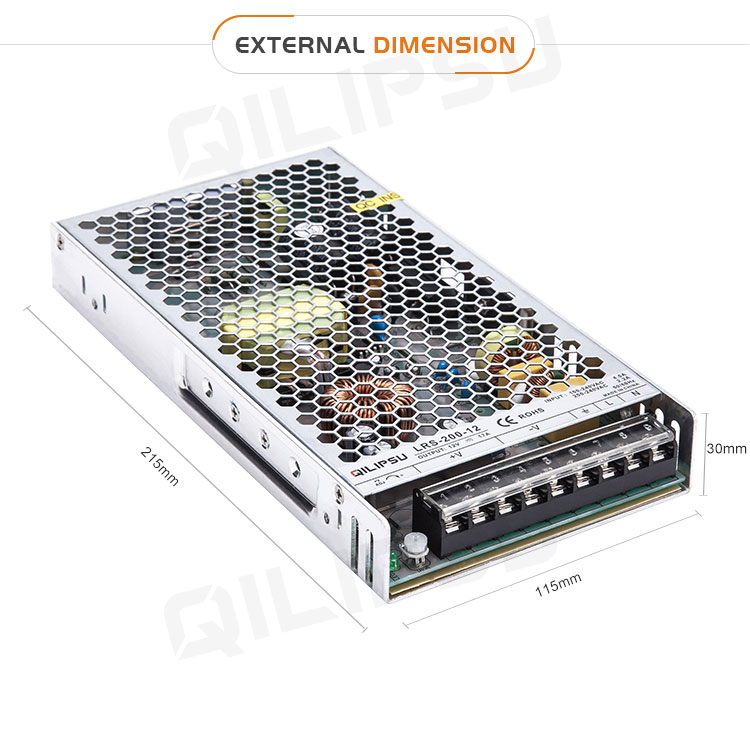

OTHERS DIMENSION 215*115*30(L*W*H)
WEIGHT 0.66kg
MTBF ≥320K hrs min. MIL-HDBK-217F(25℃)
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
