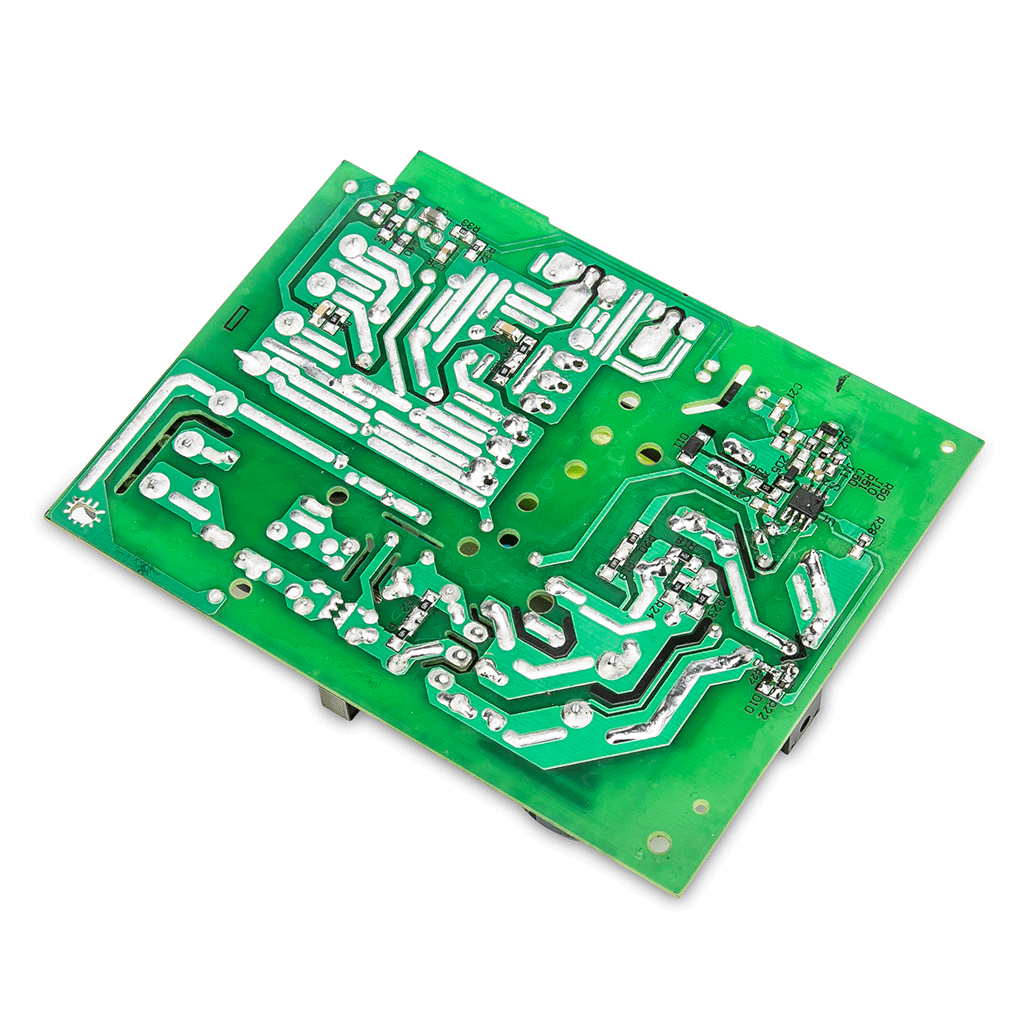

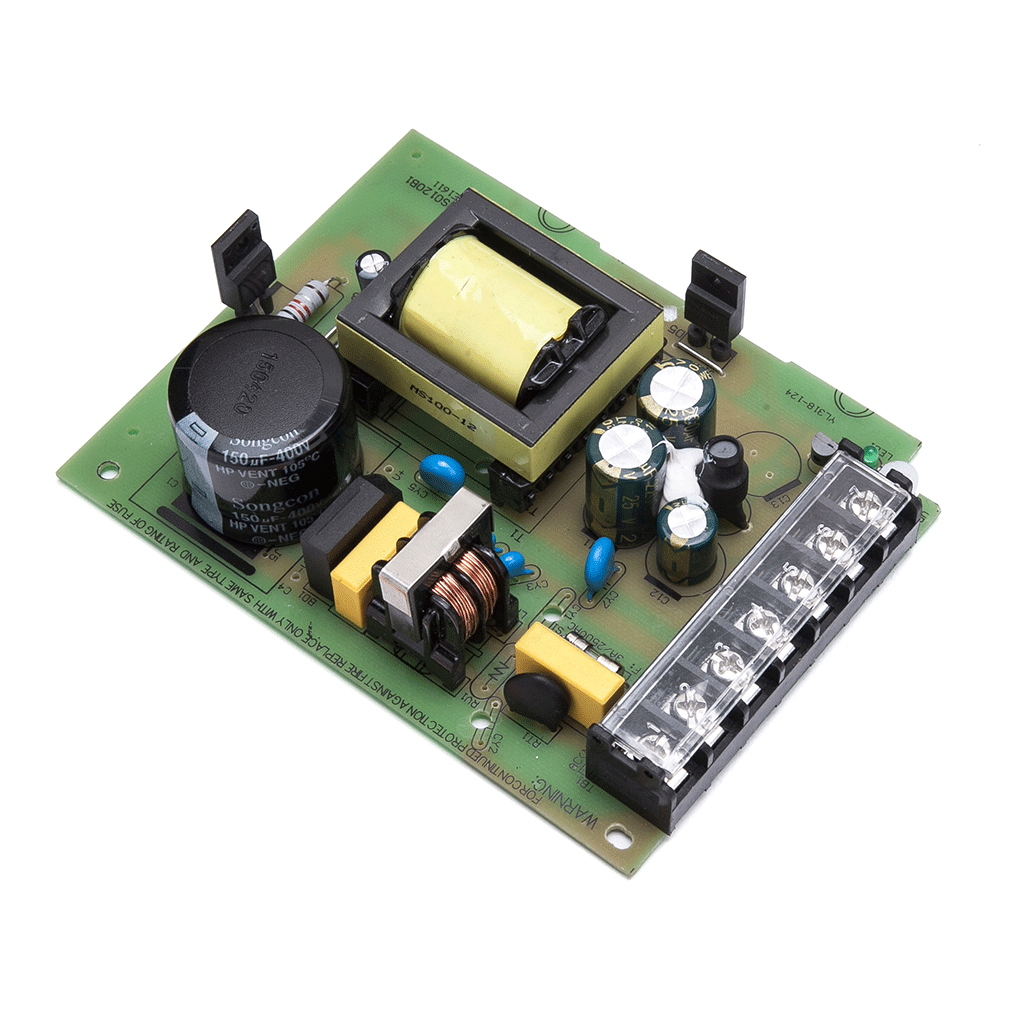

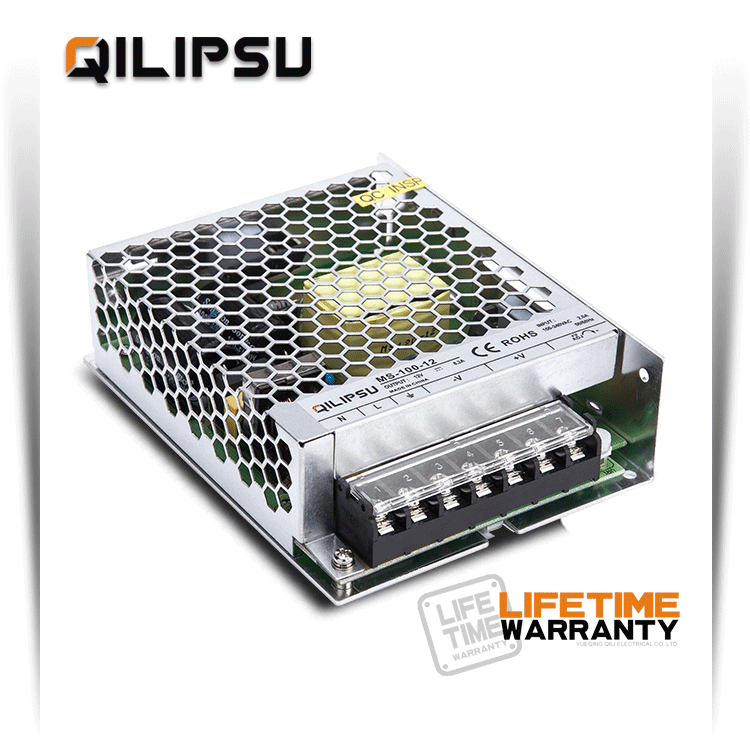

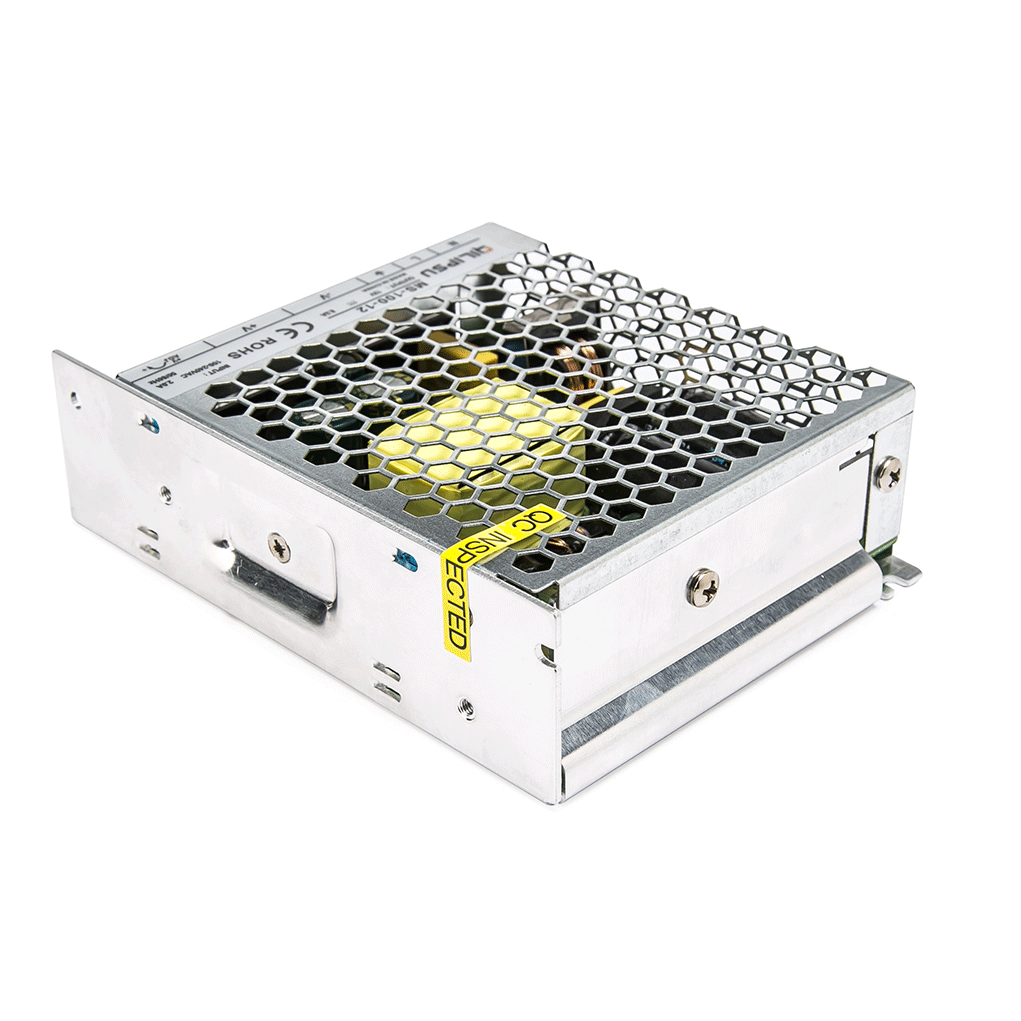

Name:MS-100-12 12V 8.3A 100W MINI POWER SUPPLY
Output Power100W
Output Voltage12V
Output AMP8.3A
AC Input Voltage range100~240VAC 47~63Hz,135~373VDC
WarrantyLifetime Warranty
CertificateCE LVD EMC ROHS
ProtectionOver Load
Product Description

DOWNLOAD










 LIFETIME WARRANTY MINI 12V 8.3A 100W CCTV switching power supply

100W SMPS 220V ac to 12V dc LED power supply



MODEL MS-100-5 MS-100-12 MS-100-24
OUTPUT DC VOLTAGE  5V 12V 24V
VOLTAGE TOLERANCE  ±2% ±2% ±2%
RATED CURRENT 20A 8.3A 4.2A
CURRENT RANGE 0-20A 0~8.3A 0~4.2A
RATED POWER 100W 99.6W 100.8W
RIPPLE & NOISE 150mVp-p 150mVp-p 180mVp-p
DC VOLTAGE ADJ. RANGE ±10% ±10% ±10%
SETUP, RISE, HOLD TIME 800ms, 30ms, 24ms / 230VAC, 1200ms, 30ms, 20ms / 115VAC
INPUT VOLTAGE RANGE 100~240VAC 47~63Hz,135~373VDC
AC CURRENT 2.0A/115VAC 1.0/230VAC
EFFICIENCY   85% 87%
INRUSH CURRENT Cold start 45A/230VAC
LEAKAGE CURRENT <2.0mA/240VAC
PROTECTION OVER LOAD Rated output power110%~135%Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
ENVIRONMENT WORKING TEMP, HUMIDITY -10℃~+50℃;20%~90%RH(Please refer to“derating curve”)
STORAGE TEMP,  HUMIDITY -25℃~+85℃;10%~95%RH Non-condensing
WITHSTAND VIBRATION 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
FIT STANDARD SAFETY STANDARD Compliance to UL1012,UL60950-1,GB4943
EMC STANDARD Compliance to EN55022,EN61000-3-2,CLASSA
OTHERS DIMENSION 129*98*38(L*W*H)
WEIGHT 0.38kg
MTBF 310K hrs min. MIL-HDBK-217F(25℃)
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
