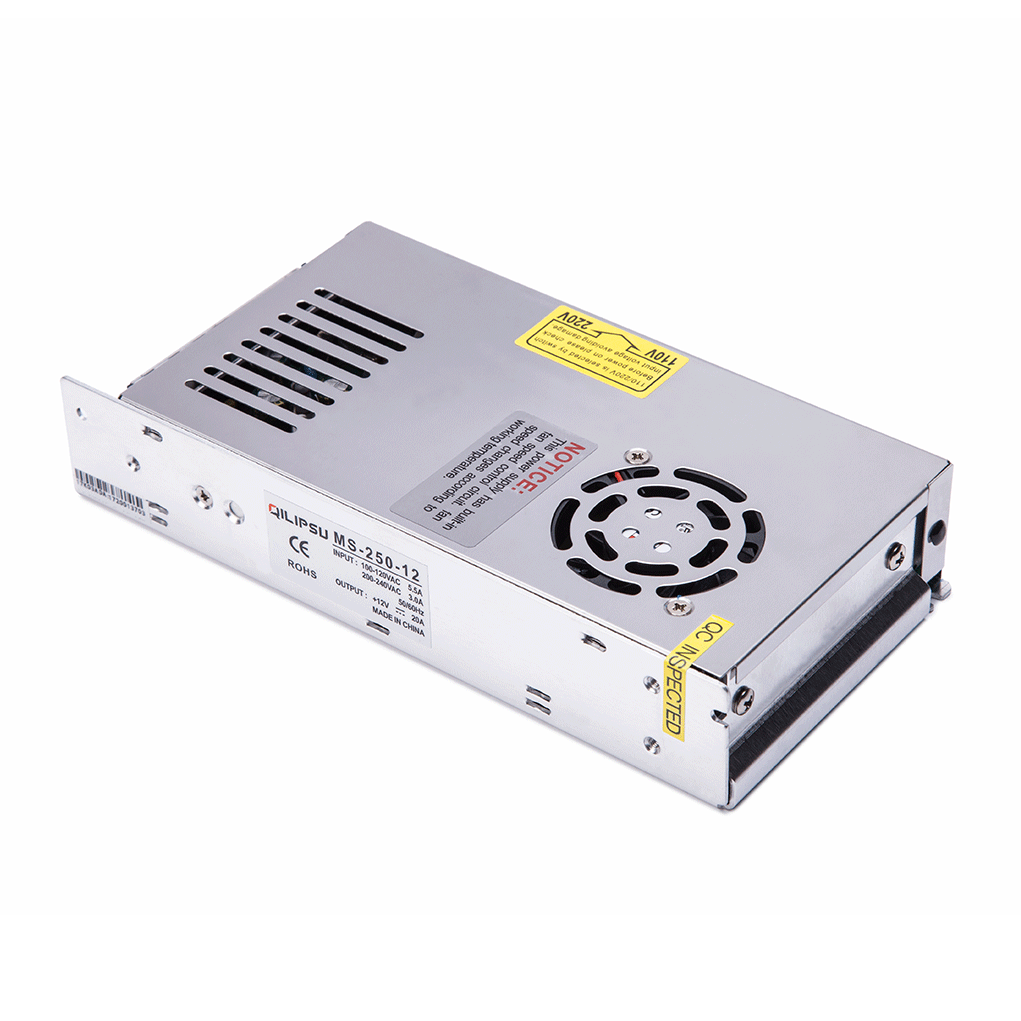

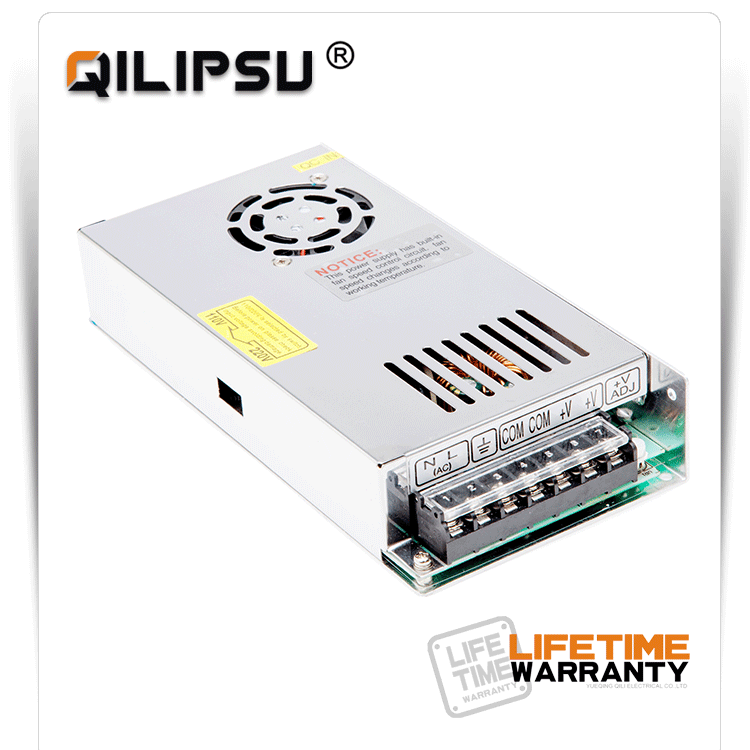

Name:MS-250-12 12V 20A 250W MINI POWER SUPPLY
Output Power250W
Output Voltage12V
Output AMP20A
AC Input Voltage range100~120VAC/200~240VAC(selected by switch) 47~63Hz,
WarrantyLifetime Warranty
CertificateCE LVD EMC ROHS
ProtectionOver Load
Product Description

DOWNLOAD








LIFETIME WARRANTY MINI  CCTV switching power supply

 12V 20A 250W SMPS 220V ac to dc LED power supply





MODEL MS-250-5 MS-250-12 MS-250-24
OUTPUT DC VOLTAGE  5V 12V 24V
VOLTAGE TOLERANCE  ±2% ±2% ±2%
RATED CURRENT 40A 20A 10A
CURRENT RANGE 0-40A 0~20A 0~10A
RATED POWER 200W 240W 240W
RIPPLE & NOISE 180mVp-p 180mVp-p 200mVp-p
DC VOLTAGE ADJ. RANGE ±10% ±10% ±10%
SETUP, RISE, HOLD TIME 600ms,20ms,24ms/230VAC,1000ms,30ms,20ms/115VAC
INPUT VOLTAGE RANGE 100~120VAC/200~240VAC(selected by switch) 47~63Hz,255~373VDC
AC CURRENT 5.5A/115VAC     3.0/230VAC
EFFICIENCY 80% 86% 88%
INRUSH CURRENT Cold start55A/230VAC
LEAKAGE CURRENT <3.5mA/240VAC
PROTECTION OVER LOAD Rated output power110%~135%Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
Over voltage Rated output power115%~135%Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
ENVIRONMENT WORKING TEMP, HUMIDITY -10℃~+50℃;20%~90%RH(Please refer to“derating curve”)
STORAGE TEMP,  HUMIDITY -25℃~+85℃;10%~95%RH Non-condensing
WITHSTAND VIBRATION 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
FIT STANDARD SAFETY STANDARD Compliance to UL1012,UL60950-1,GB4943
EMC STANDARD Compliance to EN55022,EN61000-3-2,CLASSA
OTHERS DIMENSION 199*98*38mm(L*W*H)
WEIGHT 0.66kg
  MTBF 260K hrs min. MIL-HDBK-217F(25℃)
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
