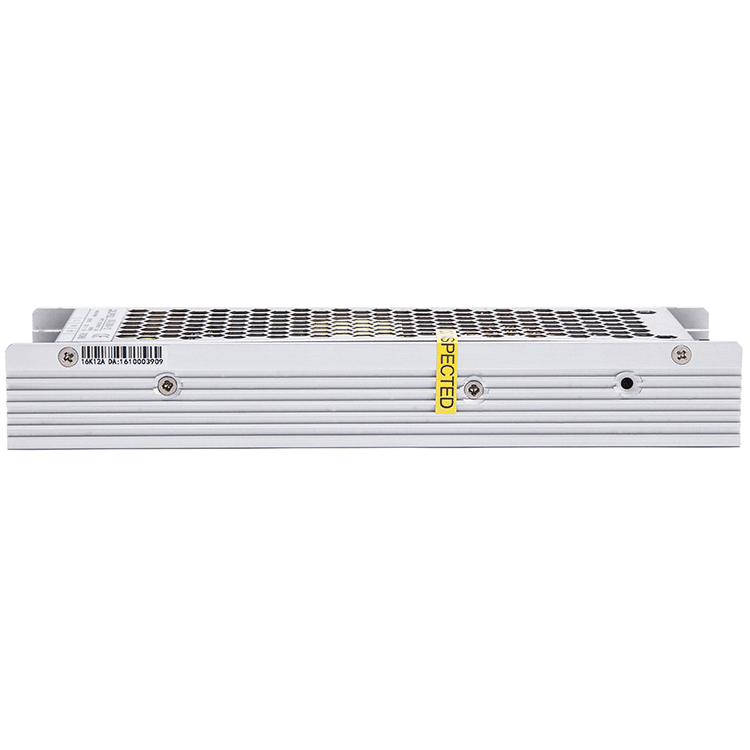

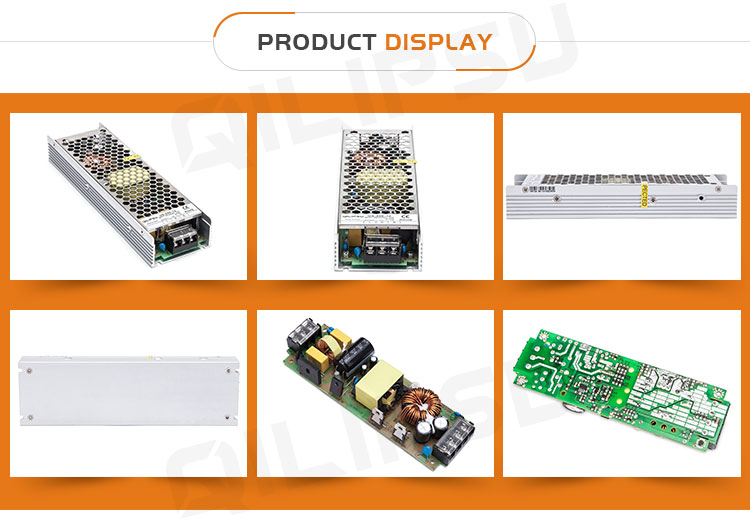

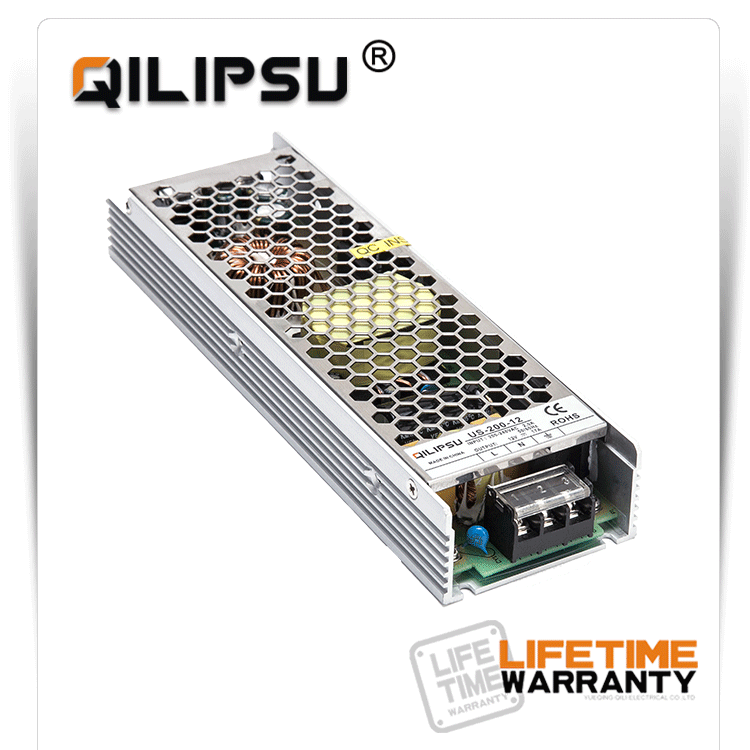

Name:US-200-12 12V 16.5A 200W ULTRA SLIM POWER SUPPLY
Output Power200W
Output Voltage12V
Output AMP16.5A
AC Input Voltage range220VAC 47~63Hz,254~373VDC
WarrantyLifetime Warranty
CertificateCE LVD EMC ROHS
ProtectionOVER LOAD,OVER VOLTAGE
Product Description









LIFETIME WARRANTY ULTRA SLIM 12V 16.5A CCTV switching power supply 200W SMPS 220V ac to 12V dc LED power supply



MODEL US-200-12 US-200-24
OUTPUT DC VOLTAGE  12V 24V
VOLTAGE TOLERANCE  ±2% ±2%
RATED CURRENT 16.5A 8.5A
CURRENT RANGE 0-16.5A 0~8.5A
RATED POWER 198W 204W
RIPPLE & NOISE 180mVp-p 200mVp-p
DC VOLTAGE ADJ. RANGE ±10% ±10%
SETUP, RISE, HOLD TIME 800ms,20ms,24ms/230VAC
INPUT VOLTAGE RANGE 220VAC 47~63Hz,254~373VDC
AC CURRENT 2.5A/230VAC
EFFICIENCY 87% 90%
INRUSH CURRENT Cold start  45A/230VAC
LEAKAGE CURRENT <2.0mA/240VAC
PROTECTION OVER LOAD Rated output power110%~150%Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
ENVIRONMENT WORKING TEMP, HUMIDITY -20℃~+50℃;20%~90%RH(Please refer to“derating curve”)
STORAGE TEMP,  HUMIDITY -40℃~+85℃;10%~95%RH Non-condensing
WITHSTAND VIBRATION 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY WITHSTAND VOLTAGE I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC
FIT STANDARD SAFETY STANDARD Compliance to UL1012,UL60950-1,GB4943
EMC STANDARD Compliance to EN55022,EN61000-3-2,CLASSA

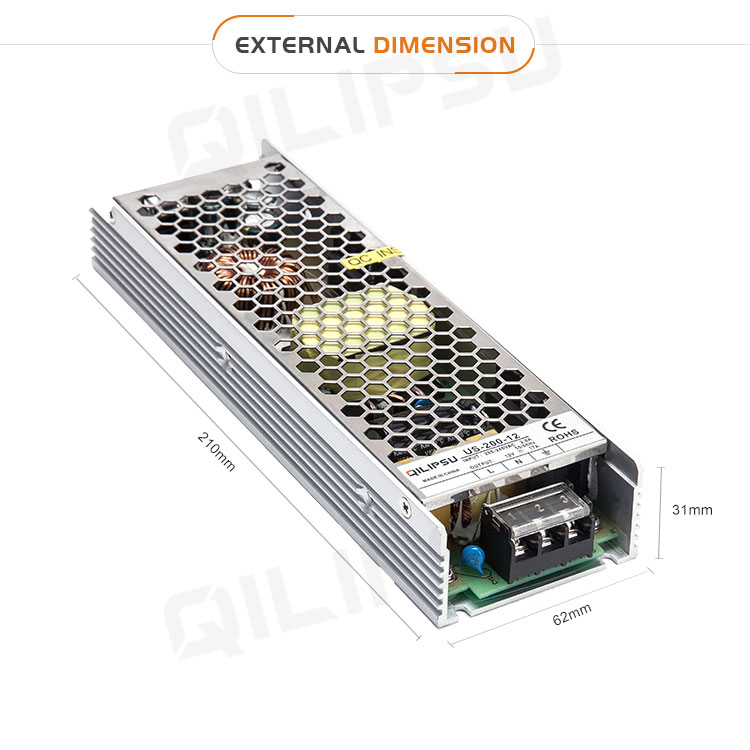

OTHERS DIMENSION 210*62*31mm(L*W*H)
WEIGHT 0.4kg
MTBF 230K hrs min. MIL-HDBK-217F(25℃)
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
