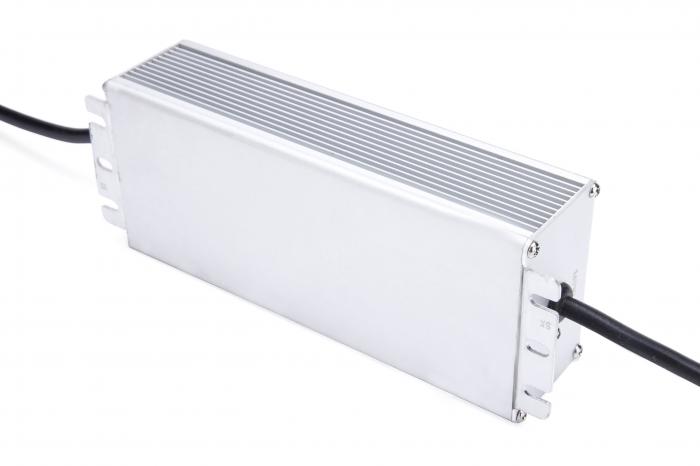

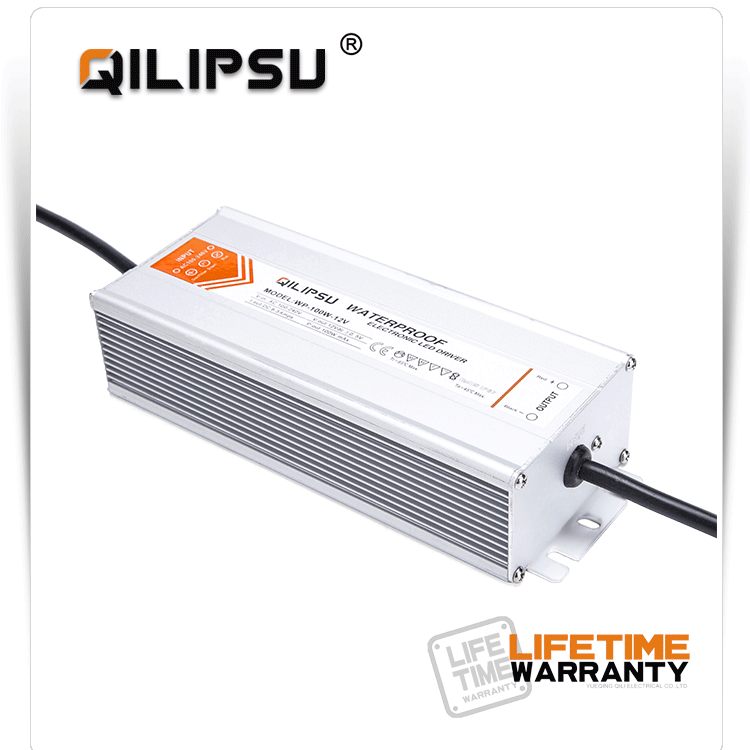

Name:WP-100-12 12V 8.5A 100W LED DRIVER IP67
Output Power100W
Output Voltage12V
Output AMP8.5A
AC Input Voltage range90~265VAC 47~63Hz
Waterproof degreeIP67
Warrantylifetime
CertificateCE LVD EMC ROHS
Product Description











LIFETIME WARRANTY constant voltage 220v ac to dc IP67 12v 8.5a

100w waterproof LED driver



MODEL WP-100-12 WP-100-24
OUTPUT DC VOLTAGE  12V 24V
VOLTAGE TOLERANCE  ±3% ±2%
RATED CURRENT 8.5A 4.2A
CURRENT RANGE 0-8.5A 0~4.2A
RATED POWER 102W 100.8W
RIPPLE & NOISE 100mVp-p 150mVp-p
SETUP, RISE, HOLD TIME 800ms,30ms,24ms/230VAC
INPUT VOLTAGE RANGE 100~240VAC 47~63Hz,126~373VDC
AC CURRENT 2.4A/115VAC     1.2A/230VAC
EFFICIENCY 83% 85%
INRUSH CURRENT Cold start 40A/230VAC
LEAKAGE CURRENT <2mA/240VAC
PROTECTION OVER LOAD Rated output power115%~135%Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
Over voltage 15.8~18V 30.6~33.6V
Protection type:hiccup mode,auto-recovery after fault condition is removed
Over temperature Case  temp≥85℃±5℃,Start over temp protection
Protection mode:cutoff output,auto-recovery after temperature become normal
ENVIRONMENT WORKING TEMP, HUMIDITY -20℃~+60℃;20%~90%RH(Please refer to“derating curve”)
STORAGE TEMP,  HUMIDITY -40℃~+85℃;10%~95%RH Non-condensing
WITHSTAND VIBRATION 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY WITHSTAND VOLTAGE I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC
FIT STANDARD SAFETY STANDARD Fit UL1012,TUV EN60950-1,  IP67
EMC STANDARD Fit EN55022,EN55024,CLASSA

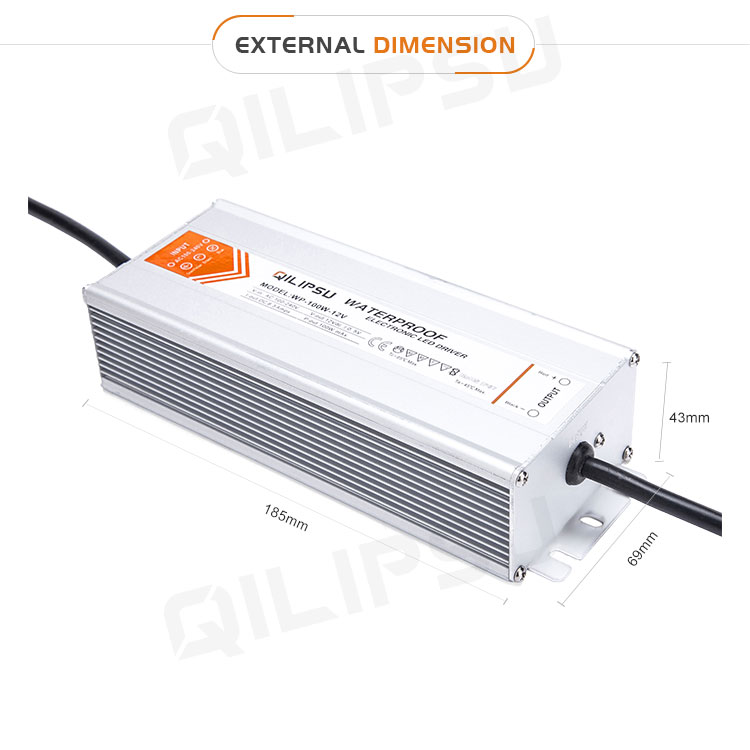

OTHERS DIMENSION 185*69*43mm(L*W*H)
WEIGHT 0.85kg
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
