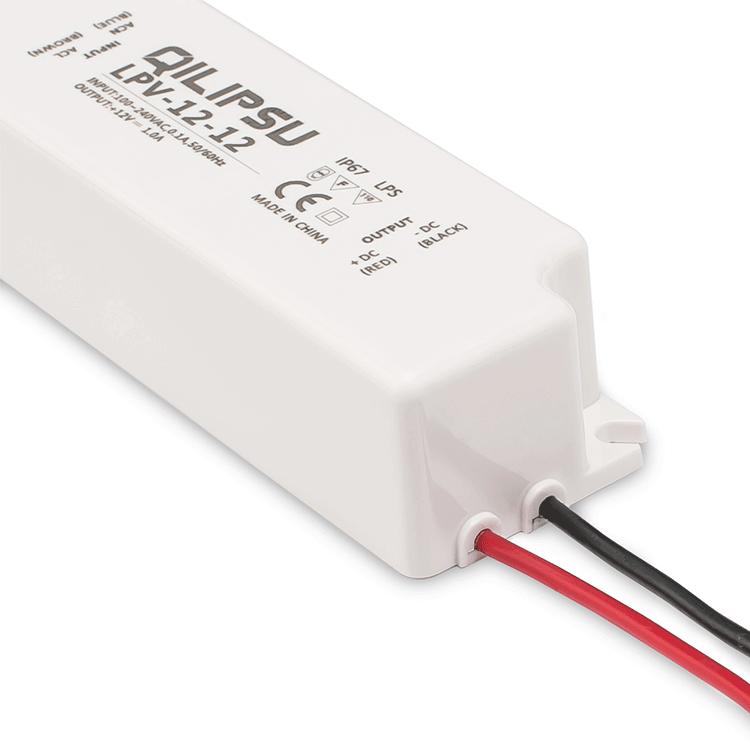

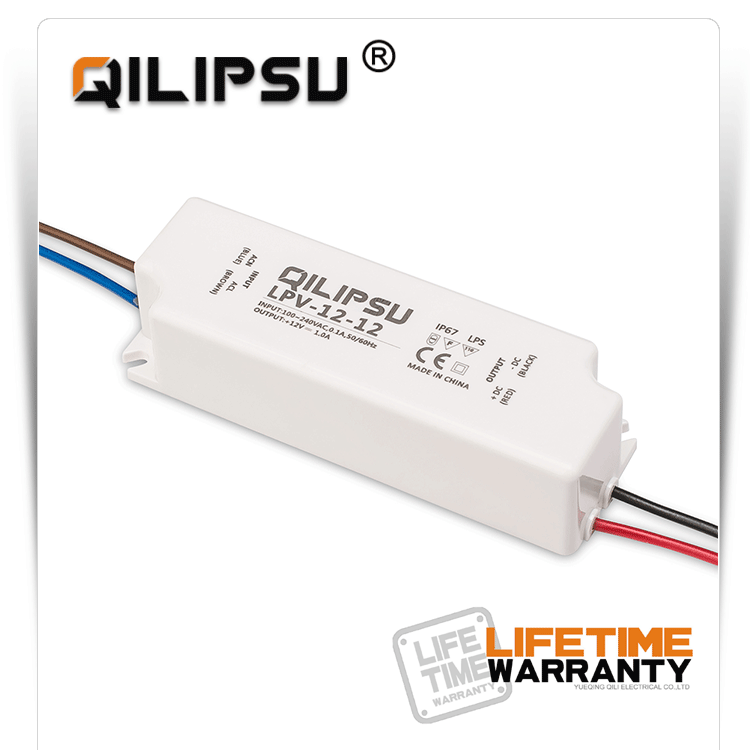

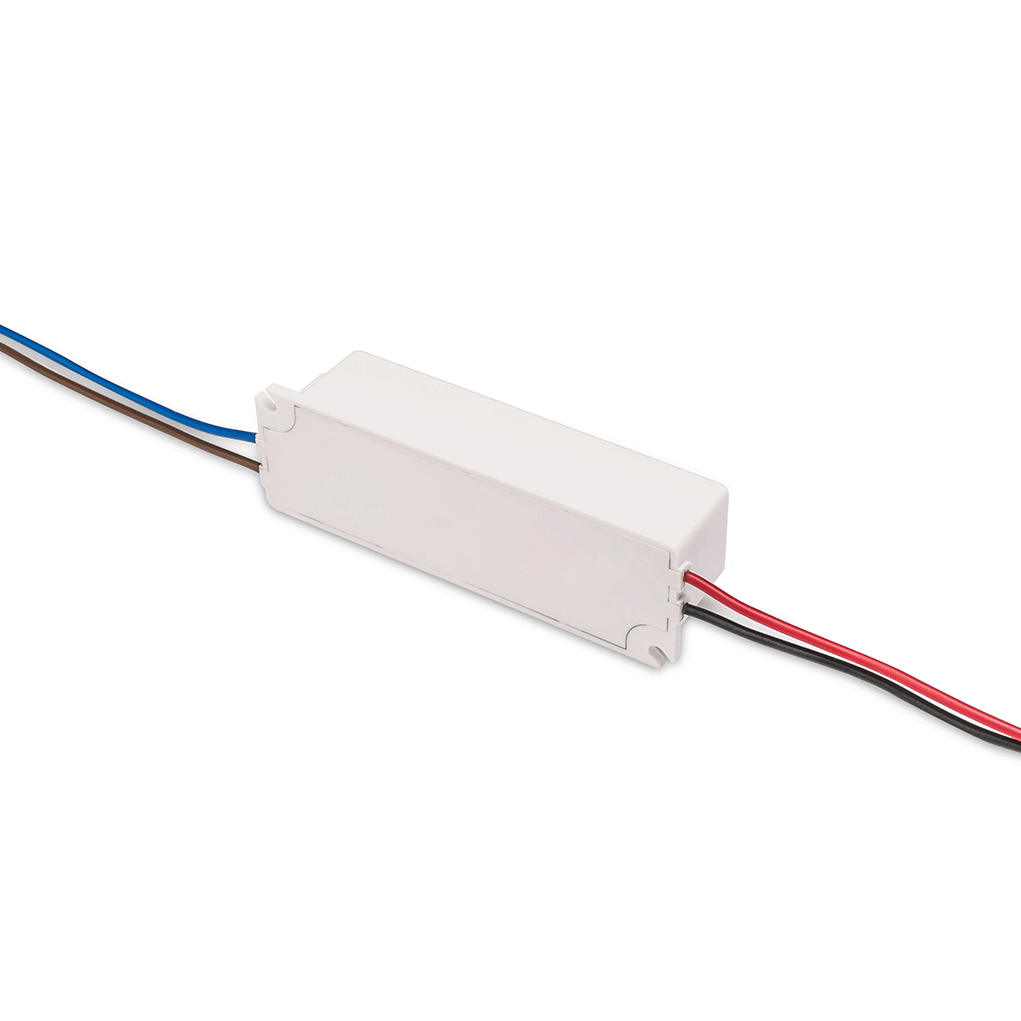

Name:LPV-12-12 12V 1A 12W Plastic LED driver IP67
Output Power12W
Output Voltage12V
Output AMP1A
AC Input Voltage range100~240VAC 47~63Hz,135~373VDC
Waterproof degreeIP67
WarrantyLifetime Warramty
CertificateCE LVD EMC ROHS
Product Description






12V 1A 12W  LIFETIME WARRANTY plastic IP67 110V/220V ac to dc waterproof LED driver





MODEL LPV-12-12 LPV-12-24
OUTPUT DC VOLTAGE  12V 24V
RATED CURRENT 1A 0.5A
CURRENT RANGE 0-1A 0~0.5A
RATED POWER 12W 12W
RIPPLE & NOISE 150mVp-p 150mVp-p
VOLTAGE TOLERANCE ±3.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.0%
SETUP, RISE, TIME 800ms,20ms/110&230VAC at full load
HOLD UP TIME 24ms/110&230VAC at full load
INPUT VOLTAGE RANGE 100~240VAC 47~63Hz,135~373VDC
AC CURRENT  0.3A/115VAC   0.15A/230VAC
EFFICIENCY 82% 83%
INRUSH CURRENT Cold start  30A/230VAC  (twidth=150μs measured at 50% Ipeak)
LEAKAGE CURRENT <0.2mA/240VAC
PROTECTION OVER LOAD 135%-175% rated output power  Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
Over temperature When temperature of transistor inner node is over 150℃±10℃,Start over temp protection
Protection type:cutoff output,recovers automatically after temperature  goes down
ENVIRONMENT WORKING TEMP, HUMIDITY -30℃~+60℃;20%~90%RH(Please refer to“derating curve”)
STORAGE TEMP,  HUMIDITY -40℃~+80℃;10%~95%RH Non-condensing
WITHSTAND VIBRATION 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY&EMC SAFETY STANDARD TUV EN60950-1,TUV EN61347-2-13,IP67 approved;design refer to UL 1310 Class 2,CAN/CSA No.223-M91
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms/500VDC/25℃/70%RH
EMC EMISSION Compliance to EN55022(CISPR22)Class B,EN61000-3-2 Class A,EN61000-3-3
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level,criteria A
OTHERS MTBF 1300K hrs min.         MIL-HDBK-217F(25℃)
DIMENSION 97*30*22mm(L*W*H)
WEIGHT 0.113kg
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
