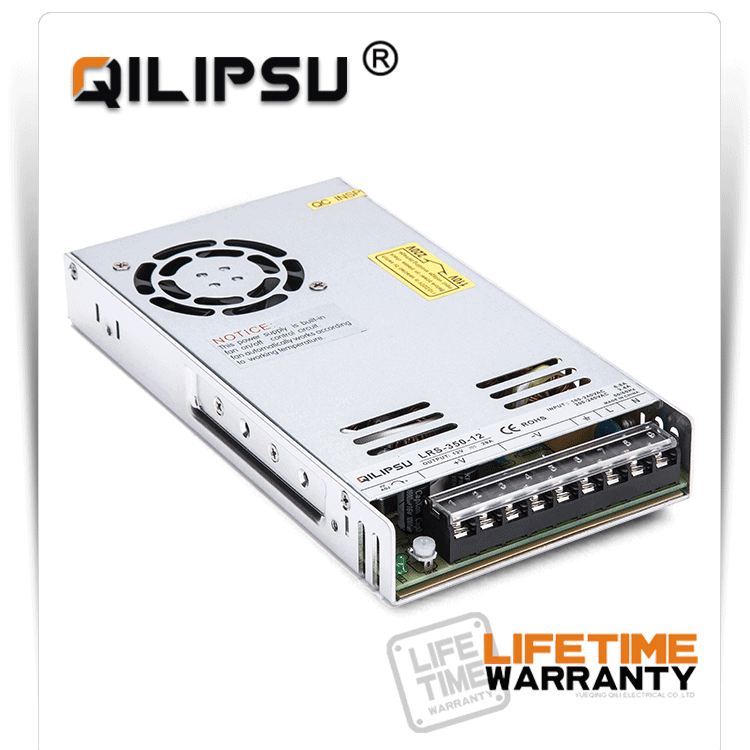

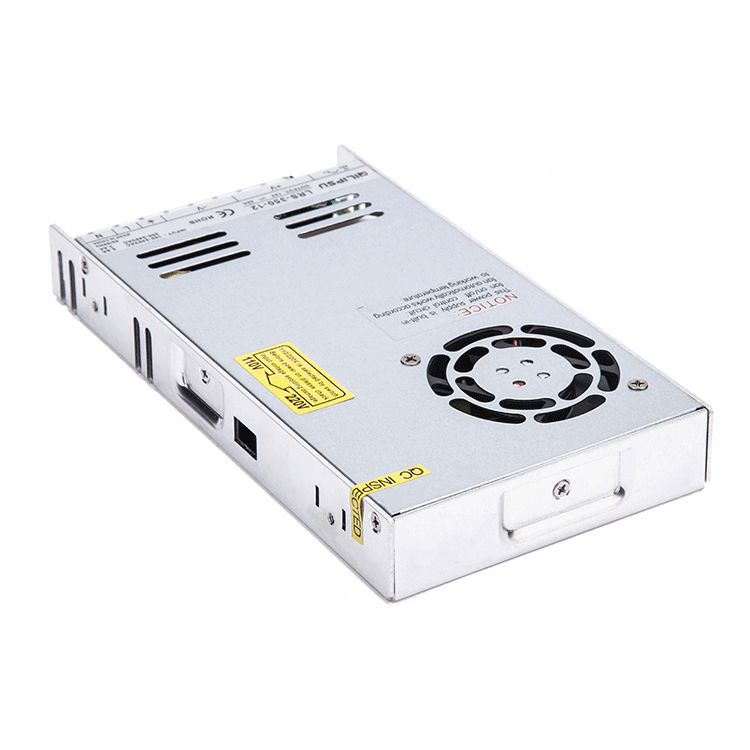

Name:LRS-350-24 24V 14.6A 350W LRS POWER SUPPLY
Output Power350W
Output Voltage24V
Output AMP14.6A
AC Input Voltage range90~132VAC/180~264VAC(selected by switch) ,240~373VDC
WarrantyLifetime Warranty
CertificateCE LVD EMC ROHS
ProtectionOVER LOAD,OVER VOLTAGE
Product Description









LIFETIME WARRANTY LRS series CCTV switching power supply

 350W 24V 14.6A SMPS  ac to  dc LED power supply



MODEL LRS-350-5 LRS-350-12 LRS-350-24
OUTPUT DC VOLTAGE  5V 12V 24V
RATED CURRENT 60A 29A 14.6A
CURRENT RANGE 0-60A 0~29A 0~14.6A
RATED POWER 300W 348W 350.4W
RIPPLE & NOISE 150mVp-p 150mVp-p 150mVp-p
DC VOLTAGE ADJ. RANGE ±10% ±10% ±10%
VOLTAGE TOLERANCE ±3% ±2% ±1%
LINE REGULATION ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±2% ±1% ±0.5%
SETUP, RISE, HOLD TIME 800ms,50ms,16ms/230VAC(full load)
INPUT VOLTAGE RANGE 90~132VAC/180~264VAC(selected by switch) ,240~373VDC( Withstand 300VAC surge input for 5 second)
FREQUENCY RANGE 47~63Hz
AC CURRENT 6.8A/115VAC 3.4A/230VAC
EFFICIENCY 83% 85% 88%
INRUSH CURRENT Cold start55A/230VAC
LEAKAGE CURRENT <2mA/240VAC
PROTECTION OVER LOAD Rated output power110%~140% Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
OVER VOLTAGE Rated output power115%~135% Start over voltage protection
Protection type:cut off the output,auto-recovery after fault condition is removed
OVER TEMPERATURE 100℃±10℃(RTH3 detect beside magnetic core)
Protection type:cut off the output,auto-recovery after the temperature become normal
ENVIRONMENT WORKING TEMPERATURE -25℃~+70℃(Please refer to“derating curve”)
WORKING HUMIDITY 20%~90%RH Non-condensing
STORAGE TEMP,  HUMIDITY -40℃~+85℃;10%~95%RH Non-condensing
WITHSTAND VIBRATION 10~500Hz,3G 10min./1Cycle,Period for 60min,Each axes
SAFETY WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25℃/70%RH
FIT STANDARD SAFETY STANDARD Compliance to UL60950-1,TUV EN60950-1,GB4973
EMC STANDARD Compliance to EN55022(CISPR22)Class B,GB9254 Class B,EN55014,EN61000-3-2,3
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024,EN61000-6-1
OTHERS DIMENSION 215*115*30(L*W*H)
WEIGHT 0.76kg
MTBF ≥295K hrs min. MIL-HDBK-217F(25℃)
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
