Name:MS-200-5 5V 30A 200W MINI POWER SUPPLY
Output Power200W
Output Voltage5V
Output AMP30A
AC Input Voltage range100~120VAC/200~240VAC(Selected by switch) 47~63Hz,255~373VDC
WarrantyLifetime Warranty
CertificateCE LVD EMC ROHS
ProtectionOver Load
Product Description

DOWNLOAD








 LIFETIME WARRANTY MINI 5V 30A CCTV switching power supply

200W SMPS 220V ac to 5V dc LED power supply





MODEL MS-200-5 MS-200-12 MS-200-24
OUTPUT DC VOLTAGE  5V 12V 24V
VOLTAGE TOLERANCE  ±1% ±1% ±1%
RATED CURRENT 30A 16.6A 8.3A
CURRENT RANGE 0-30A 0~16.6A 0~8.3A
RATED POWER 150W 199.2W 199.2W
RIPPLE & NOISE 150mVp-p 180mVp-p 200mVp-p
DC VOLTAGE ADJ. RANGE ±10% ±10% ±10%
SETUP, RISE, HOLD TIME 1000ms,100ms,30ms/230VAC.
INPUT VOLTAGE RANGE 100~120VAC/200~240VAC(Selected by switch) 47~63Hz,255~373VDC
AC CURRENT 4.0A/115V  2.0A/230VAC
EFFICIENCY 80% 83% 85%
INRUSH CURRENT Cold start 18A/115V  36A/230VAC
LEAKAGE CURRENT <3.5mA/240VAC
PROTECTION OVER LOAD Rated output power115%~150%Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
Over voltage Rated output power115%~135%Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
Over temperature ≥85℃±5℃(TSW1detect on heatsink of power transistor)
Protection mode:cutoff output,auto-recovery after temperature become normal
ENVIRONMENT WORKING TEMP, HUMIDITY -10℃~+60℃;20%~90%RH(Please refer to“derating curve”)
STORAGE TEMP,  HUMIDITY -20℃~+85℃;10%~95%RH Non-condensing
WITHSTAND VIBRATION 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
FIT STANDARD SAFETY STANDARD Fit UL1012
EMC STANDARD Fit EN55022,CLASSA

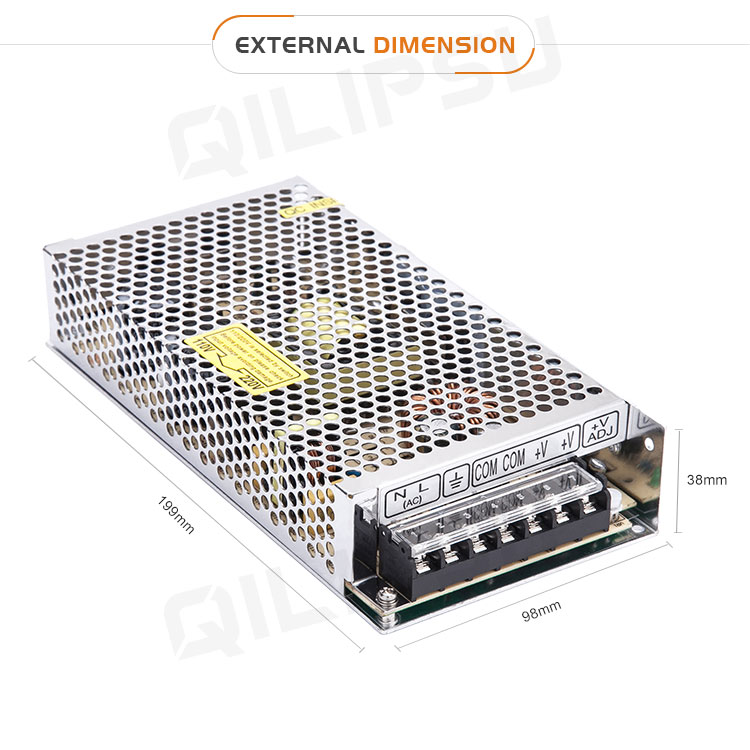

OTHERS DIMENSION 199*98*38mm(L*W*H)
WEIGHT 0.6kg
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
