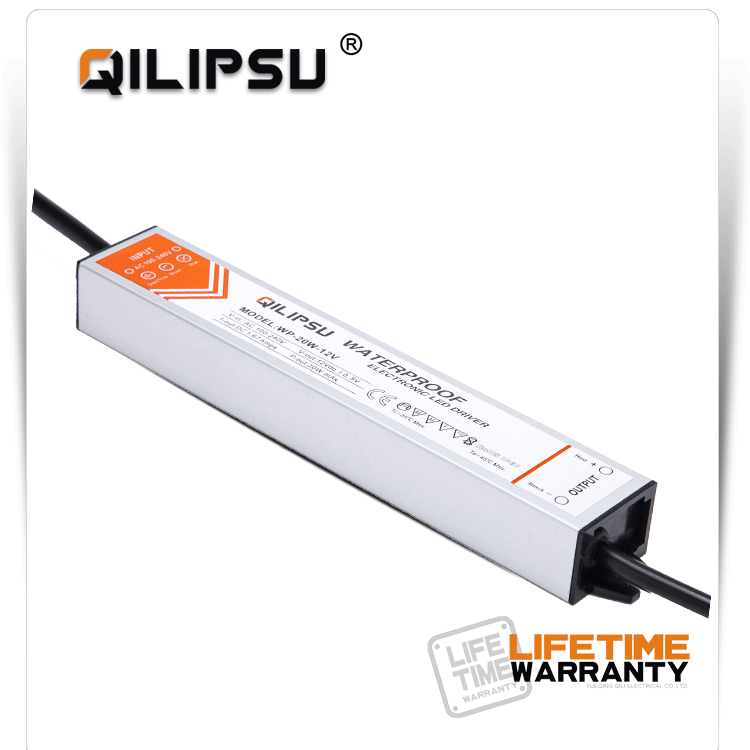

Name:WP-20-12 12V 1.7A 20W LED DRIVER IP67
Output Power20W
Output Voltage12V
Output AMP1.7A
AC Input Voltage range90~265VAC 47~63Hz
Waterproof degreeIP67
WarrantyLifetime Warramty
CertificateCE LVD EMC ROHS
Product Description






LIFETIME WARRANTY constant voltage 220v ac to dc IP67

12v 1.7a 20w waterproof LED driver

MODEL WP-20-12 WP-20-24
OUTPUT DC VOLTAGE  12V 24V
VOLTAGE TOLERANCE  ±3% ±2%
RATED CURRENT 1.7A 0.85A
CURRENT RANGE 0-1.7A 0~0.85A
RATED POWER 20.4W 20.4W
RIPPLE & NOISE 100mVp-p 100mVp-p
SETUP, RISE, HOLD TIME 800ms,20ms,24ms/230VAC
INPUT VOLTAGE RANGE 90~265VAC 47~63Hz
AC CURRENT 0.28A/230VAC
EFFICIENCY 81% 82%
INRUSH CURRENT Cold start  30A/230VAC
LEAKAGE CURRENT <0.5mA/240VAC
PROTECTION OVER LOAD Rated output power135%~175%Start overload protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
Over temperature When temperature of transistor inner node is over 150℃±10℃,Start over temp protection
Protection mode:cutoff output,auto-recovery after temperature become normal
ENVIRONMENT WORKING TEMP, HUMIDITY -10℃~+50℃;20%~90%RH(Please refer to“derating curve”)
STORAGE TEMP,  HUMIDITY -40℃~+85℃;10%~95%RH Non-condensing
WITHSTAND VIBRATION 10~500Hz,2G 10min./1Cycle,Period for 60min,Each axes
SAFETY WITHSTAND VOLTAGE I/P-O/P:1.5KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms/500VDC
FIT STANDARD SAFETY STANDARD Fit UL1012,TUV EN60950-1,  IP67
EMC STANDARD Fit EN55022,EN55024,CLASSA

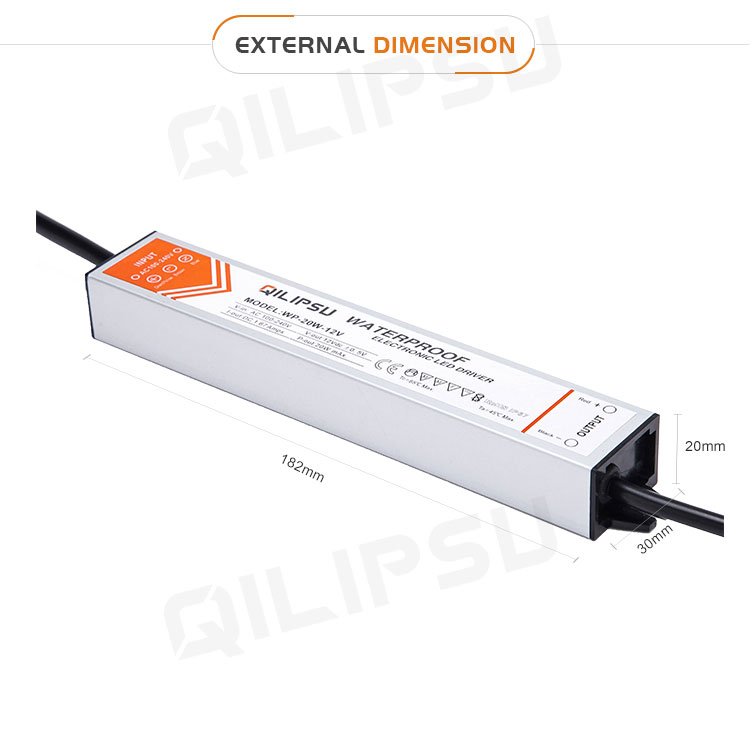

OTHERS DIMENSION 182*30*20mm(L*W*H)
WEIGHT 0.21kg
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

#NAME?
